Automatic Transaxle Cross-Sectional View
Automatic Transaxle Cross-Sectional View
AUTOMATIC TRANSAXLE CROSS-SECTIONAL VIEW

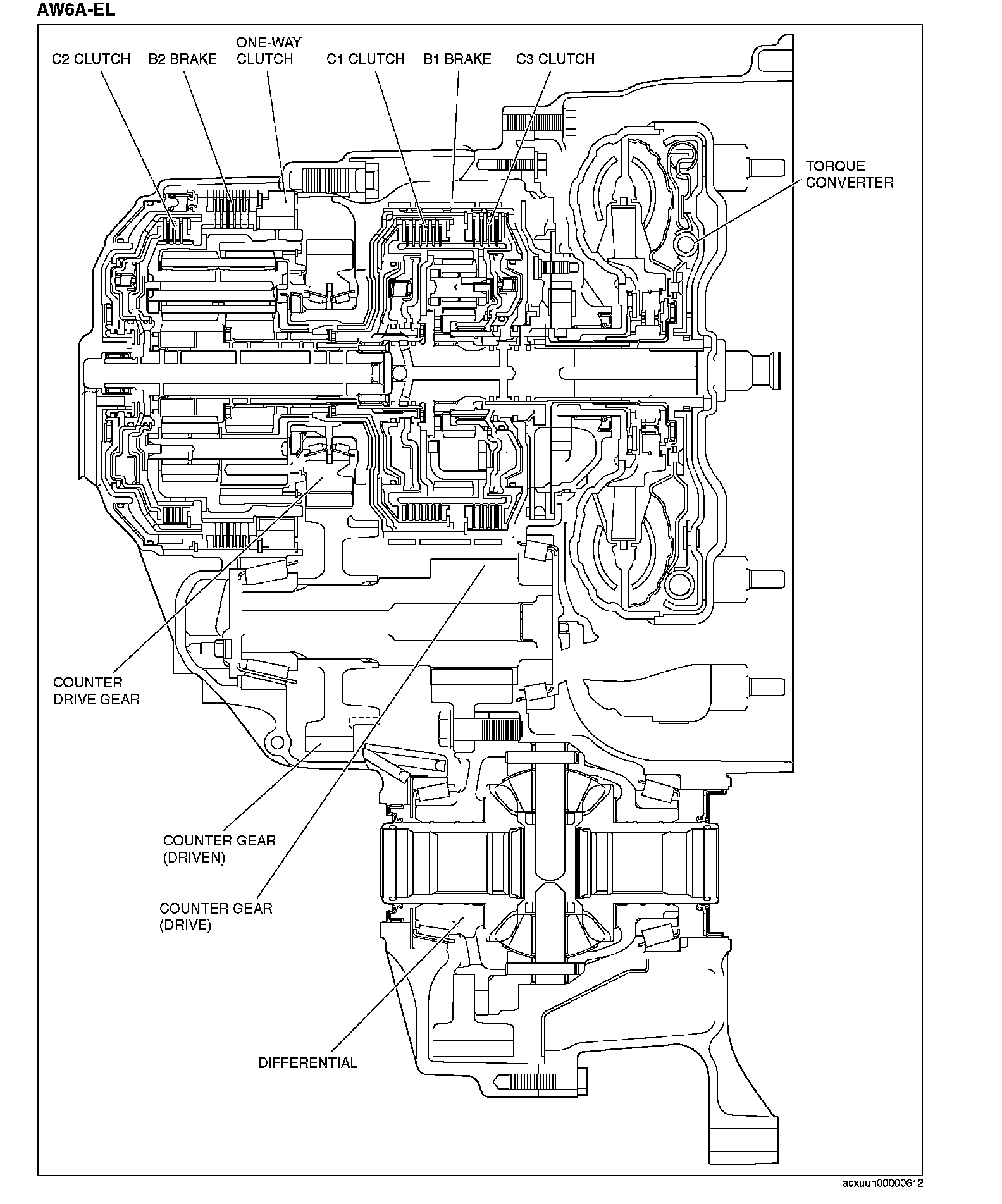

AW6A-EL
AW6A-EL:

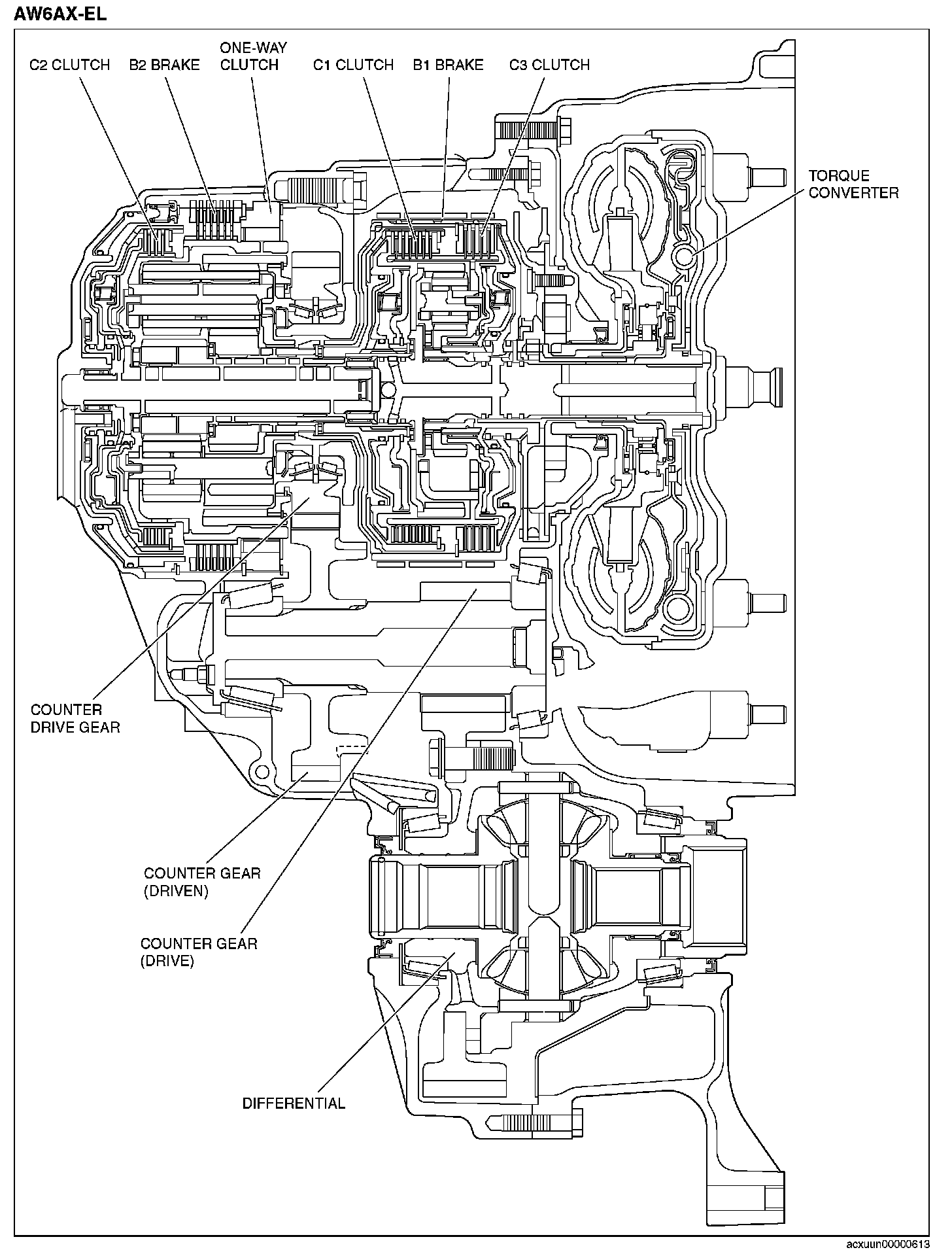

AW6AX-EL
AW6AX-EL:
