Pinout Values and Diagnostic Parameters




AWD CONTROL MODULE INSPECTION

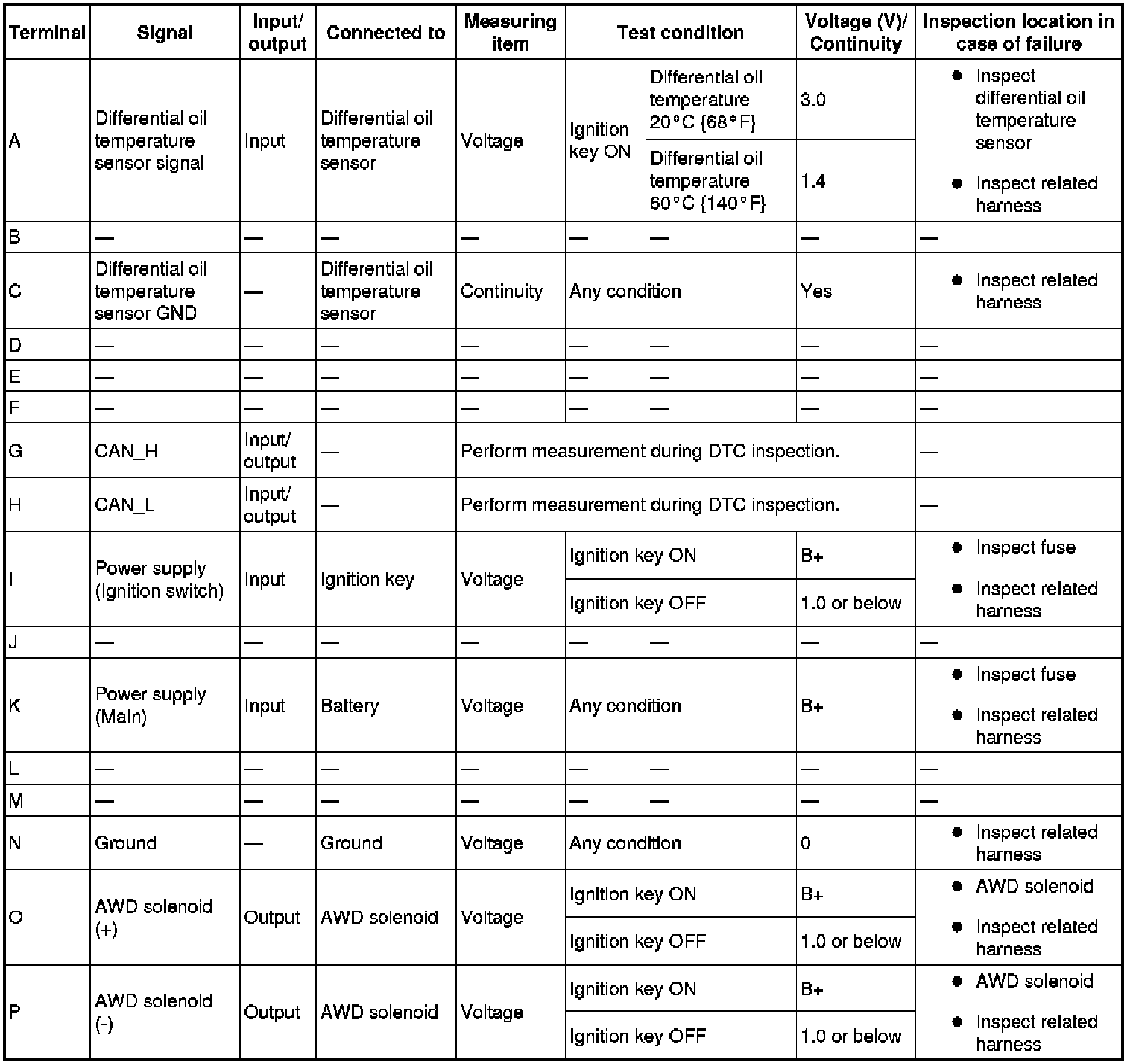

Terminal Voltage List (Reference)






Terminal Voltage List (Reference):
