Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda Truck
>>
2010
>>
CX-7 AWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
DTC Table on-Board Diagnosis
DTC Table on-Board Diagnosis
ON-BOARD DIAGNOSIS

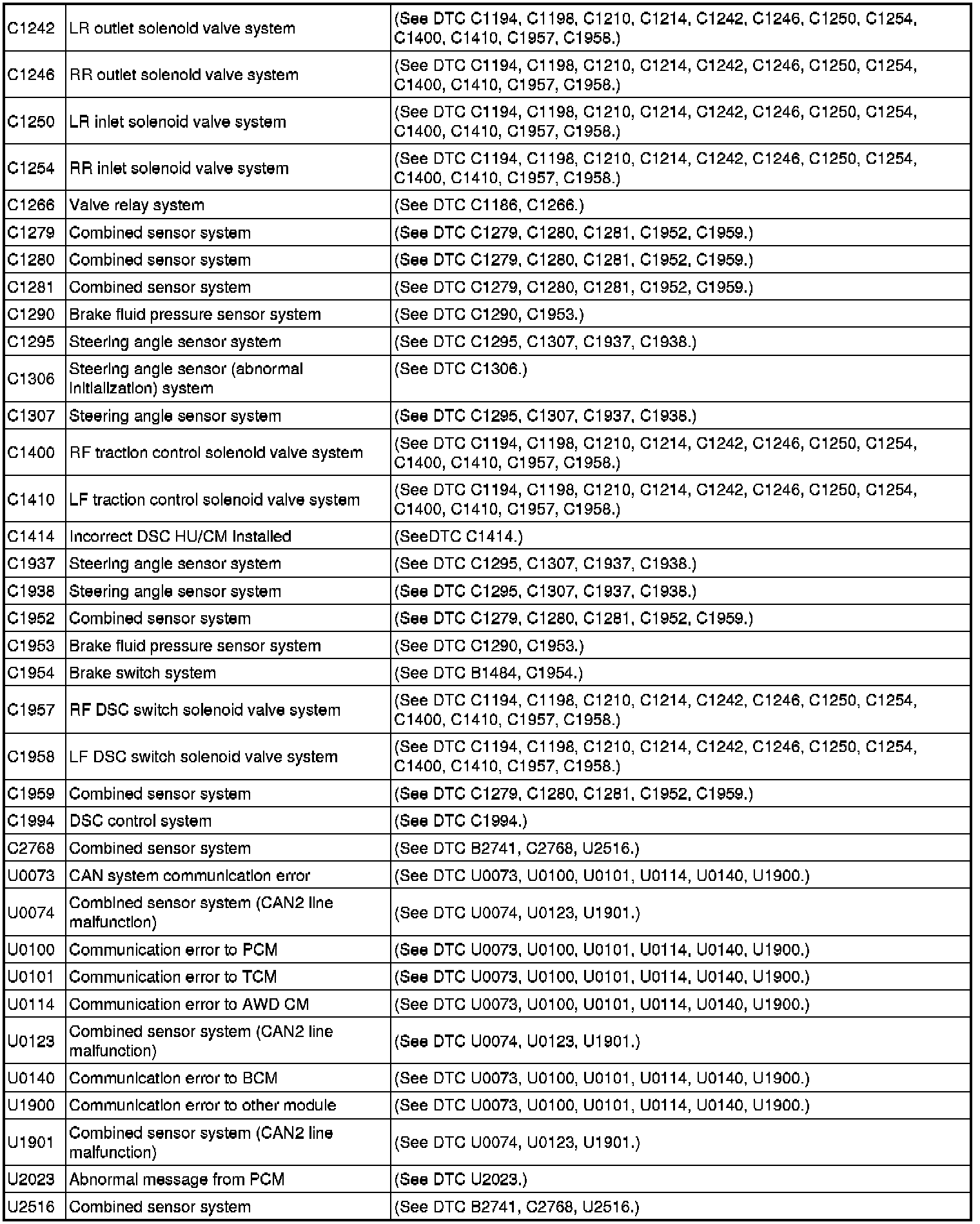

DTC Table
B1317-B2741 / C1095-C1236:
C1242-C1994 / U0073-U2516:
