DTC 23:ER03




DTC: B1238:49, 23:Er03 [AUDIO]

Detection Condition:

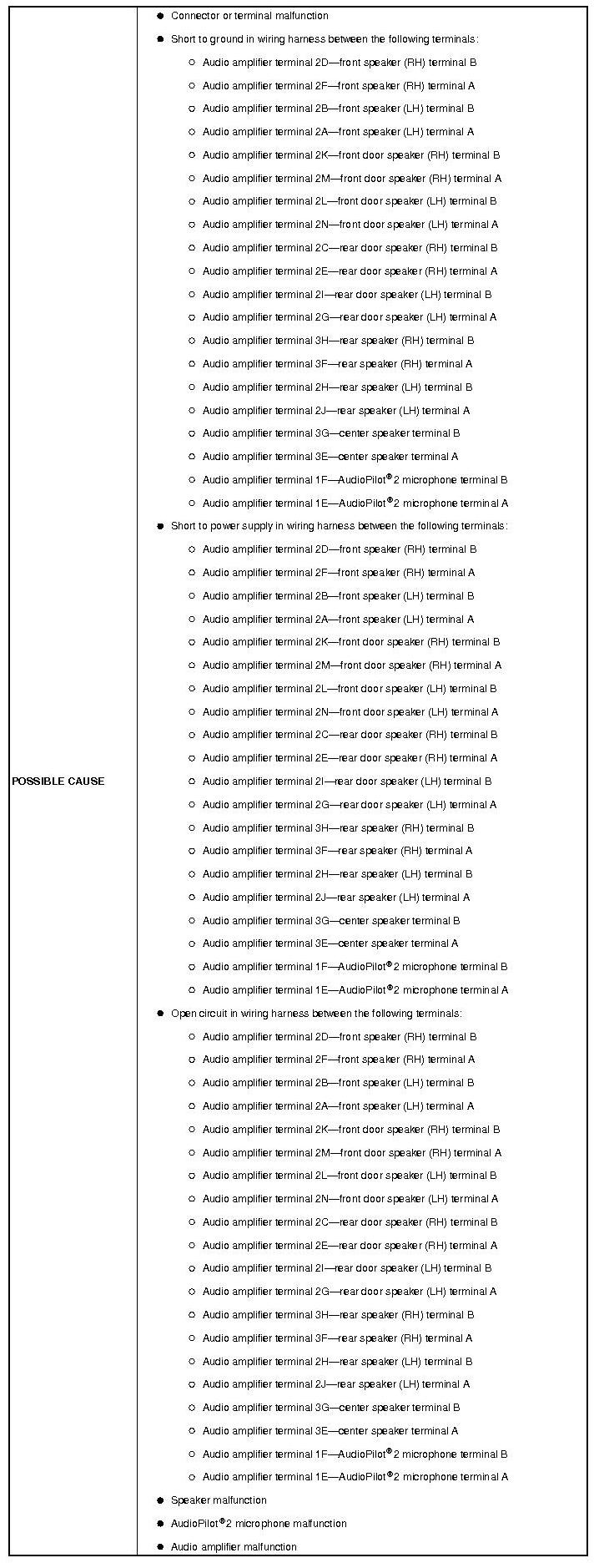

Possible Cause:









Diagnostic Procedure

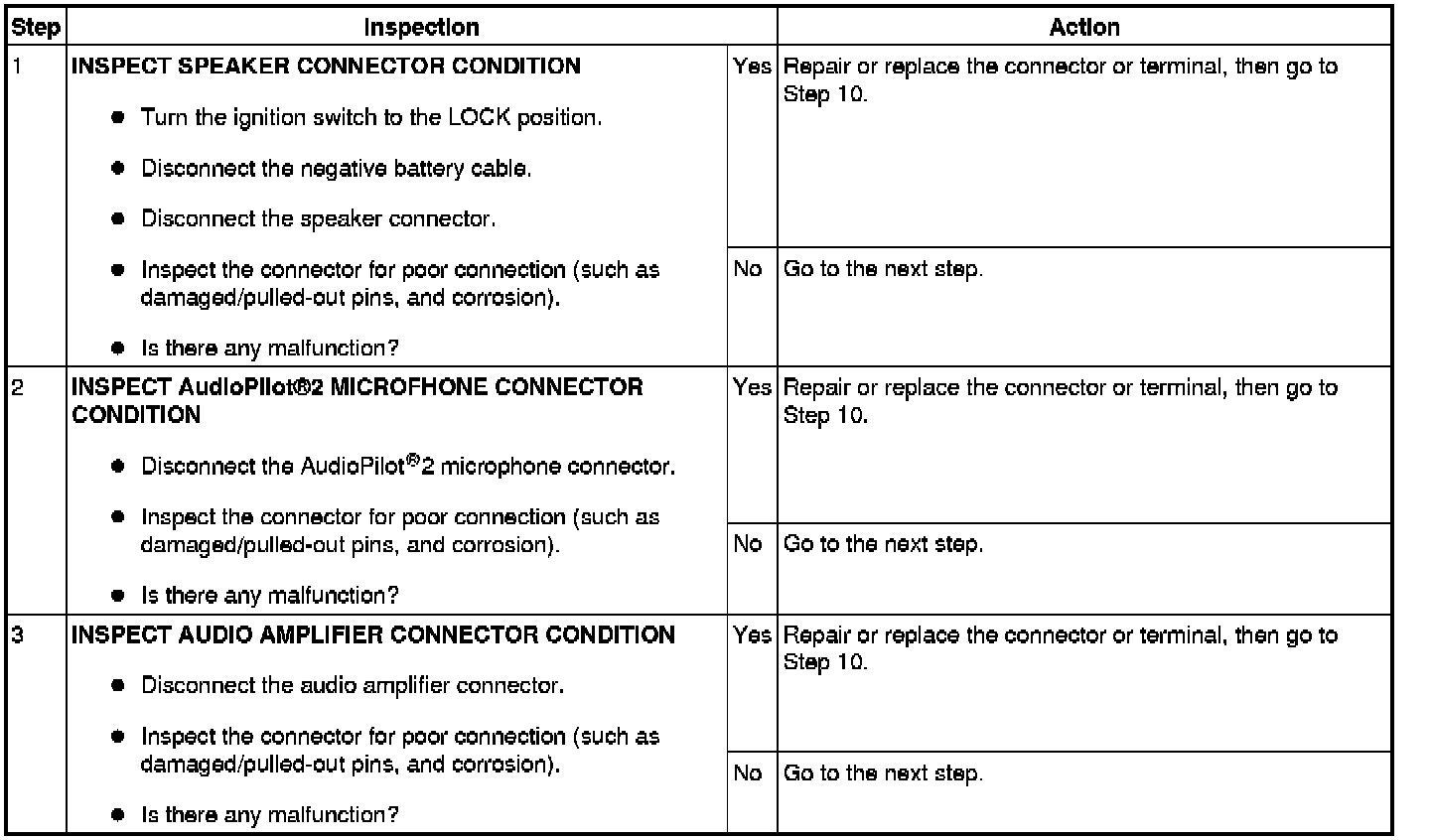

Step 1-Step 3:





Step 4:

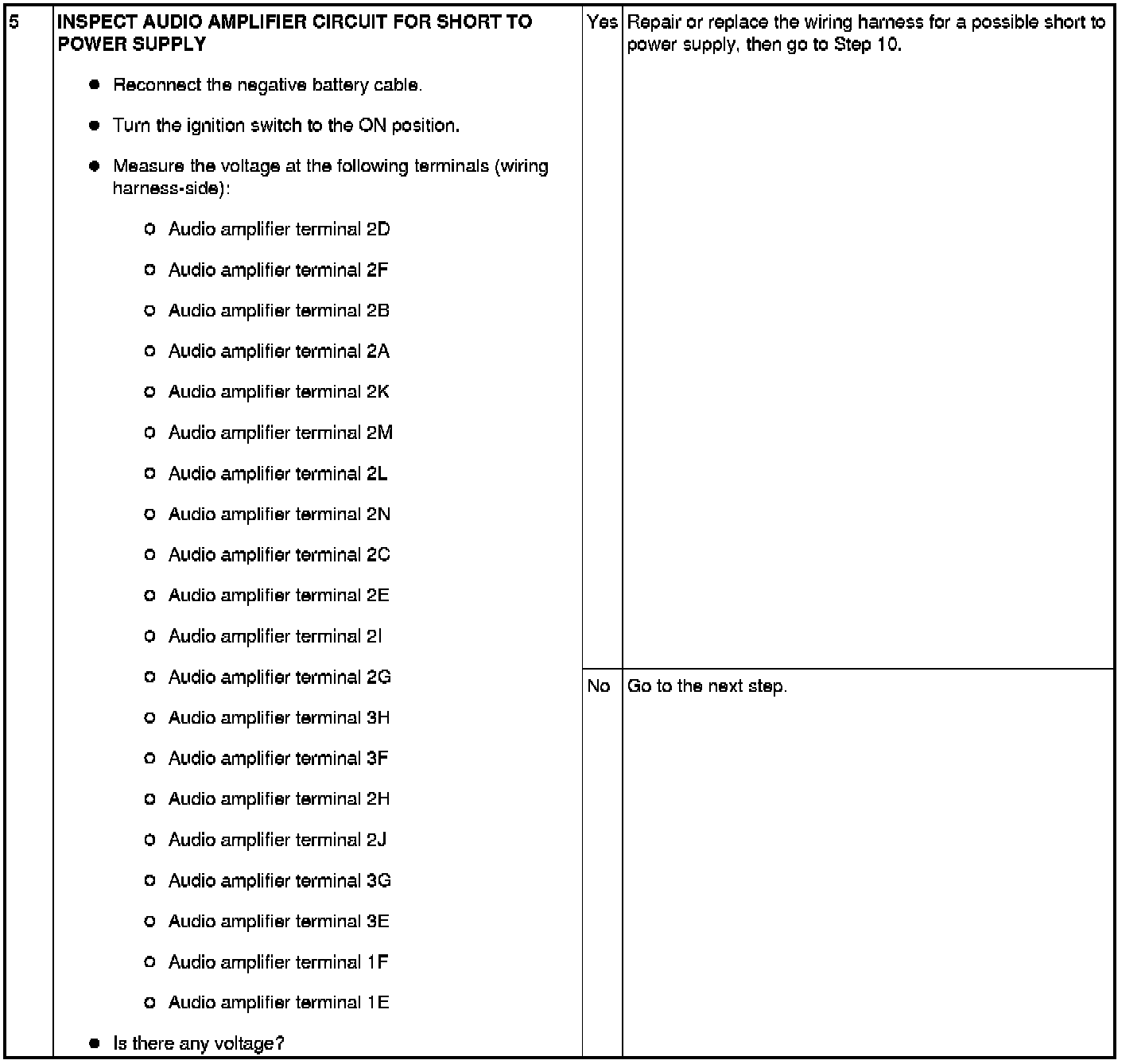

Step 5:

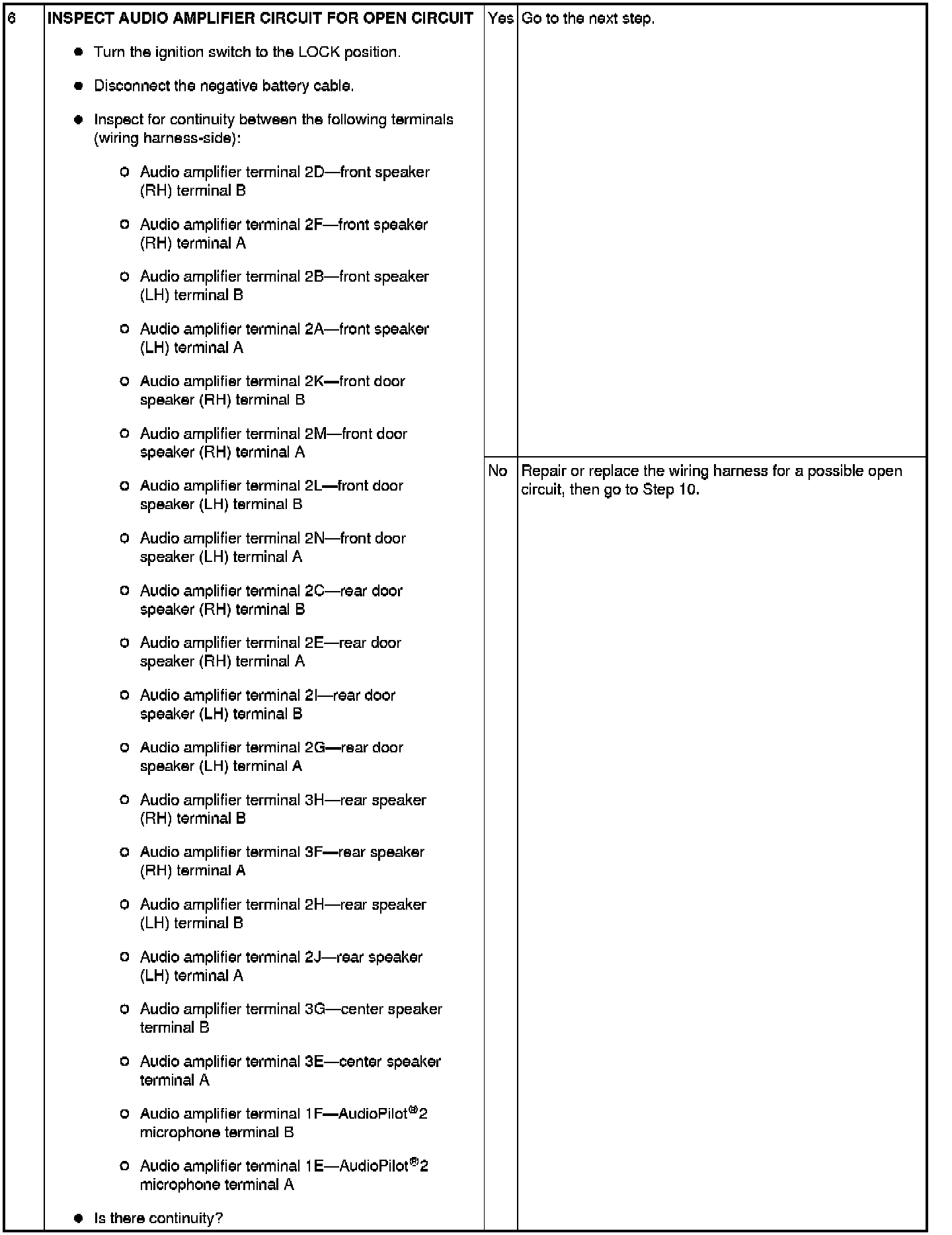

Step 6:

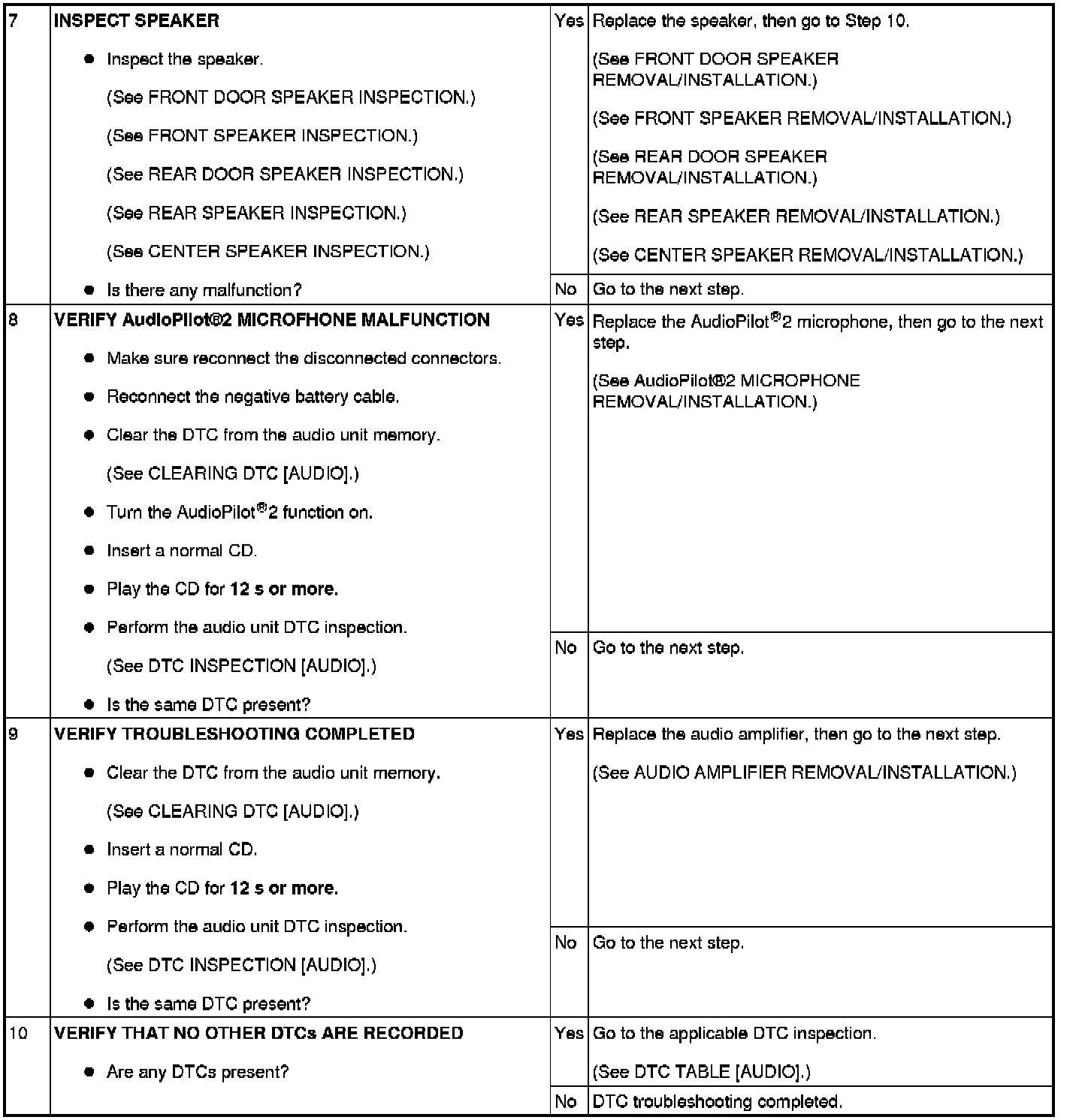

Step 7-Step 10:
