DTC 23:ER23
DTC 23:ER23
DTC: B1238:98, 23:Er23 [AUDIO]
Detection Condition/Possible Cause:
Diagnostic Procedure

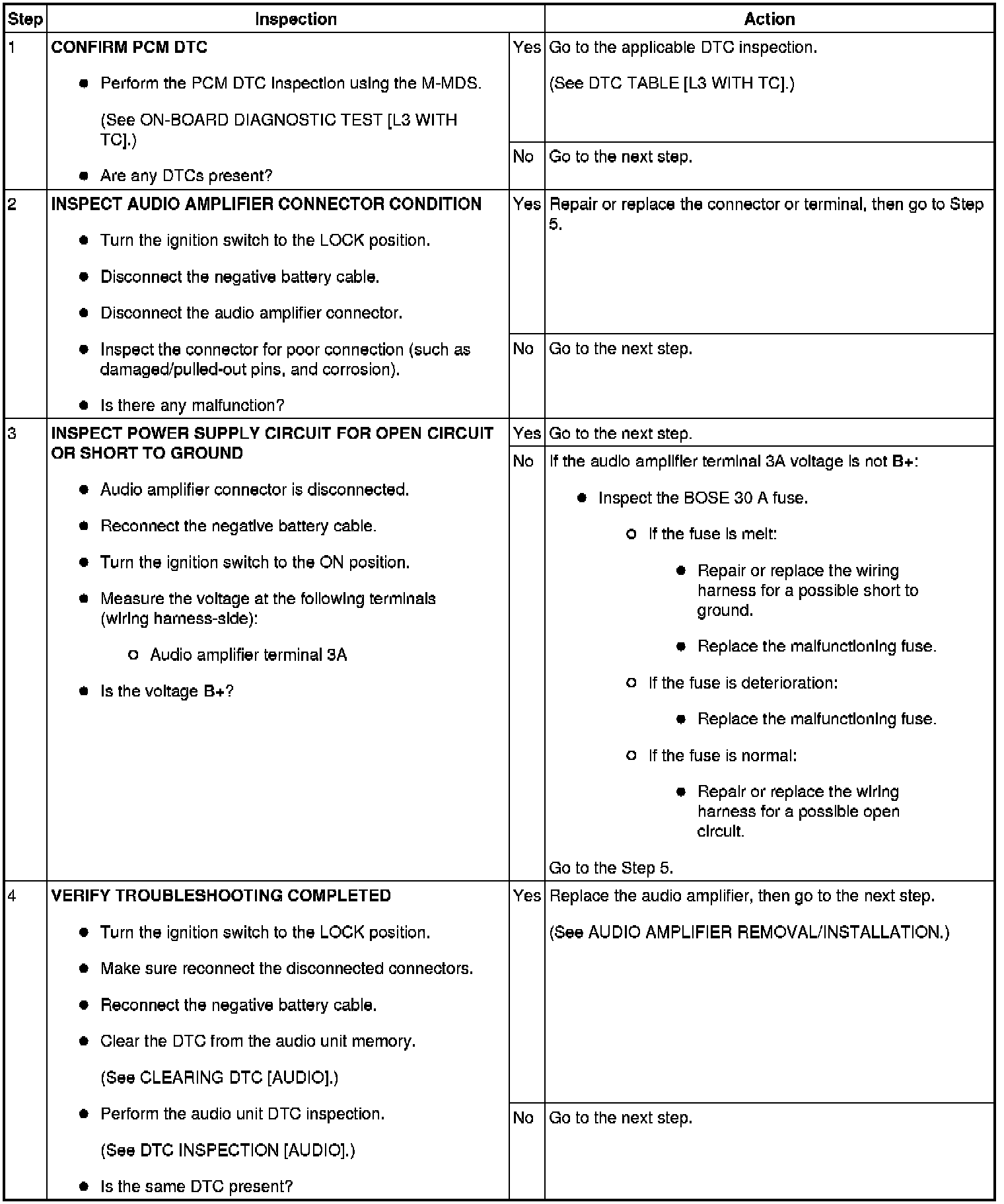

Step 1-Step 4:
Step 5:
