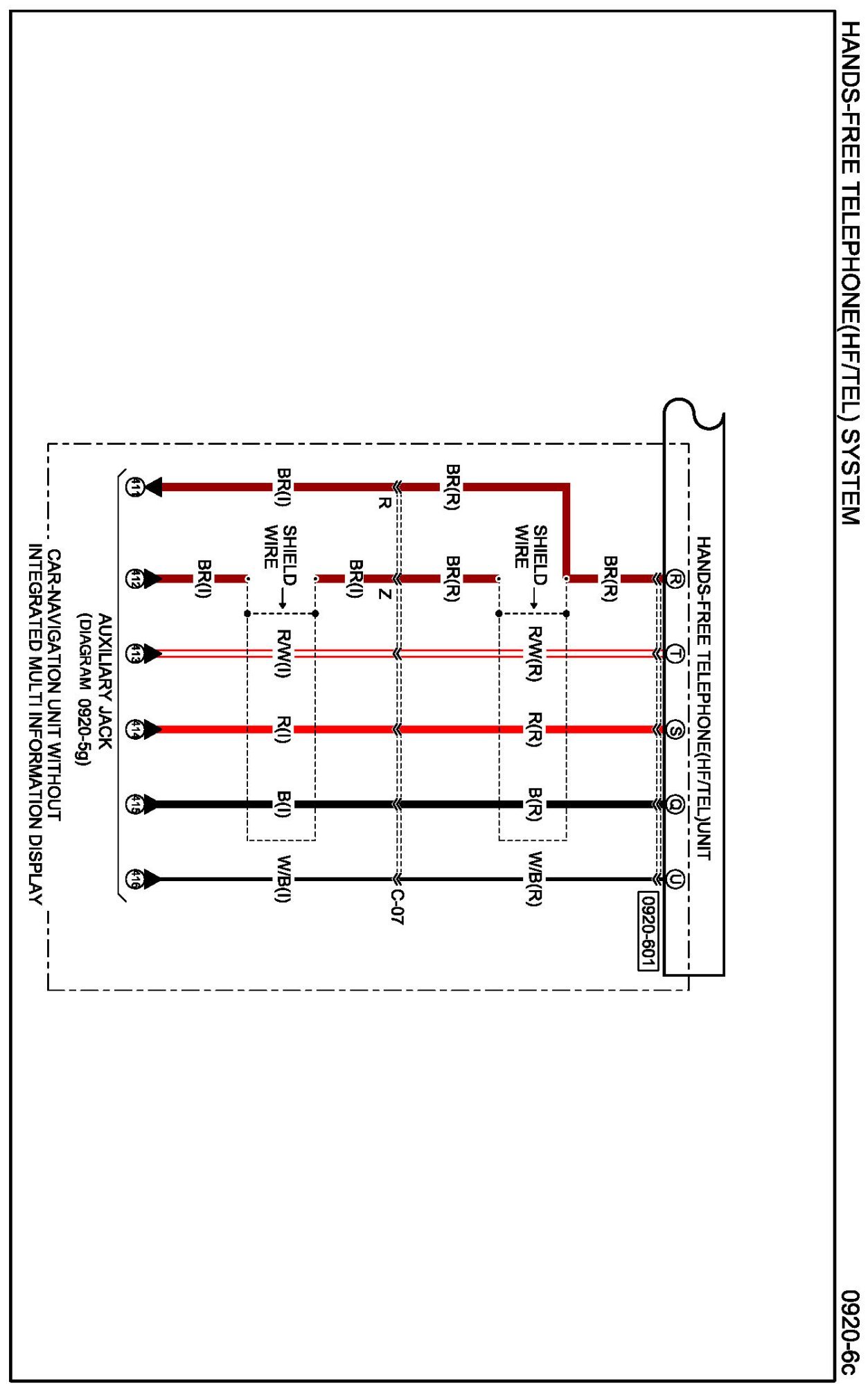

Diagram 0920-6c (Hands-Free Telephone(HF/TEL) System
Diagram 0920-6c (Hands-Free Telephone(HF/TEL) System
Diagram 0920-6c:
