Overhaul

DASHBOARD DISASSEMBLY/ASSEMBLY

1. Remove the following parts:
a. Passenger-side air bag module Passenger-Side Air Bag Module Removal/Installation

b. Multi information display Service and Repair

c. Front speaker Front Speaker Removal/Installation

d. Center speaker cover Center Speaker Removal/Installation

e. Center speaker Center Speaker Removal/Installation

f. Microphone Service and Repair

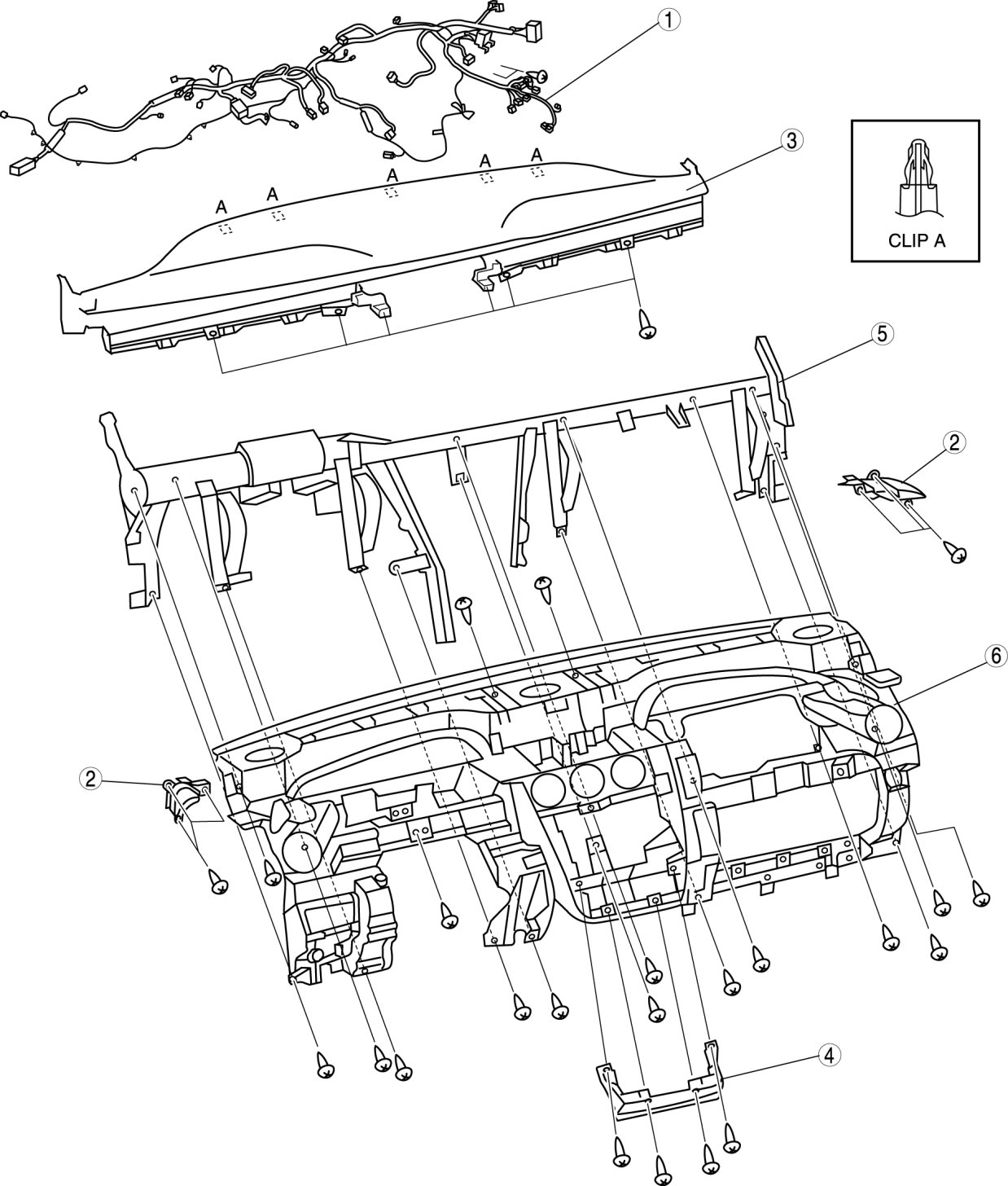

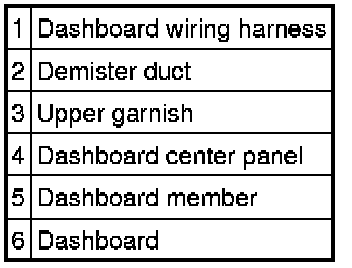

2. Disassemble in the order indicated in the table.










3. Assemble in the reverse order of disassembly.
