Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda Truck
>>
2011
>>
CX-7 AWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1566
B1566
DTC B1566 [BCM]

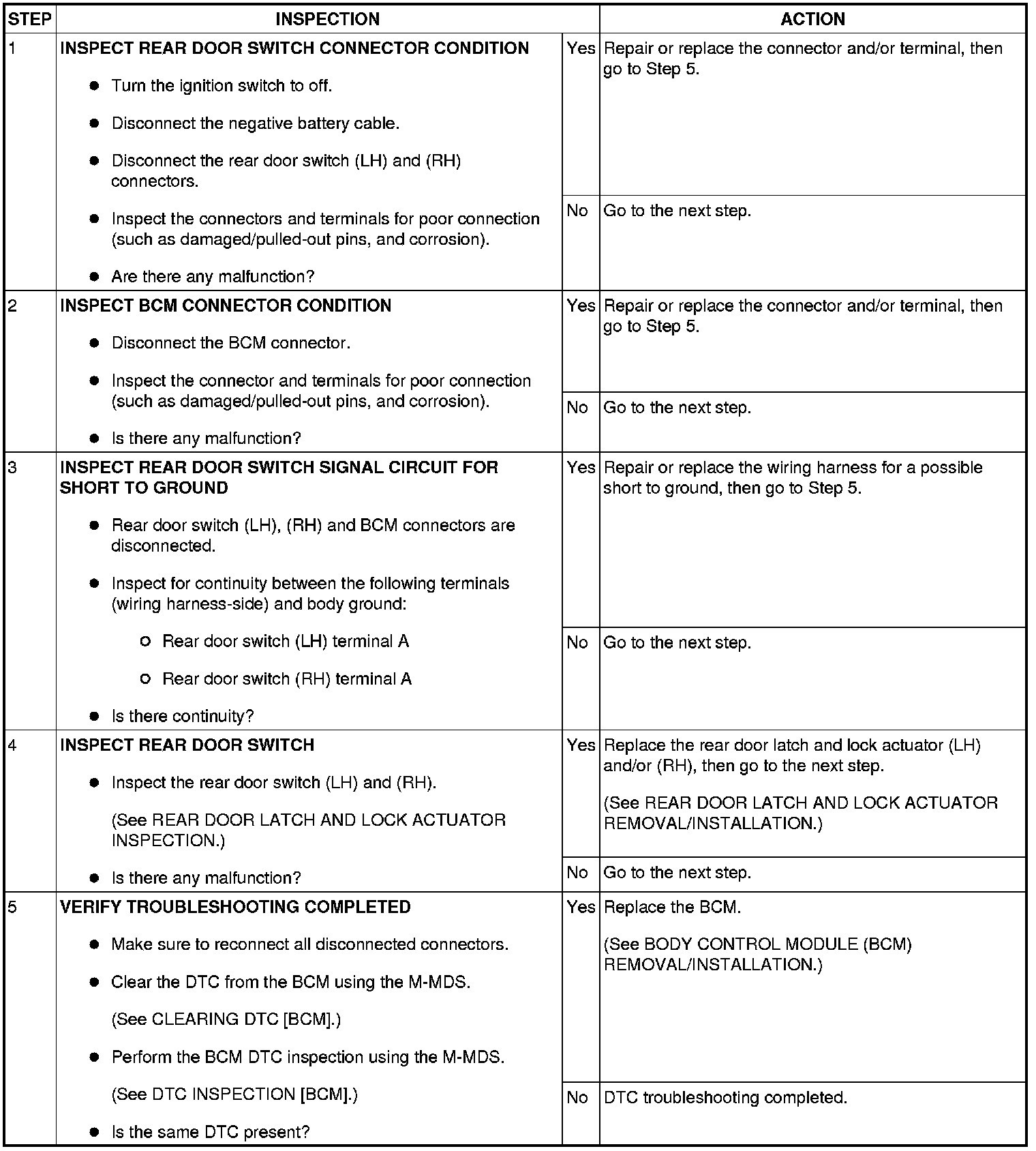

Diagnostic procedure
