Accessory Control Display: Testing and Inspection

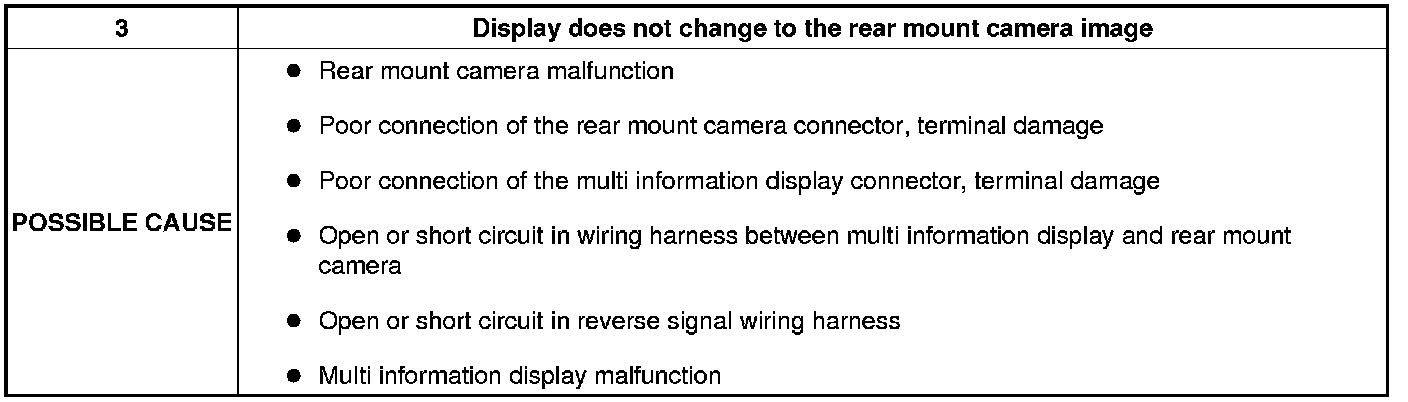

No.3 DISPLAY DOES NOT CHANGE TO THE REAR MOUNT CAMERA IMAGE [MULTI INFORMATION DISPLAY]

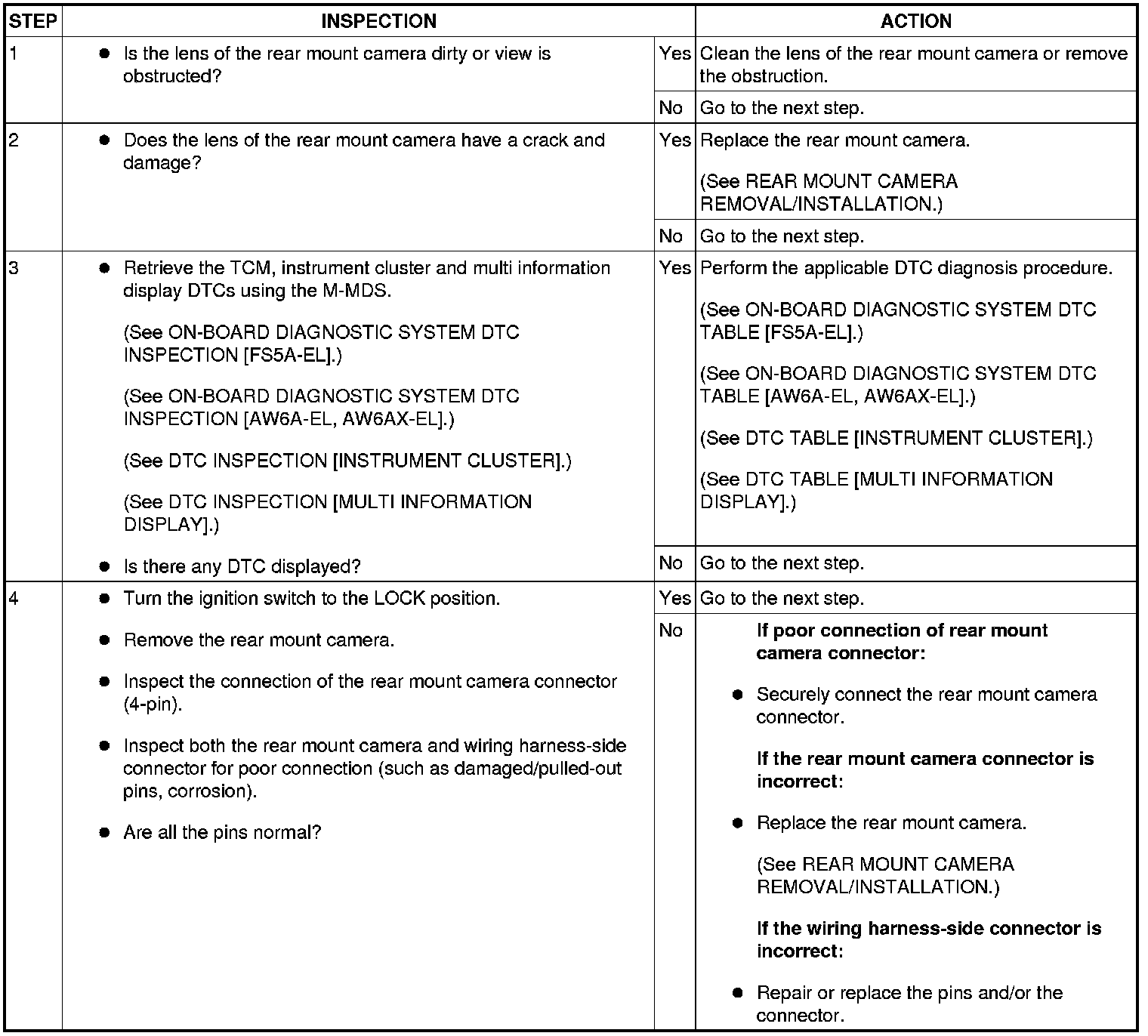

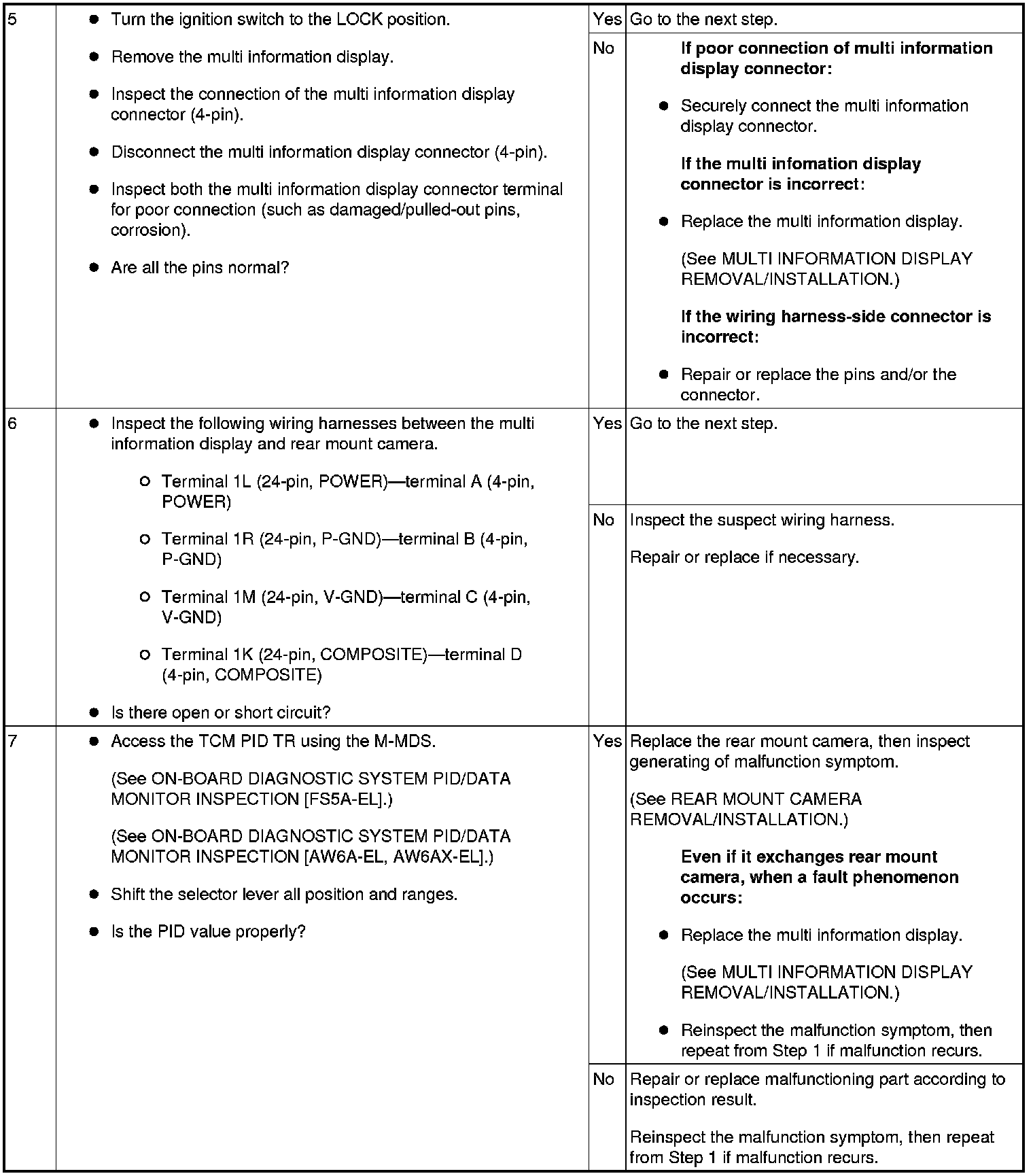

Diagnostic procedure
