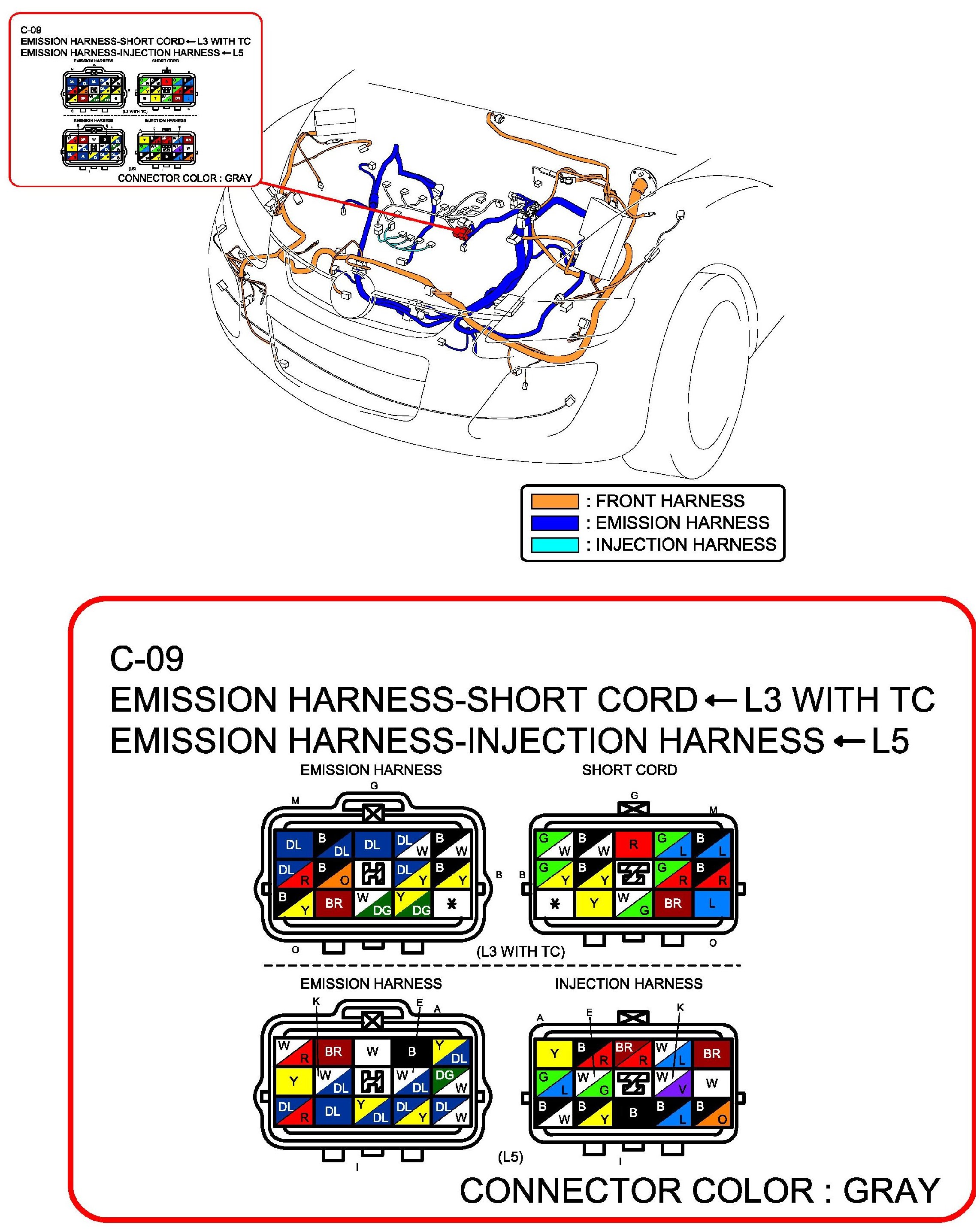

C-09 (Emission Harness-Short Cord <-- L3 With TC, Emission Harness-Injection Harness <-- L5 )
C-09 (Emission Harness-Short Cord <-- L3 With TC, Emission Harness-Injection Harness <-- L5 )
