Cabin Air Filter / Purifier: Service and Repair

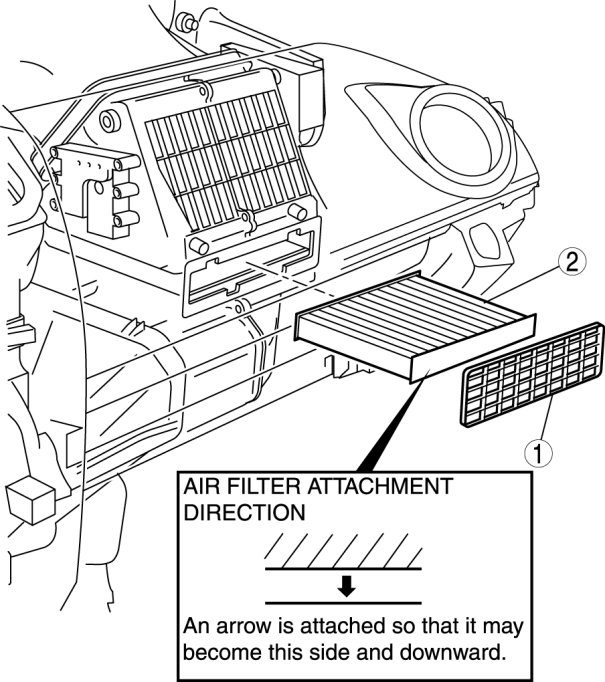

AIR FILTER REMOVAL/INSTALLATION

CAUTION:
- If the air conditioner is used or the vehicle is driven with the air filter removed, snow or foreign material can penetrate the blower motor, causing motor lock or damage. As a result, low visibility due to window fogging or air conditioner malfunction could occur. Do not use the air conditioner or drive the vehicle with the air filter removed.

1. Remove the glove compartment. Service and Repair

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
