Blind Spot Indicator: Testing and Inspection

BLIND SPOT MONITORING (BSM) INDICATOR LIGHT INSPECTION

1. Disconnect the negative battery cable.

2. Remove the inner garnish. Inner Garnish Removal/Installation





3. Remove the front door trim. Front Door Trim Removal/Installation

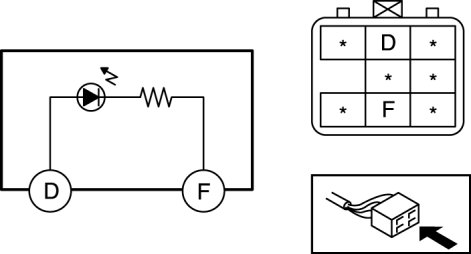

4. Apply battery voltage to power outer mirror terminal D, and terminal F to ground.

- Verify that the BSM indicator light illuminates.

5. Remove the outer mirror glass. Outer Mirror Glass Removal Outer Mirror Glass Installation

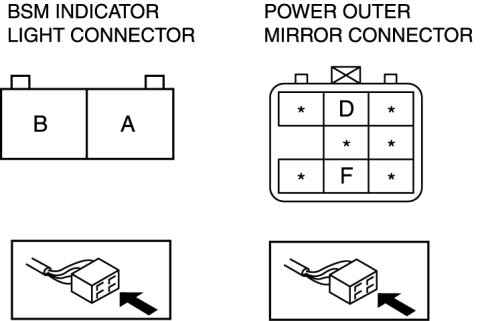

6. Apply battery voltage to BSM indicator light terminal A, and terminal B to ground.






- Verify that the BSM indicator light illuminates. If there is any malfunction, replace the BSM indicator light. Service and Repair

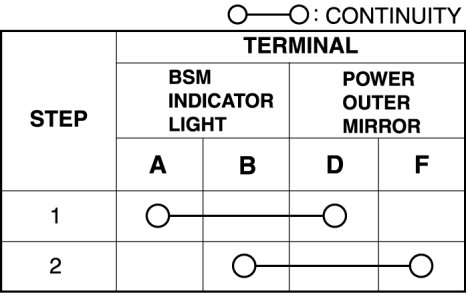

7. Inspect for continuity between the following terminals:






- Power outer mirror terminal D-BSM indicator light terminal A
- Power outer mirror terminal F-BSM indicator light terminal B

- If not as indicated in the table, replace the power outer mirror.
