Flex Plate

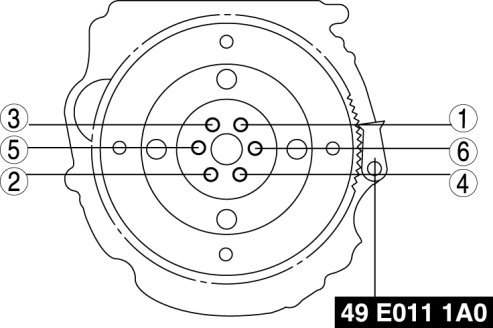

FS5A-ELTighten the drive plate mounting bolts in two or three steps in the order as shown in the figure.
Tightening torque 108-116 Nm {11.1-11.8 kgf-m, 80-85 ft-lbf}
AW6A-EL, AW6AX-EL

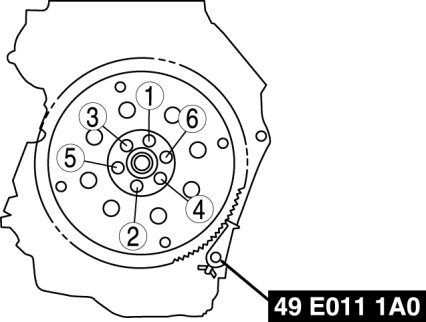

Tighten the new drive plate mounting bolts in two or three steps in the order shown.
Tightening torque 108-116 Nm {11.0-11.8 kgf-m, 79.7-85.5 ft-lbf}
