Windshield Washer Spray Nozzle: Adjustments
REAR WASHER NOZZLE ADJUSTMENT
1.

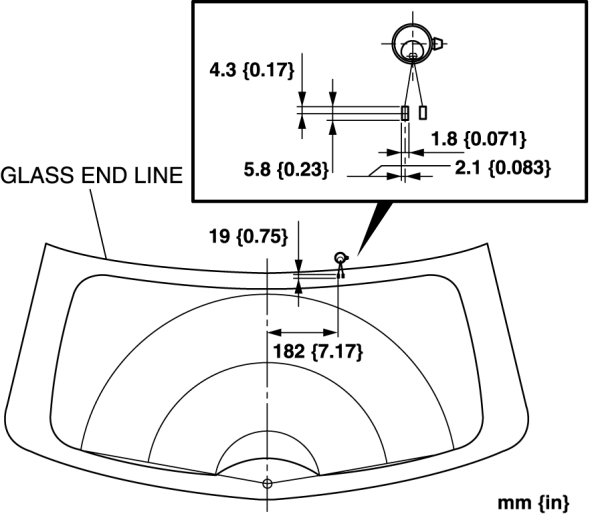

Insert a needle or an equivalent tool into the spray hole of the rear washer nozzle and adjust the nozzle direction as shown.
