C1306

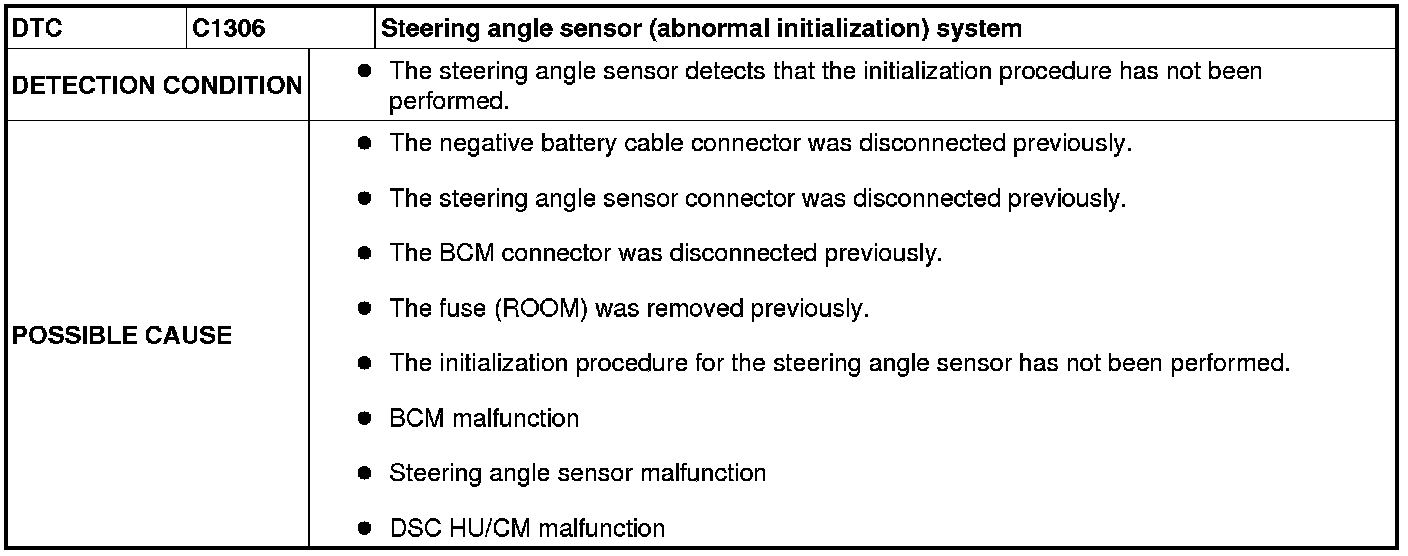

DTC C1306

NOTE:
- The steering angle initialization value of the BCM is stored using the battery power supply. Therefore, the battery power supply of the BCM is cut and the stored steering angle initialization value is cleared when any of the following items are performed. DTC C1306 is stored in the memory.

- Negative battery cable disconnection
- BCM connector disconnection
- steering angle sensor connector disconnection
- Fuse (ROOM) removal
- Wiring harness disconnection between battery and BCM connector
- Wiring harness disconnection between BCM connector and steering angle sensor connector

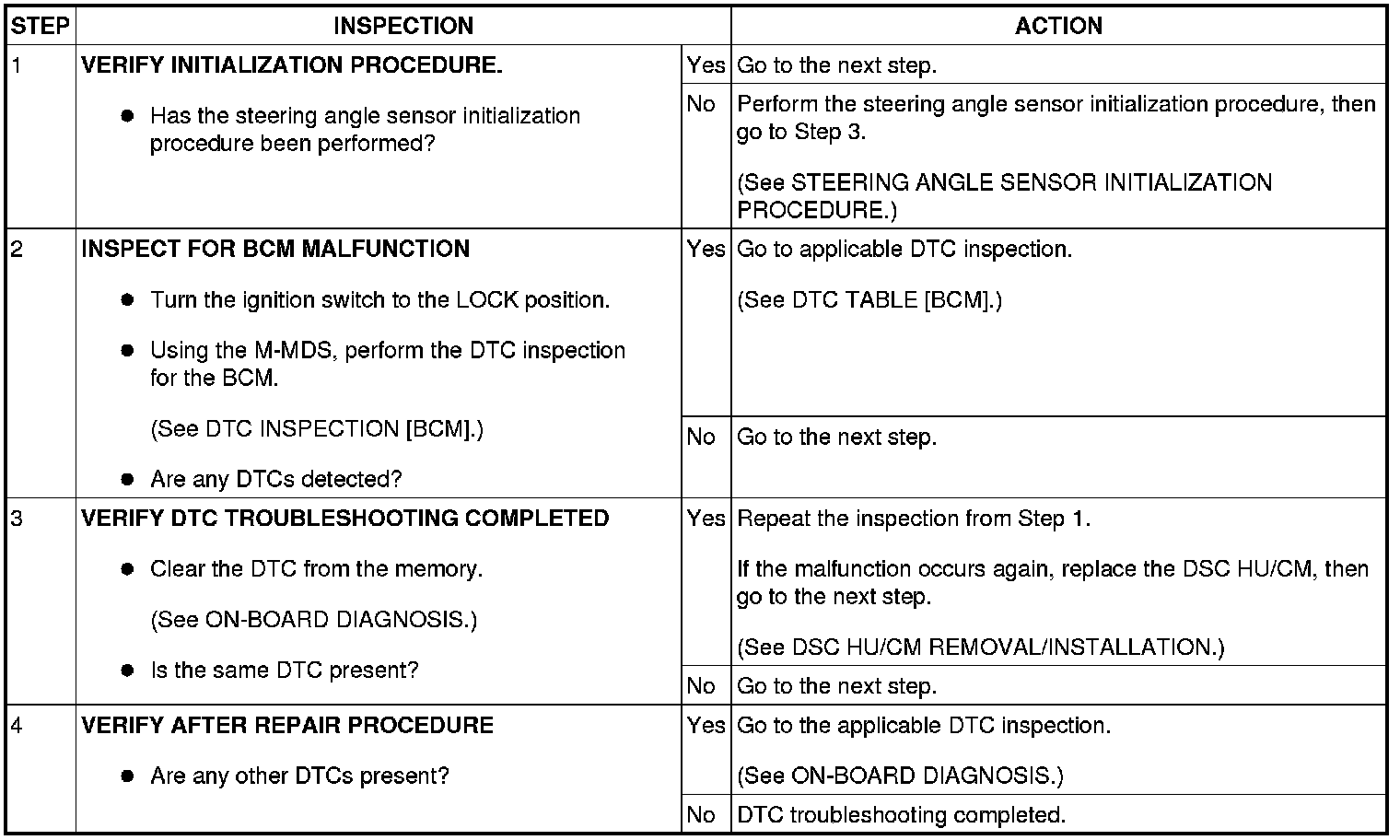

Diagnostic procedure
