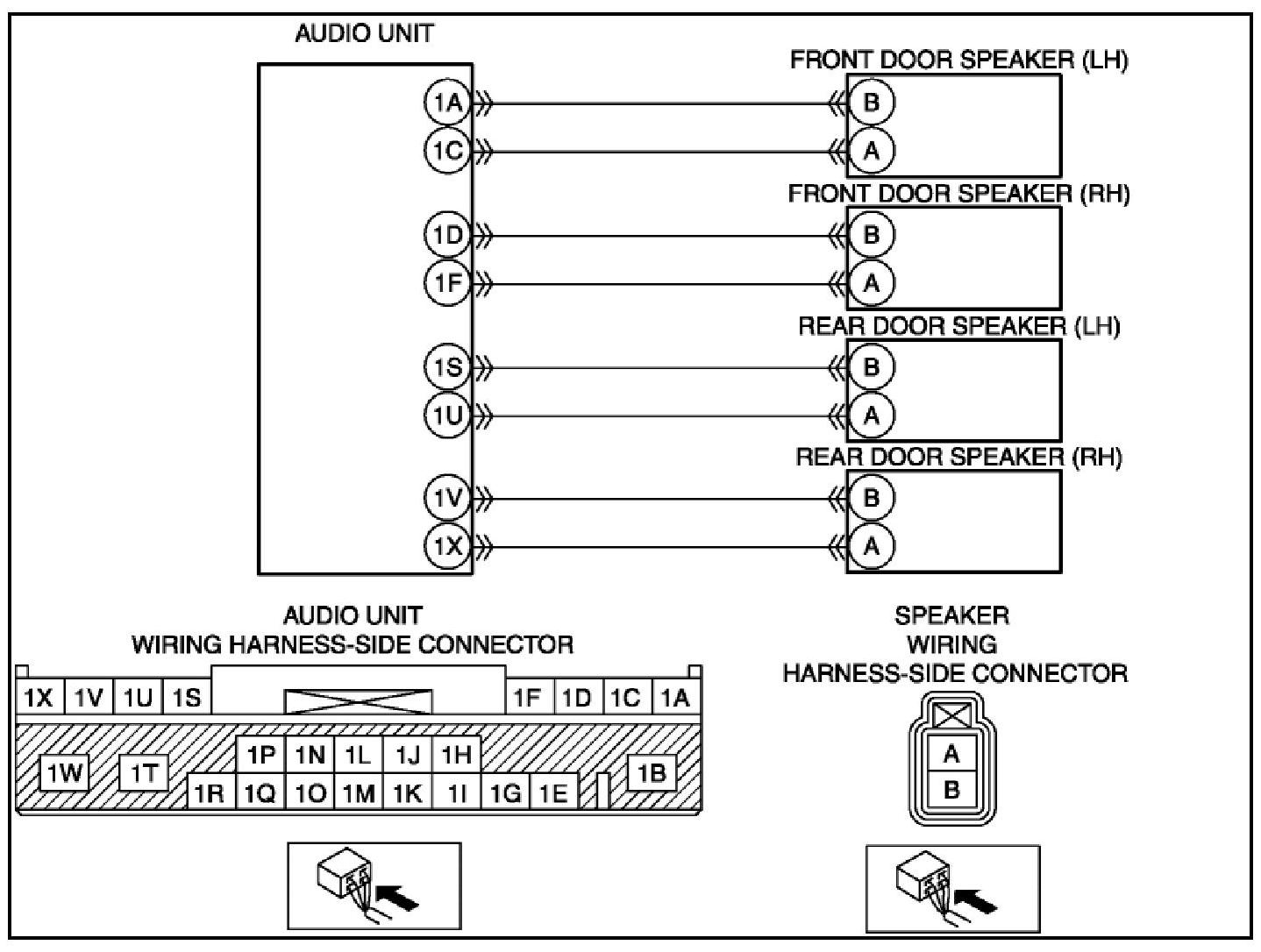

DTC: U3000:09, 09:Er21 [AUDIO]

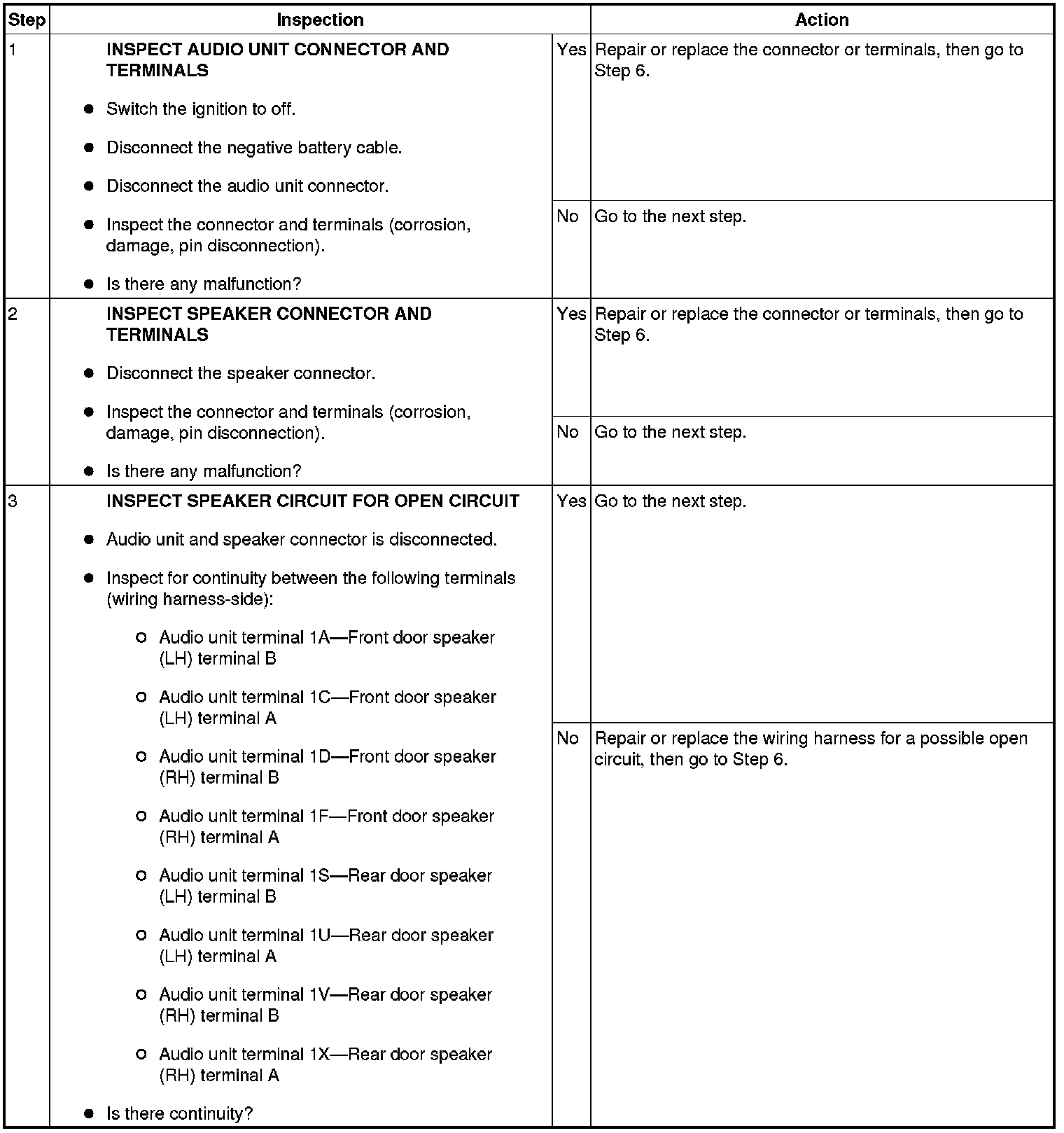

Without Bose(R)
Diagnostic Procedure

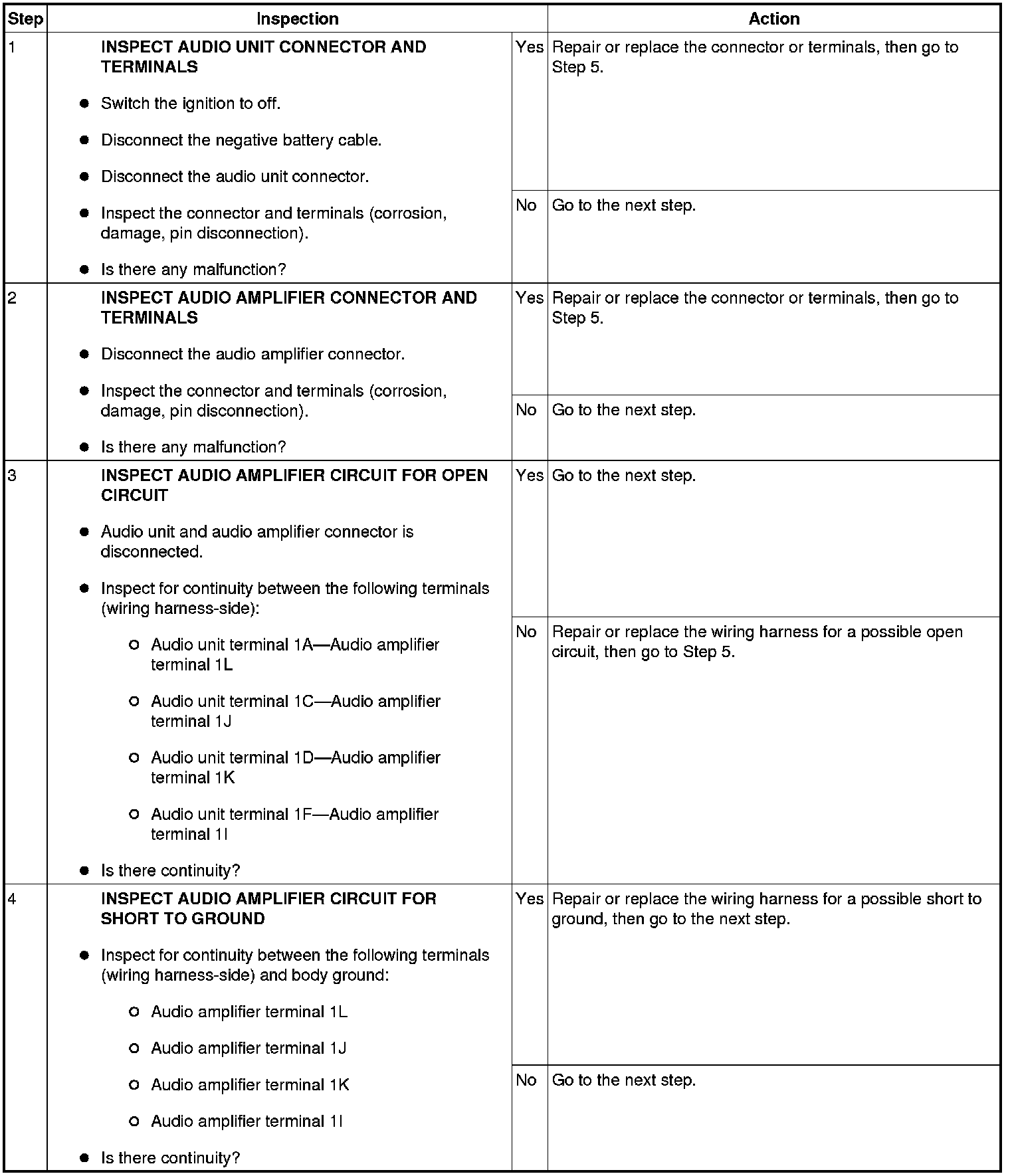

With Bose(R)
Diagnostic Procedure
