Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda Truck
>>
2012
>>
CX-7 AWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
23:ER23
23:ER23

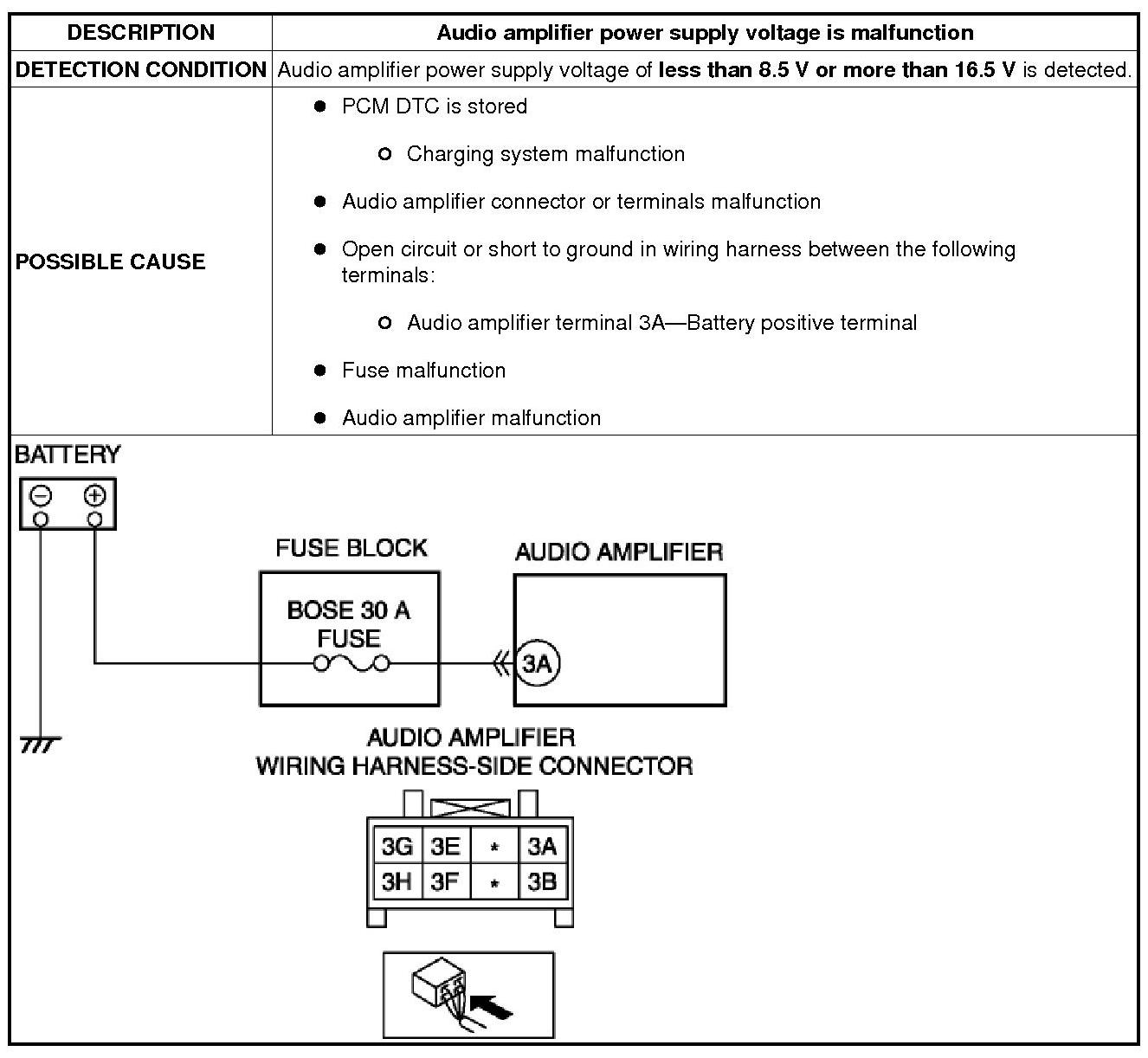

DTC: B1238:98, 23:Er23 [AUDIO]
Diagnostic Procedure
