Mazda Truck
>>
2012
>>
CX-7 AWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P2503
P2503

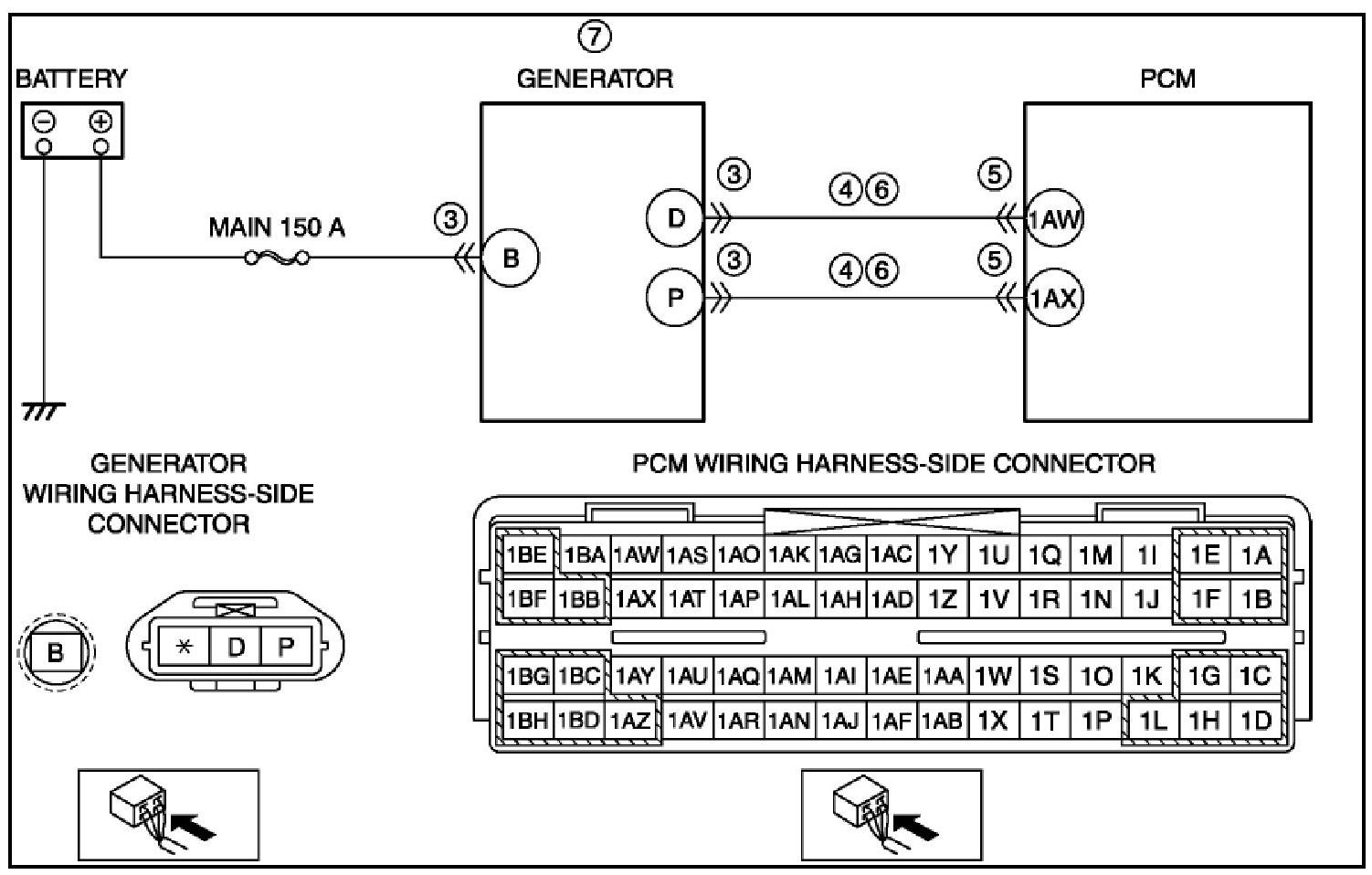

DTC P2503:00 [L3 WITH TC]

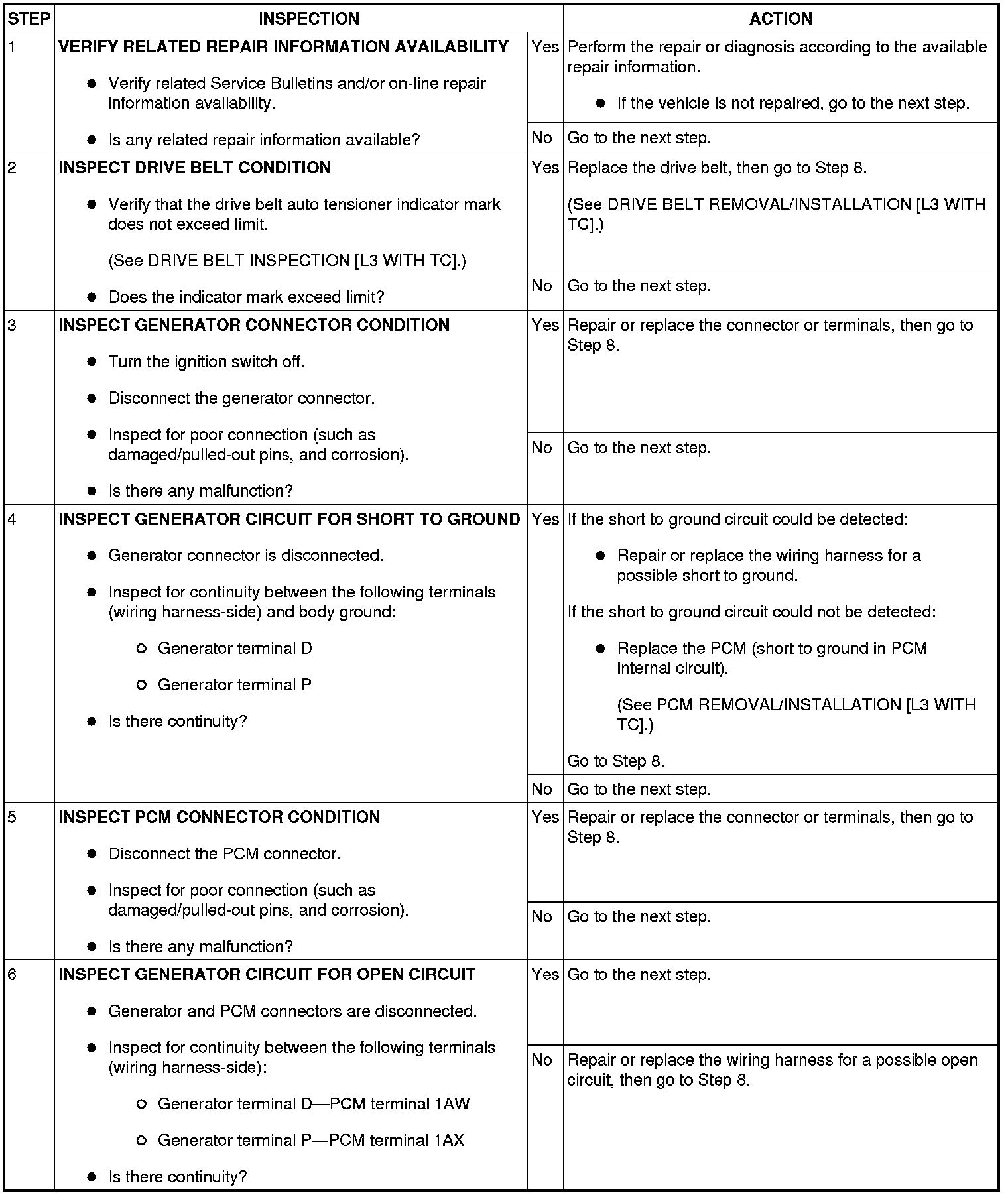

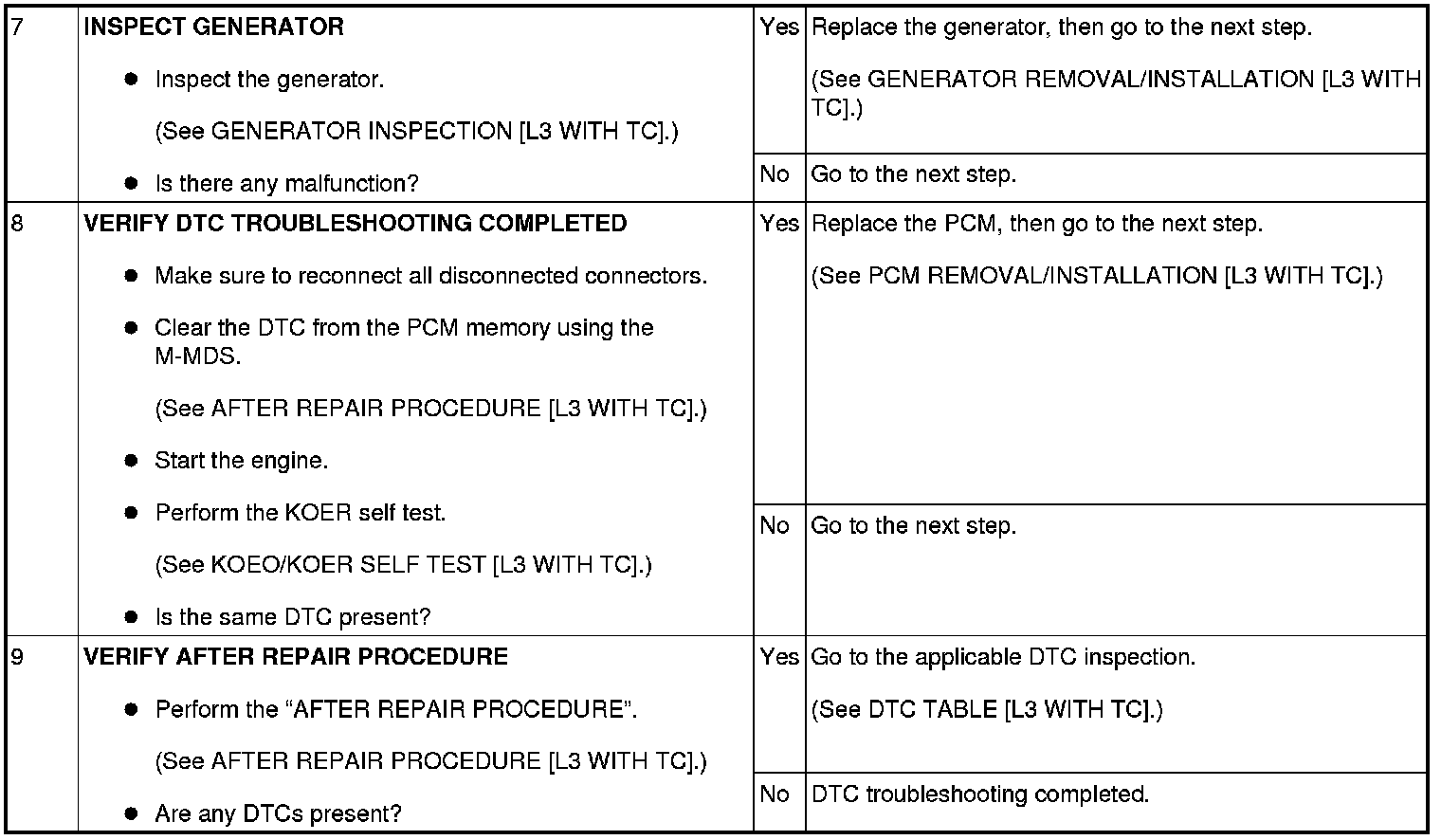

Diagnostic procedure
