Receiver Dryer: Service and Repair

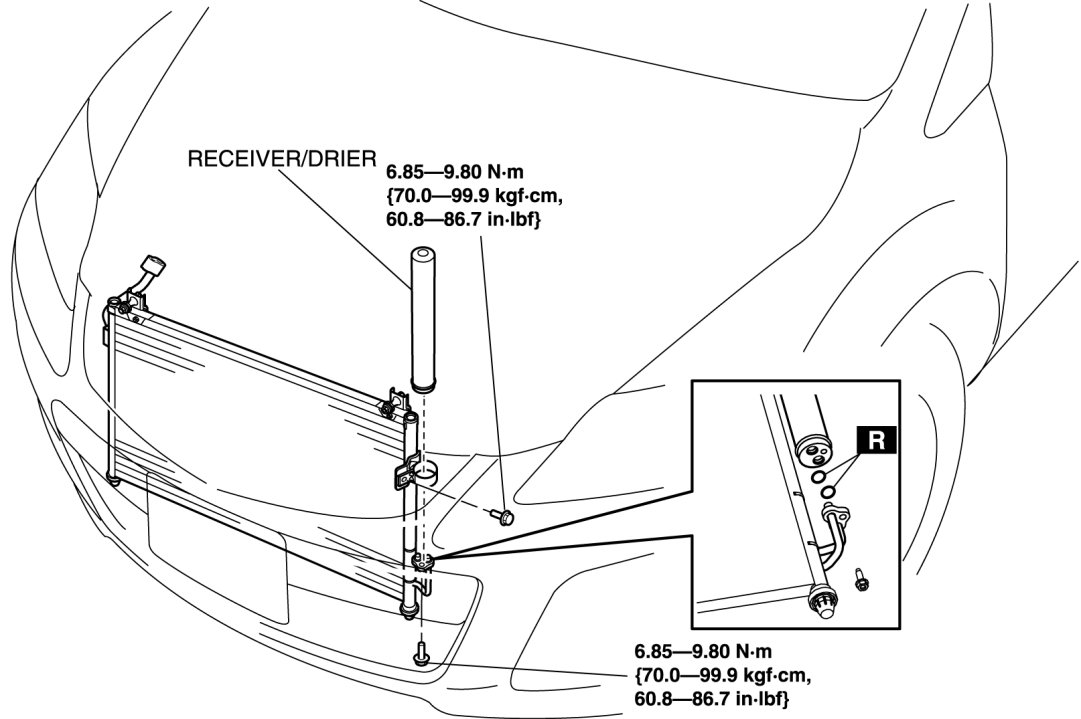

RECEIVER/DRIER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Discharge the refrigerant from the system. Refrigerant Recovery Refrigerant Charging

3. Remove the front bumper. Removal and Replacement

4. Remove the nuts, and set the oil cooler out of the way. Service and Repair

CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

5. Remove the receiver/drier. Do not allow compressor oil to spill.






6. Install in the reverse order of removal.

7. Perform the refrigerant system performance test. Refrigerant System Performance Test

Receiver/Drier Removal Note

1. Disconnect the block joint type pipes by grasping female side of the block with hand and holding firmly, then tighten the connection bolt.






Receiver/Drier Installation Note

1. Tighten the bolt of joint by hand.






2. Tighten the joint to the specified torque.

3. Connect the block joint type pipe by grasping the female side of the block with hand holding firmly, then tighten the connection bolt.
