Body - Driver's Side Door Mirror Vibration
Bulletin No: 09-002/13Last Issued: 02/26/2013
Subject:
DRIVER-SIDE POWER DOOR MIRROR VIBRATION
APPLICABLE MODEL(S)/VINS
2013 CX-5 vehicles with VINS lower than JM3KE******168885 (produced before November 16, 2012)
DESCRIPTION
Some vehicles may exhibit a vibration from the driver-side power door mirror glass when the vehicle is driven at high speeds.
This concern may be due to a lack of rigidity of the mirror base so the mirror vibrates when it receives vehicle vibration or wind pressure.
Customers having this concern should have their vehicle repaired using the following repair procedure.
REPAIR PROCEDURE

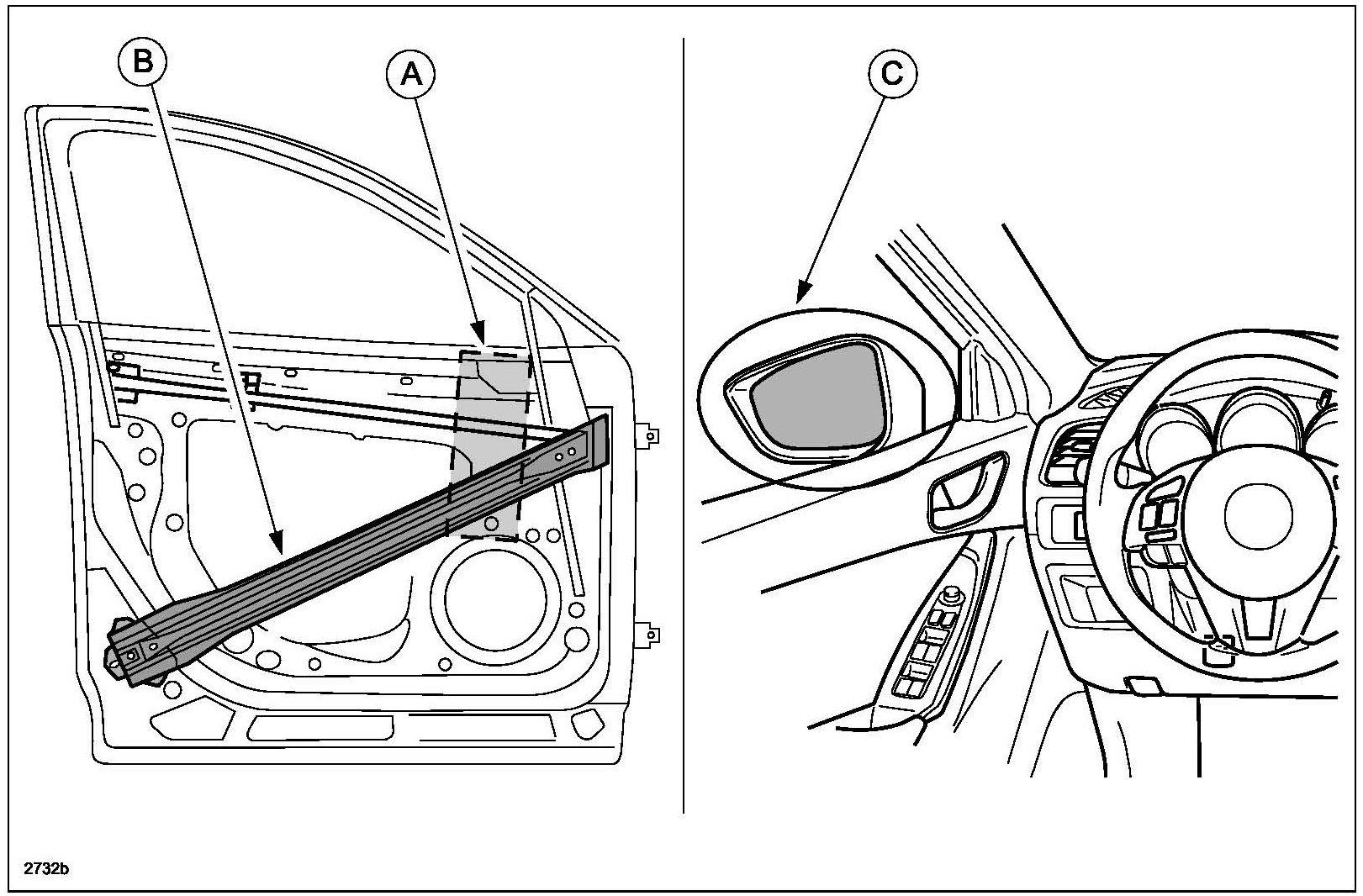

Repair A: Install a new reinforcement (A) onto the side impact bar-lower (B) and door panel to increase rigidity of the door panel where the power door mirror is located.
Repair B: Replace the power door mirror (C) with a modified one.
Outline of Repair A:
Upper reinforcement: Tighten the upper reinforcement (A) to the door panel together with the power door mirror with three (3) nuts.

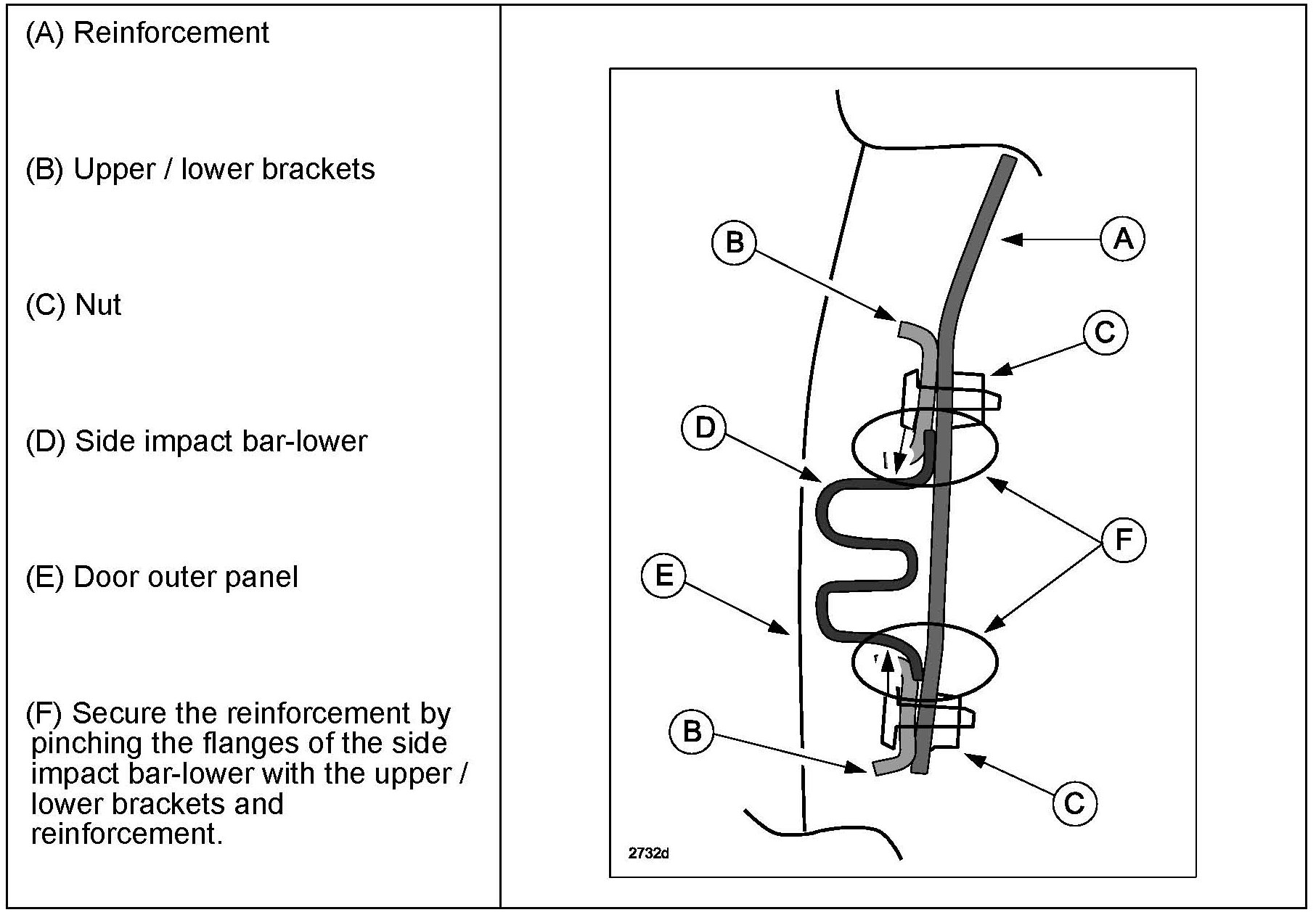

Lower reinforcement: Attach the lower reinforcement (B) to the side impact bar-lower with two (2) (upper and lower) brackets.
Outline of Repair B:

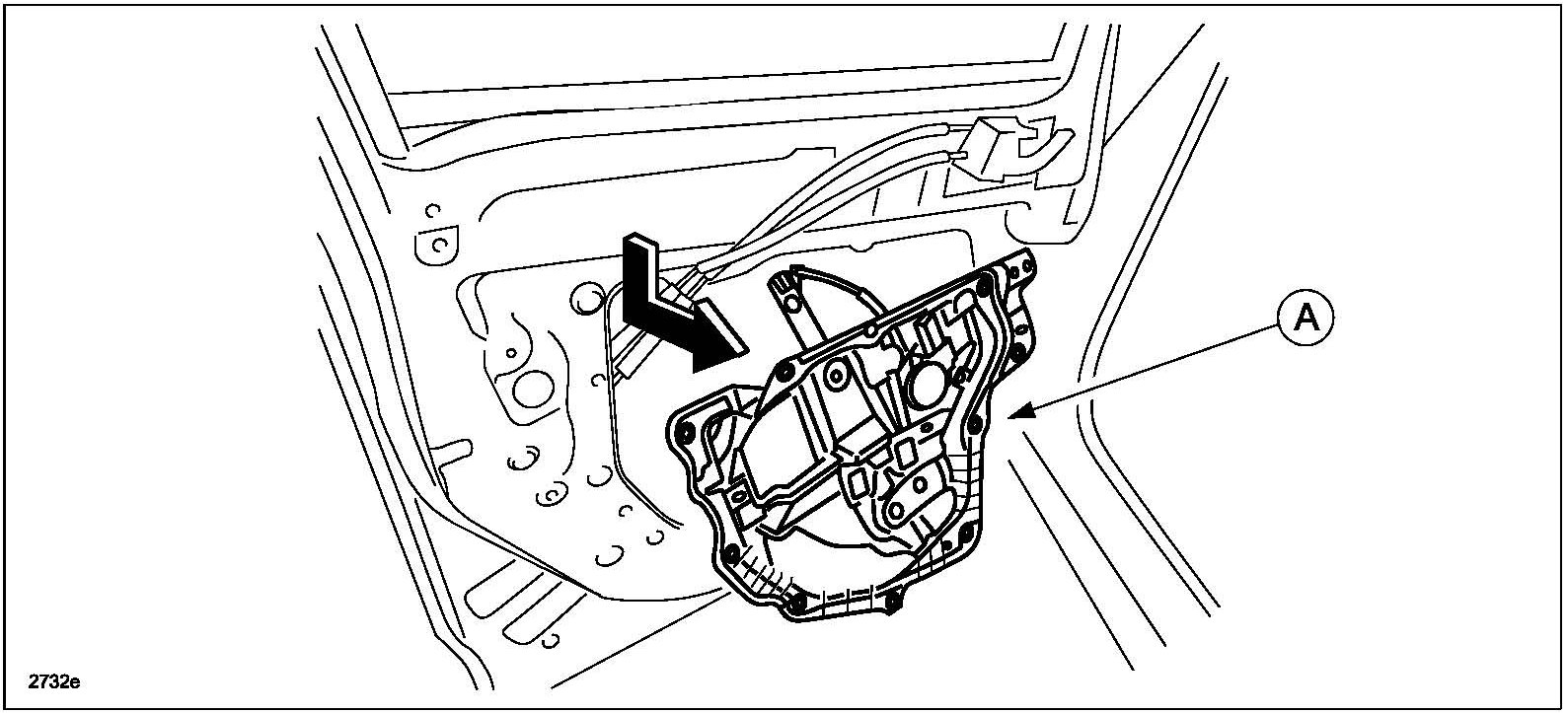

1. Remove the front door module panel (A) according to the instructions on MS3 online or the Workshop Manual (section 09-11 FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION).
2. Remove the power door mirror (A) according to the instructions on MS3 online or the Workshop Manual (section 09-12 POWER OUTER MIRROR REMOVAL/INSTALLATION).
3. Remove the mirror glass (A), garnish (B) and side turn lamp (C) from the removed outer door mirror according to the instructions on MS3 online or the Workshop Manual (section 09-12 OUTER MIRROR GARNISH REMOVAL/INSTALLATION) and (section 09-18 SIDE TURN LIGHT REMOVAL/INSTALLATION).

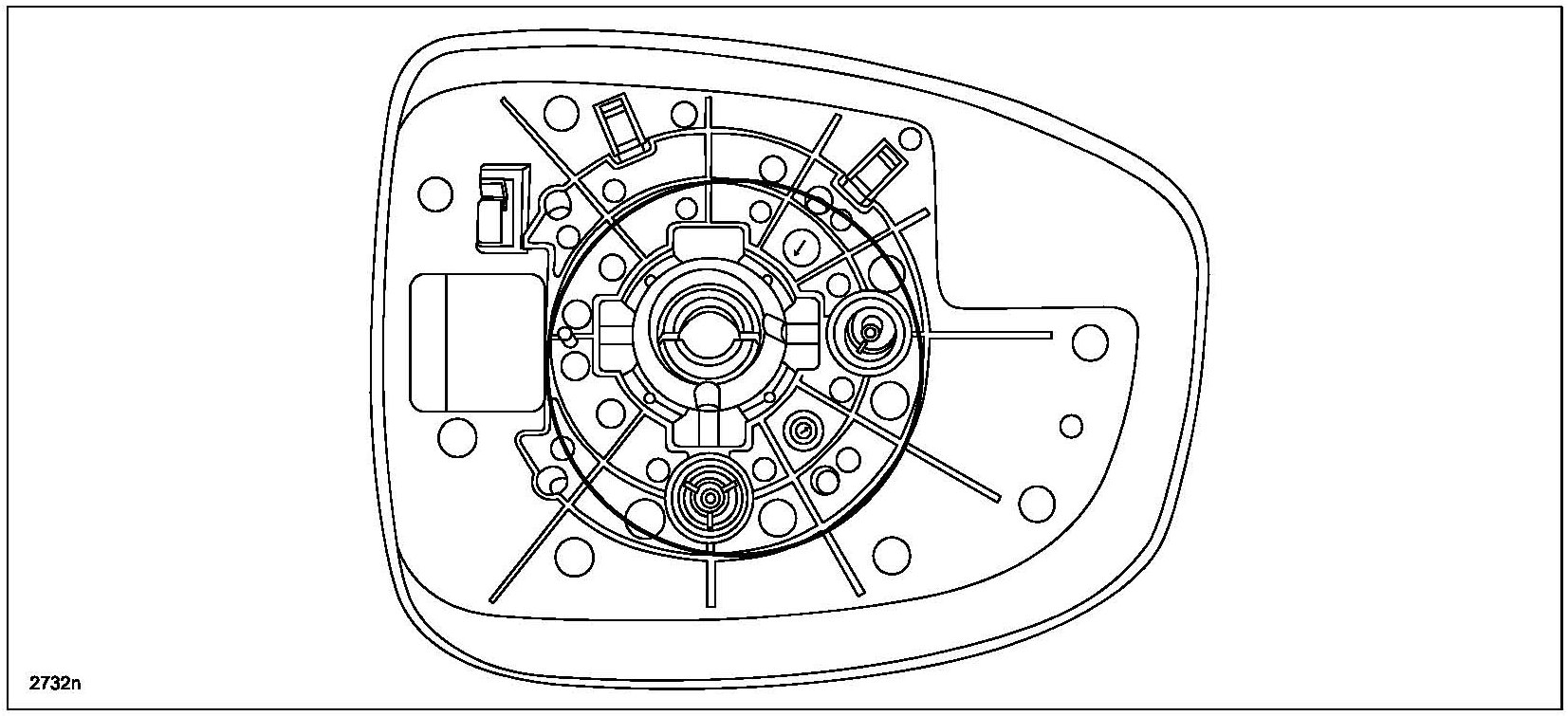

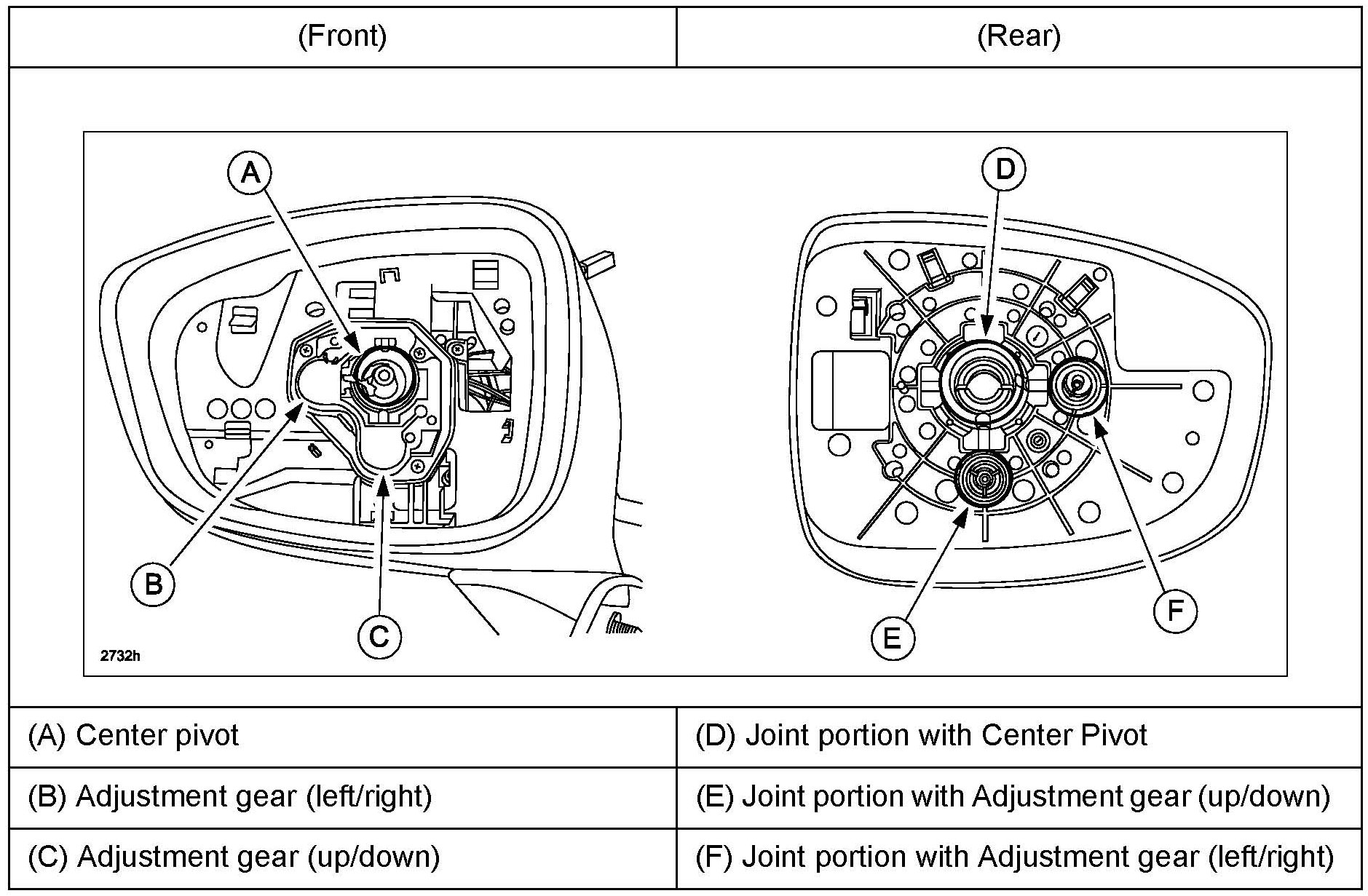

Construction of Mirror Glass and Base:
Removal:
1. In order to make it easier to disconnect the joint portion with the center pivot, heat the center of the mirror glass with a drier to approx. 104-122 degrees F (40-50 degrees C).

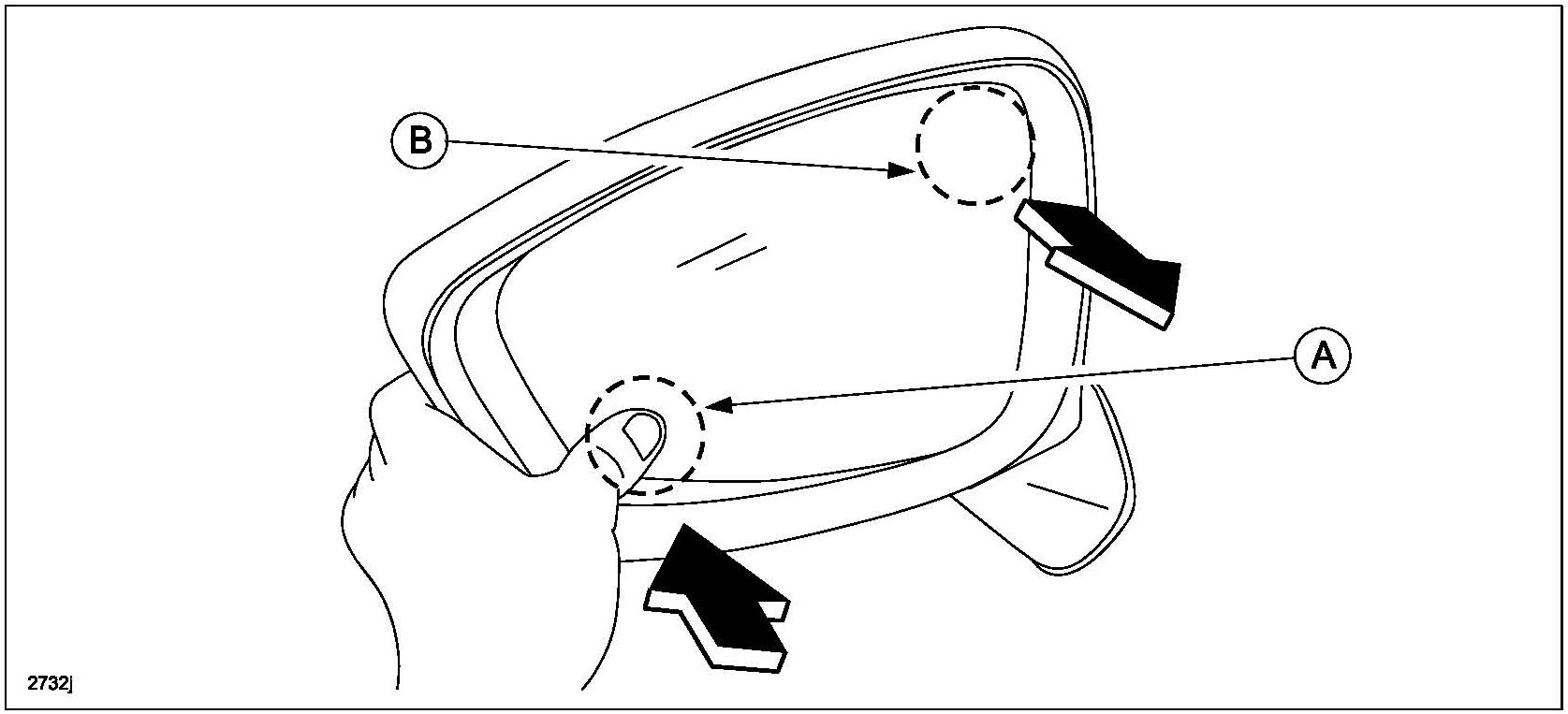

2. In order to make a space for your fingers to insert in the back of the mirror glass, push area (A) to move area (B) toward you.
3. Insert your fingers into area (A) between the black plastic base at the back of the mirror glass.

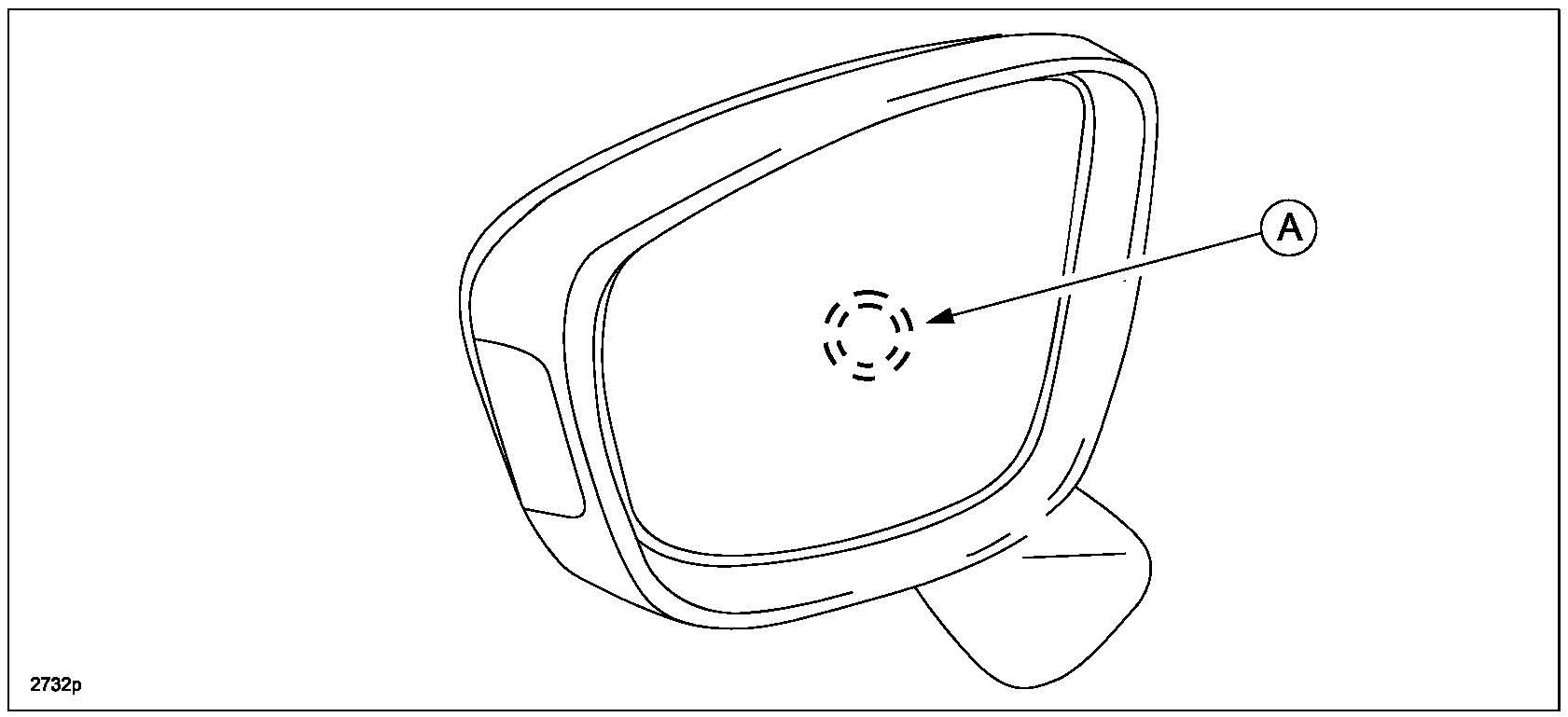

4. Press the black plastic base at the back of mirror glass (A) toward you and carefully disconnect the joint with the center pivot (B).

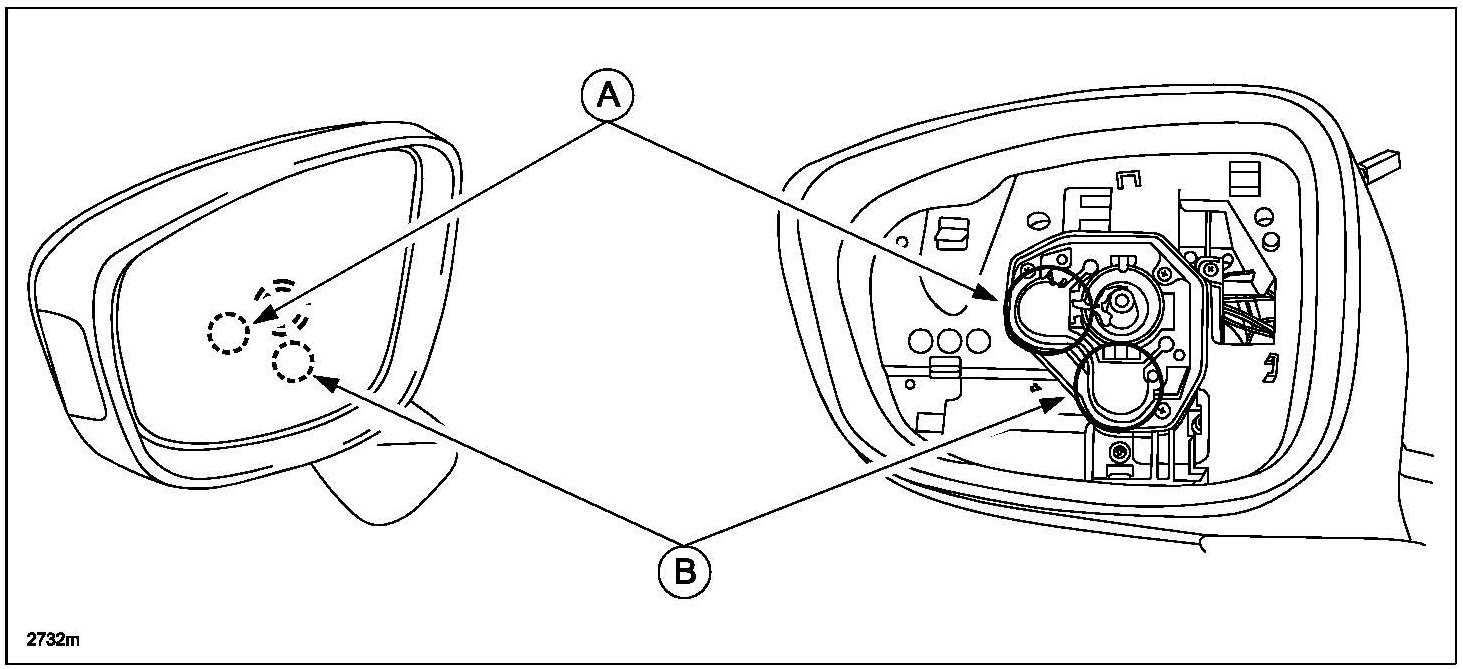

5. Move the mirror glass left and right and up and down to make a space for your fingers to insert in the back of mirror glass. Press the mirror glass with your fingers toward you to disconnect the joint for adjustment gears (A) and (B).
Installation:
1. In order to make it easier to connect the joints, heat the plastic base at the back of mirror glass with a drier to approx. 104-122 degrees F (40-50 degrees C).
2. Push the adjustment gears (A) and (B) all the way down.
3. Place the mirror glass on the mirror base aligning the location of the center pivot (A).
4. Gradually press the center of the mirror glass with your palm to click in the center pivot.

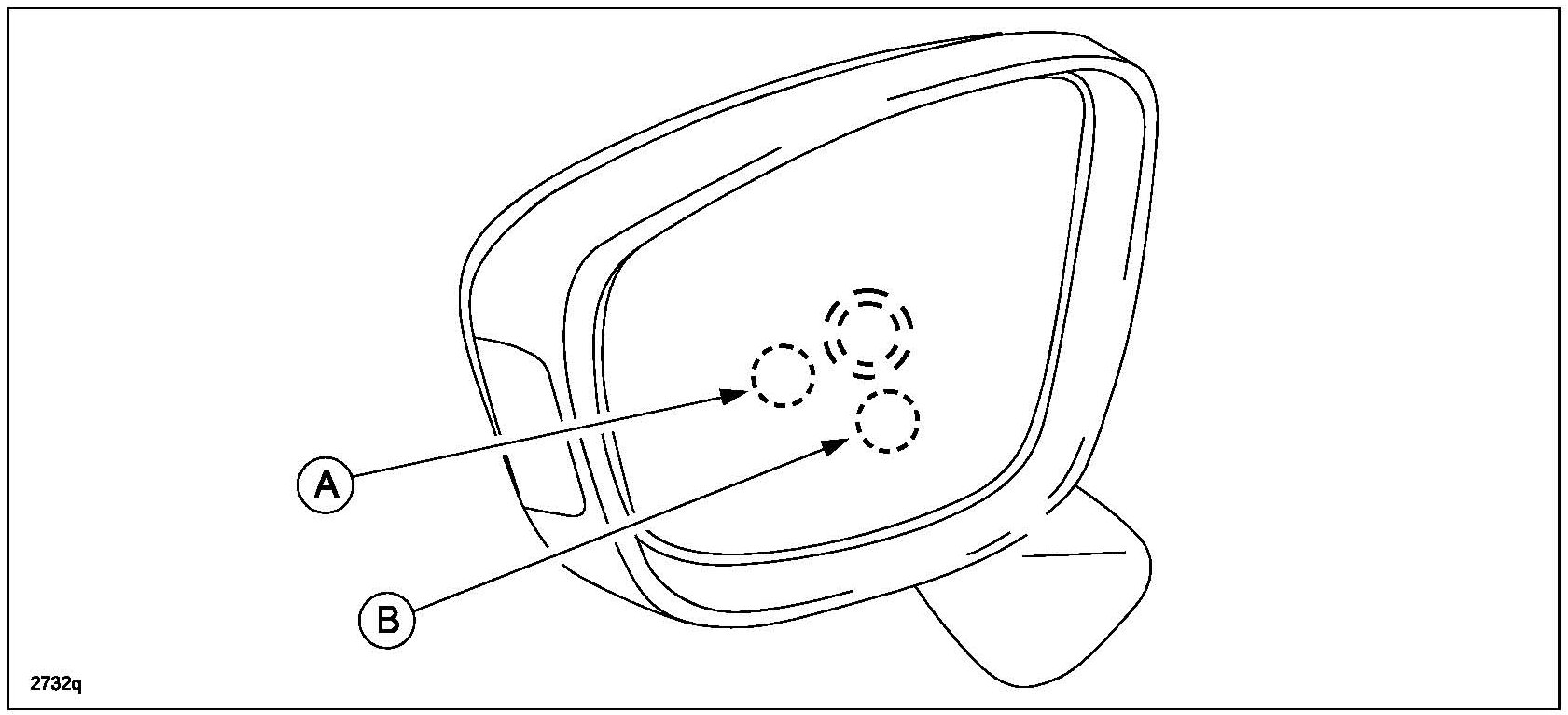

5. Press the areas (A) and (B) of the mirror glass to click in the joint for the adjustment gears.
6. Move the mirror glass up and down and left and right to verify that the adjustment gears move smoothly and without any problem.
7. Adjust the mirror glass in the neutral position.
8. Install the removed side turn lamp, garnish and glass onto the new power door mirror.

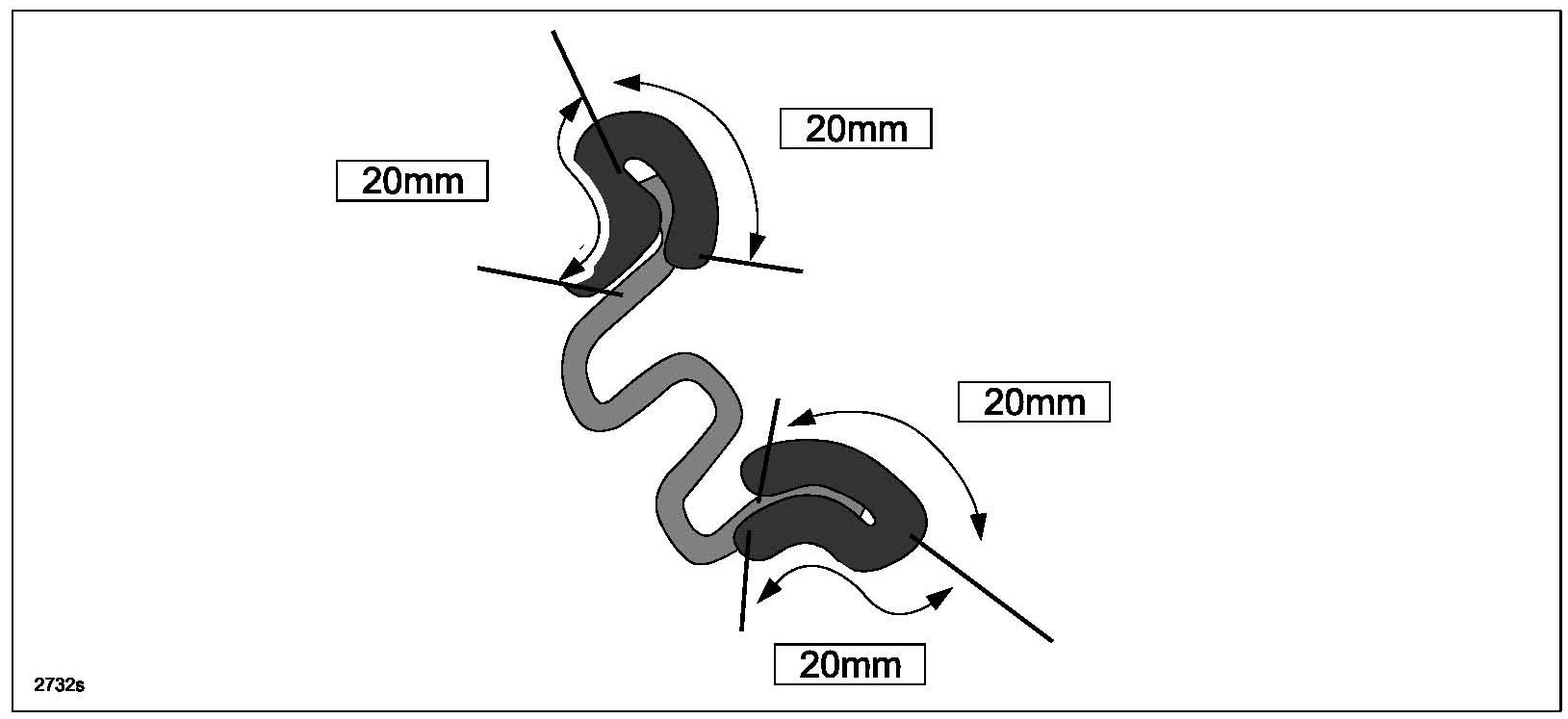

9. For rust prevention, attach two (2) self-stick pads (200mm x 40mm) to each edge of the side impact bar-lower (as shown) where the bracket and reinforcement are installed.

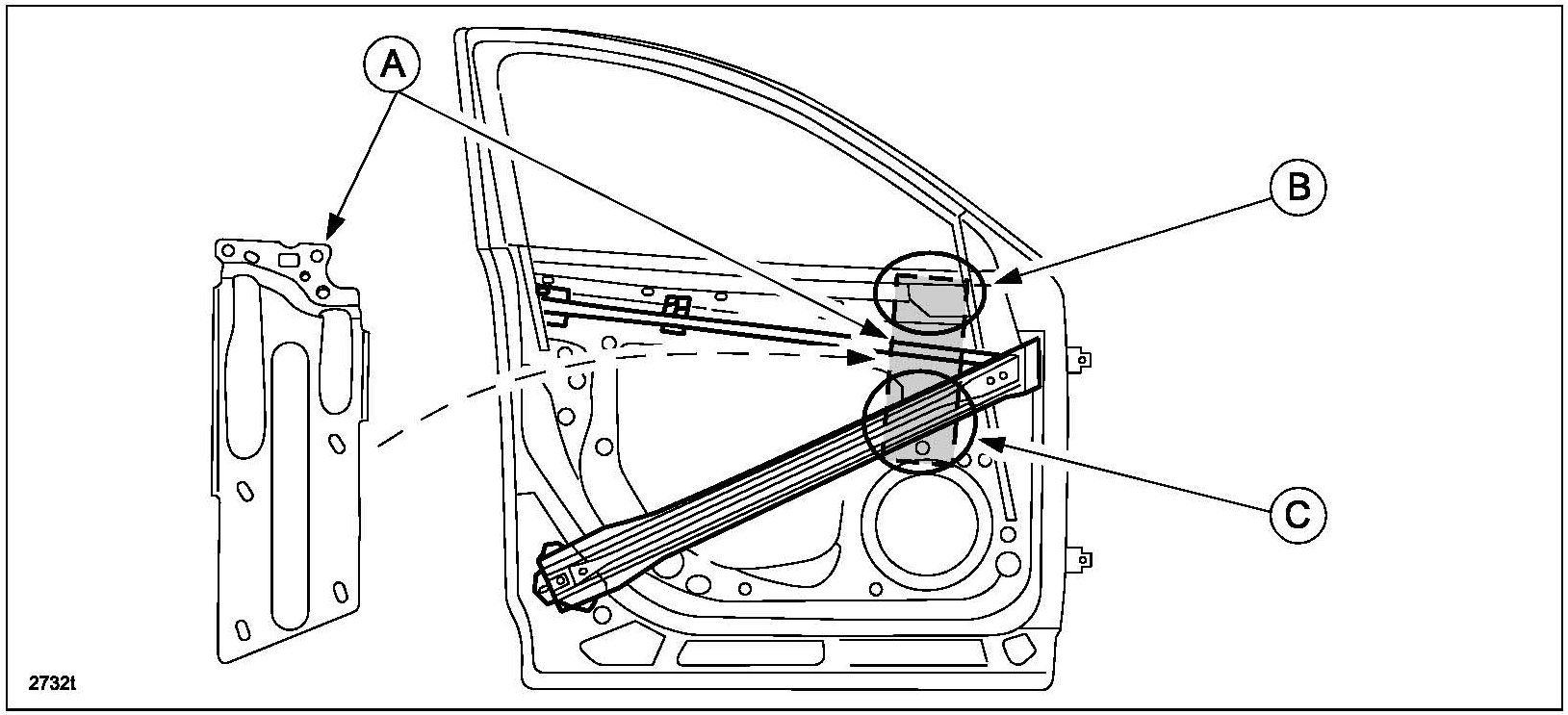

10. Install the reinforcement (A) as shown below. Secure the upper part (B) together with the power door mirror and the lower part (C) to the side impact bar-lower with the two (2) brackets.
11. Temporally fit the new power door mirror onto the door, but do not tighten it at this time.

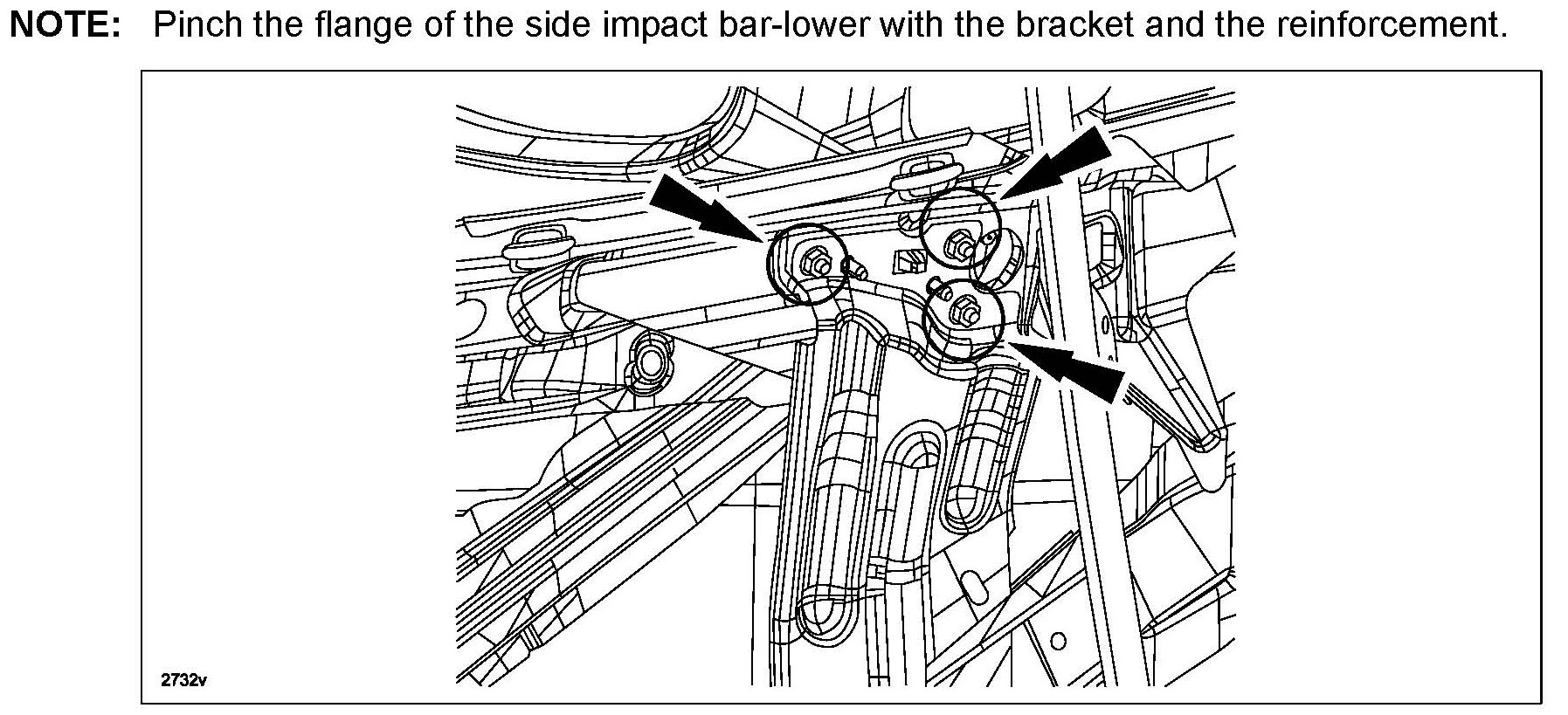

12. While holding the power door mirror, place the reinforcement passing three (3) stud bolts of the power door mirror through the holes in the reinforcement and tighten the three (3) nuts.
Tightening Torque: 11 ft. lbf. {1.5 kgf-m, 15 Nm}

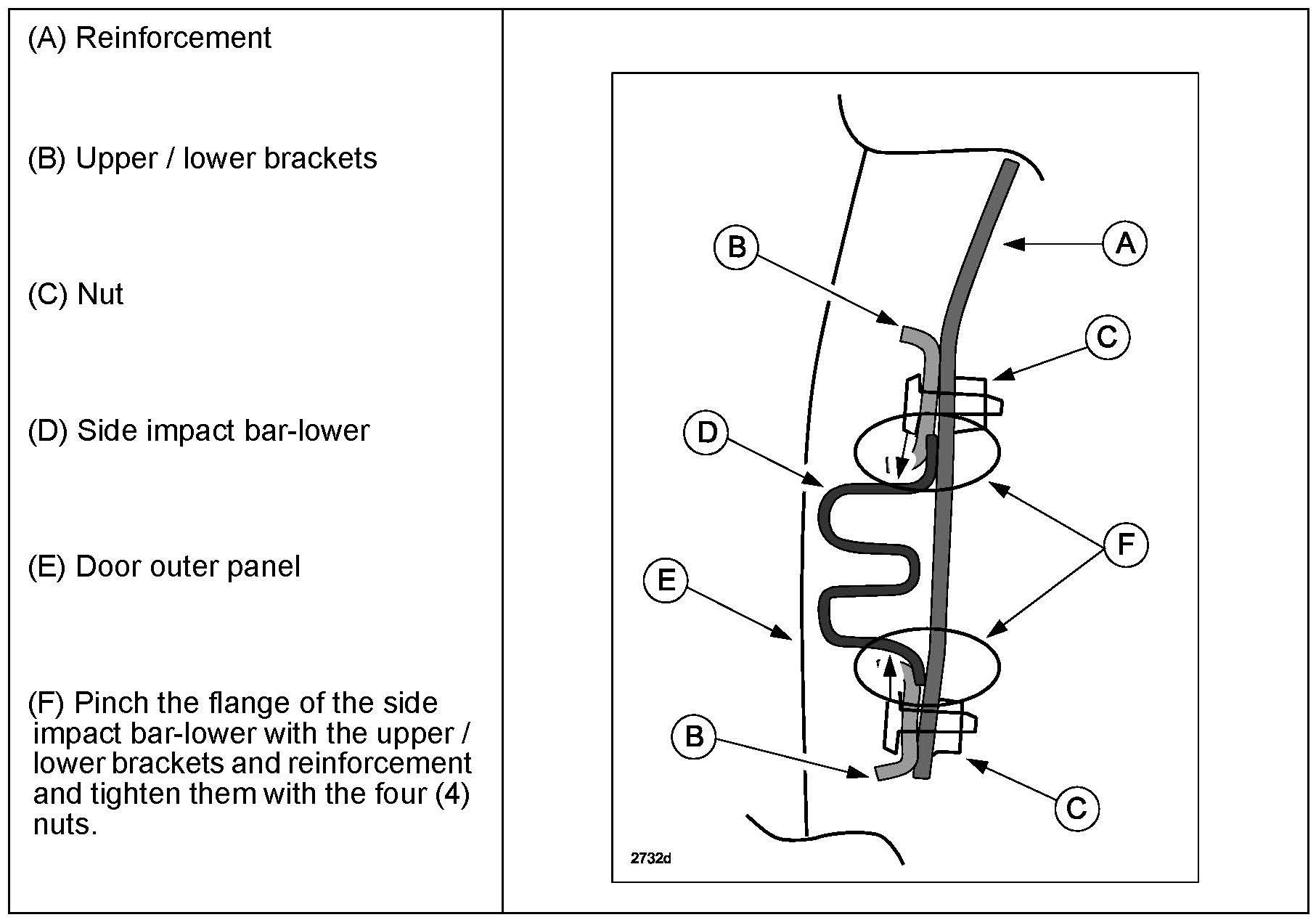

13. Place the two (2) brackets (A) (upper and lower) in the back of the reinforcement and pass the stud bolts through the holes in the reinforcement.

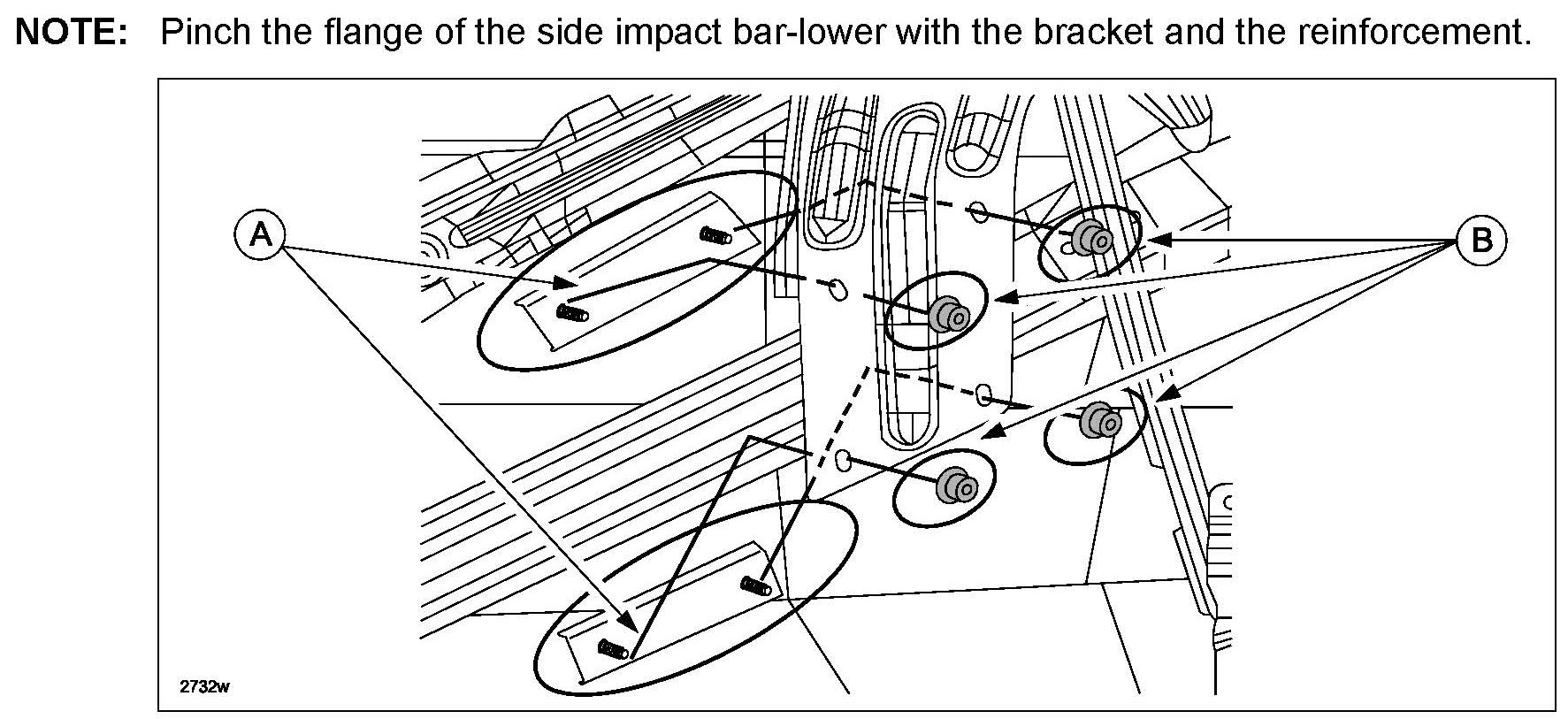

14. Tighten the four (4) nuts (B) to secure the reinforcement onto the side impact bar-lower.
Tightening Torque: 15 ft. lbf. {2.1 kgf-m, 20 Nm}
NOTE:
^ Tighten the brackets so that the side impact bar-lower is pushed toward the direction of the arrow.
^ Ensure that each part does not touch petal to petal face or it will cause rust occurrence.
15. Install other removed parts in the reverse order of removal.
16. Verify the repair.

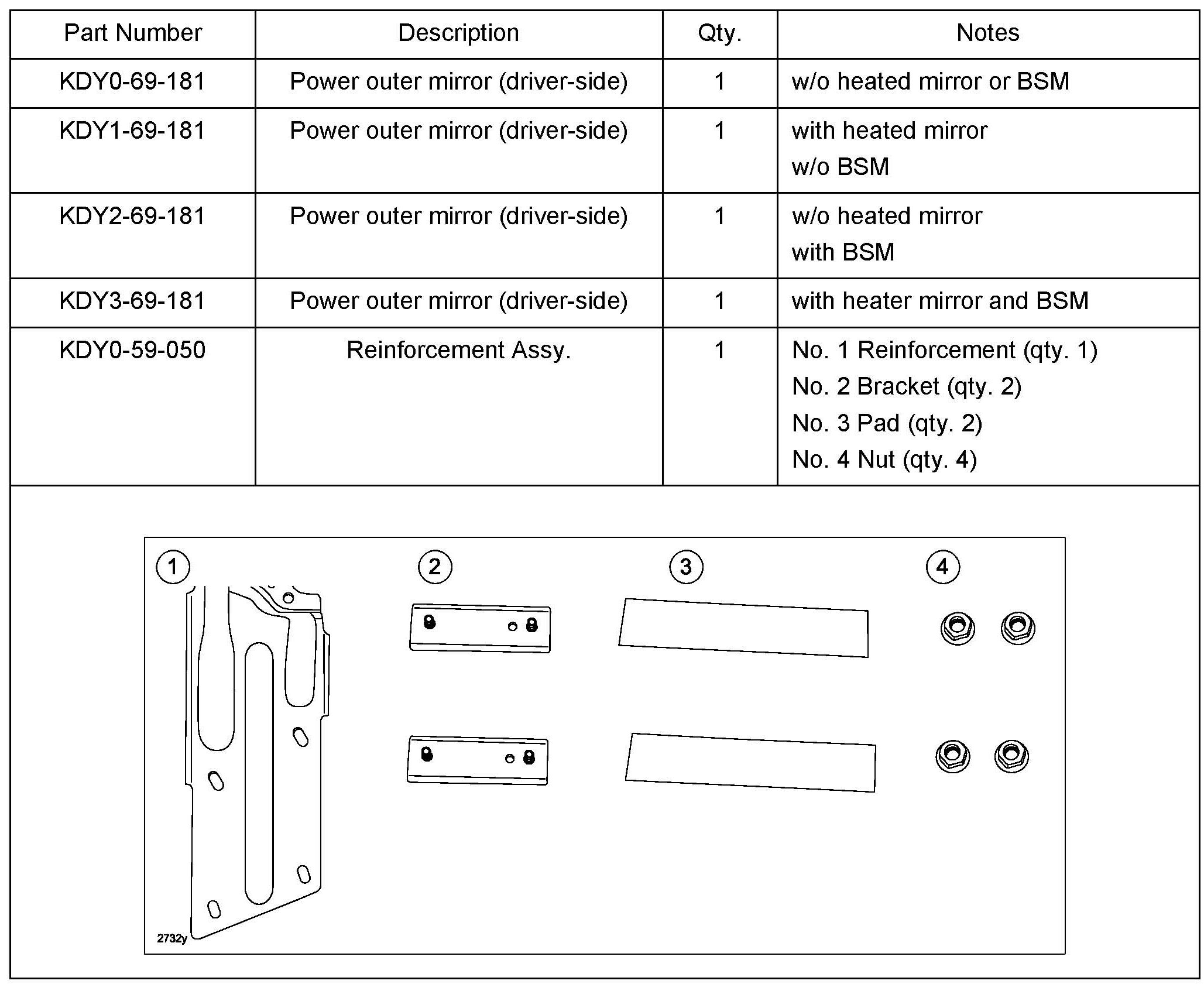

PART(S) INFORMATION
