Body - Liftgate Opener Switch Inoperative

Bulletin No: 09-037/12

Last Issued: 08/31/2012

Subject:
LIFTGATE OPENER SWITCH INOPERATIVE

APPLICABLE MODEL(S)/VINS
2013 CX-5 vehicles with VINs lower than JM3KE******119968
(Produced before April 17, 2012)

DESCRIPTION

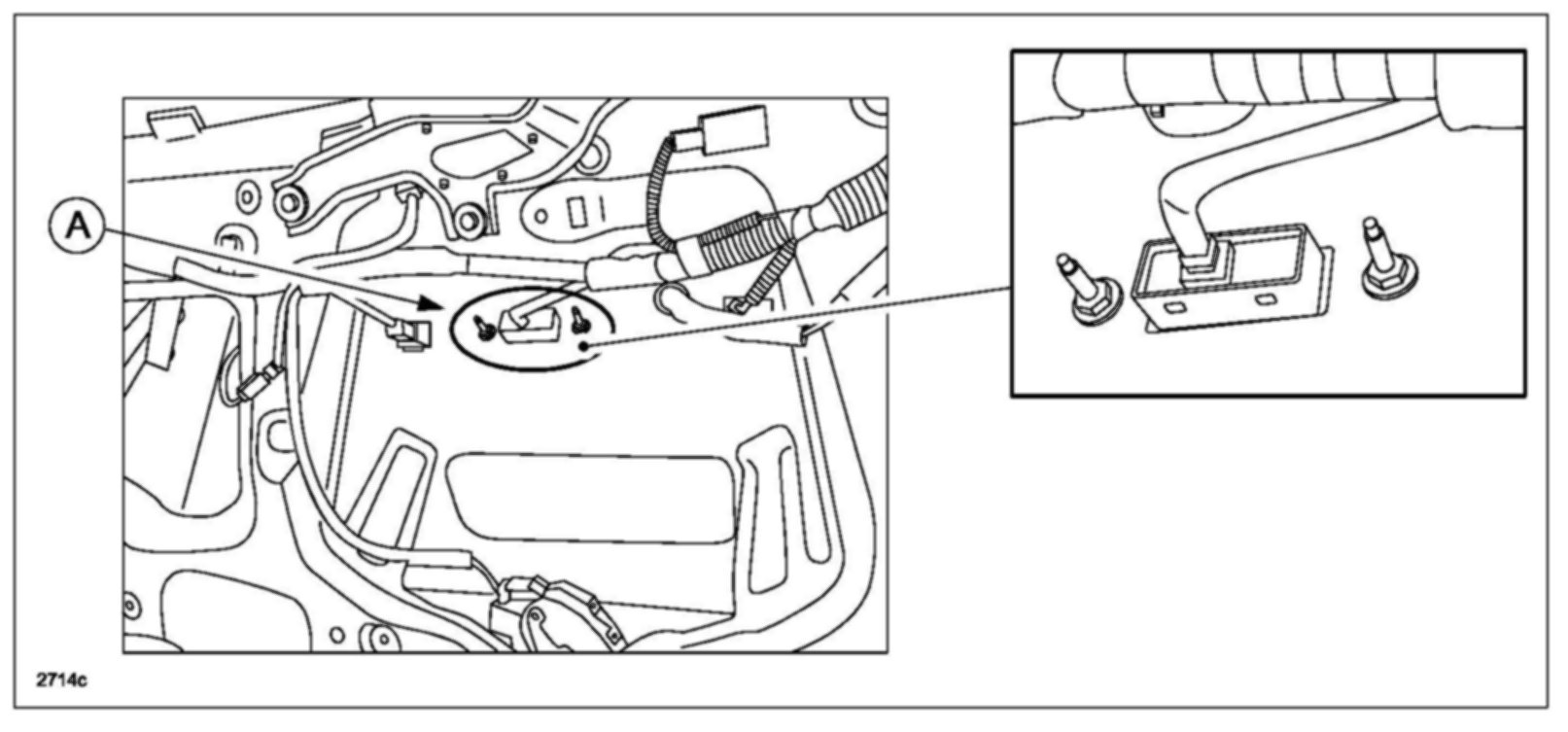

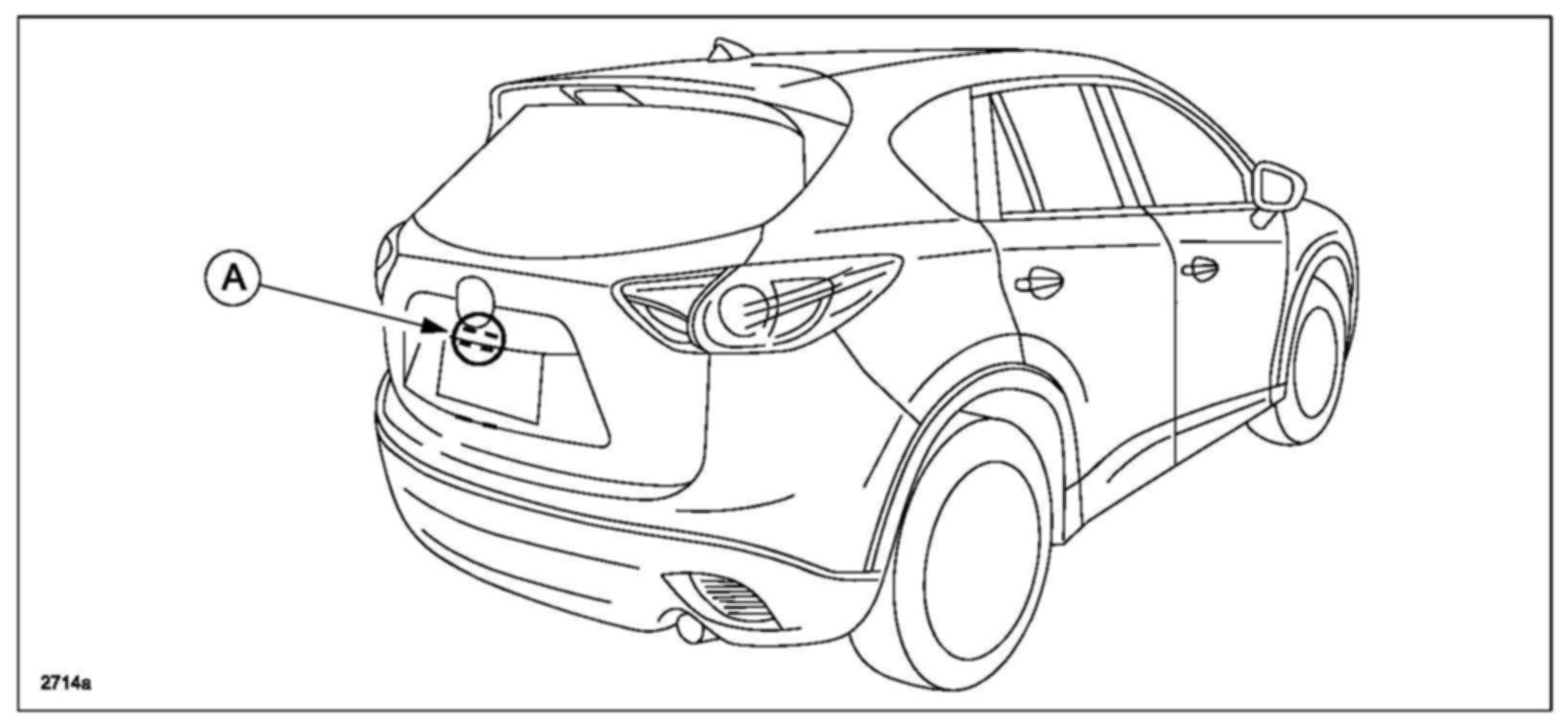

Some vehicles may have a liftgate that does not open when the liftgate opener switch (A) is pushed.

This concern may be due to water entry into the liftgate opener switch connector during a car wash or by other means of condensation. The connector terminals may then become corroded.

At mass-production, a water-proof sheet has been attached to cover the liftgate opener switch connector to prevent water intrusion.

Customers having this concern should have their vehicle repaired using the following repair procedure.

REPAIR PROCEDURE

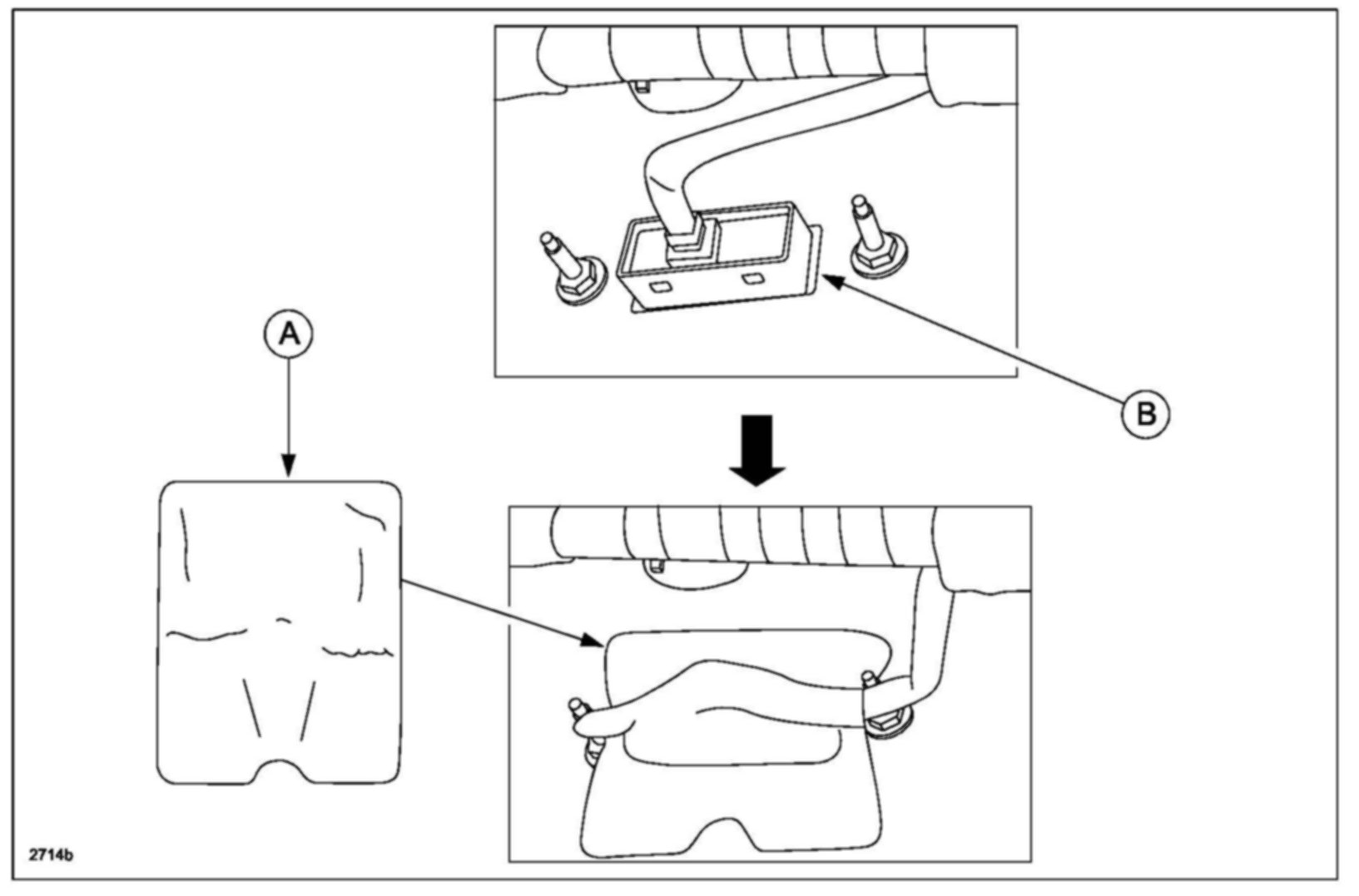

Replace the opener switch with a new one and attach a water-proof sheet (A) over the liftgate opener switch connector (B).

1. Verify the customer concern

2. Remove the liftgate trim according to the MS3 on-line instructions or Workshop Manual (section 09-17 LIFT-GATE LOWER TRIM REMOVAL/INSTALLATION).

3. Disconnect the connector from the liftgate opener switch.





4. Inspect for water intrusion and rust/corrosion on the terminals of the liftgate opener switch connector (A) and the Rear Harness No. 2.

NOTE:
If there is any rust/corrosion found on the Rear Harness No. 2 connector, replace it.

5. Remove the liftgate trim according to the MS3 on-line instructions or Workshop Manual (section 09-14 LIFT-GATE OPENER SWITCH REMOVAL/INSTALLATION).

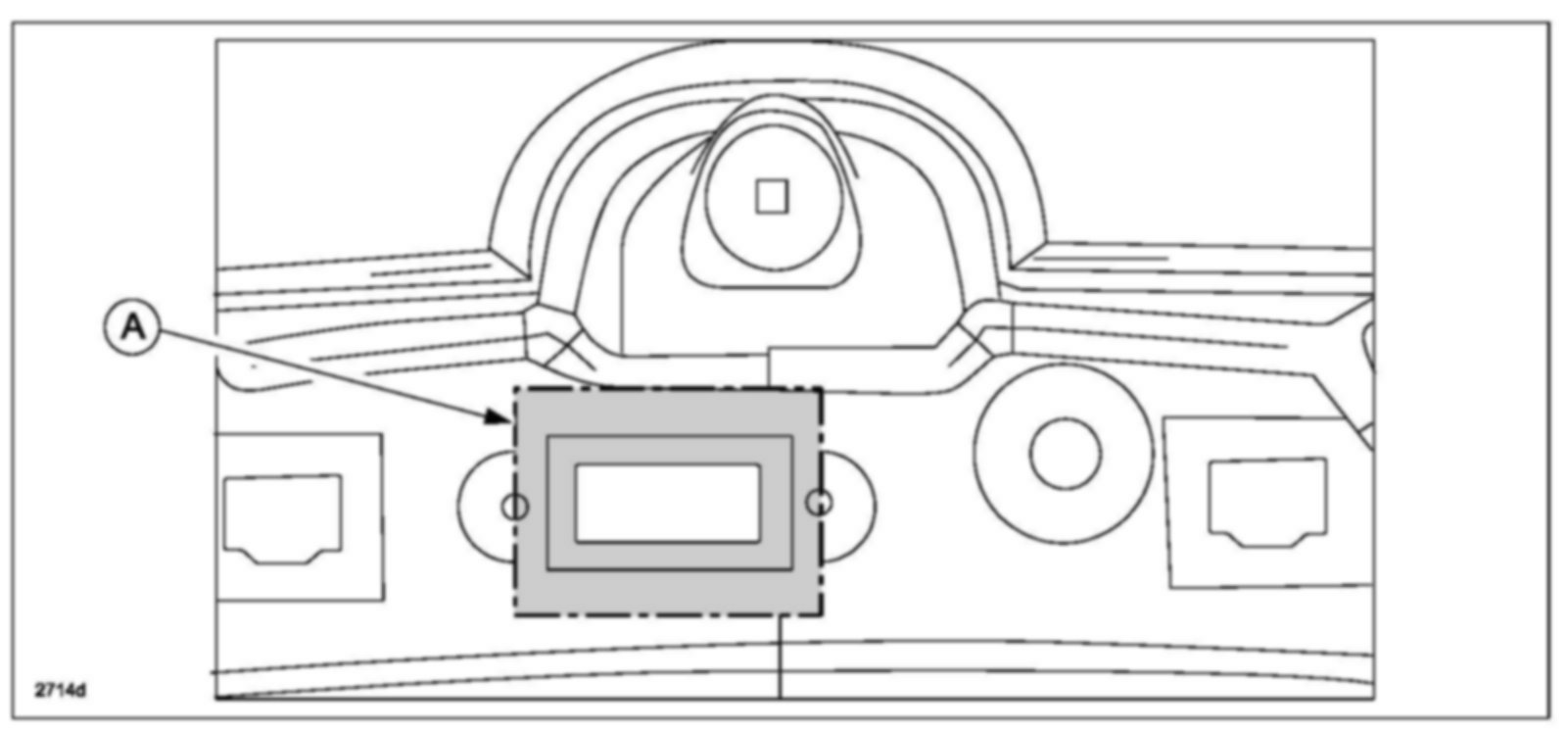

6. Degrease the liftgate panel around the area (A) where the liftgate opener switch is installed.

7. Install the new liftgate opener switch.

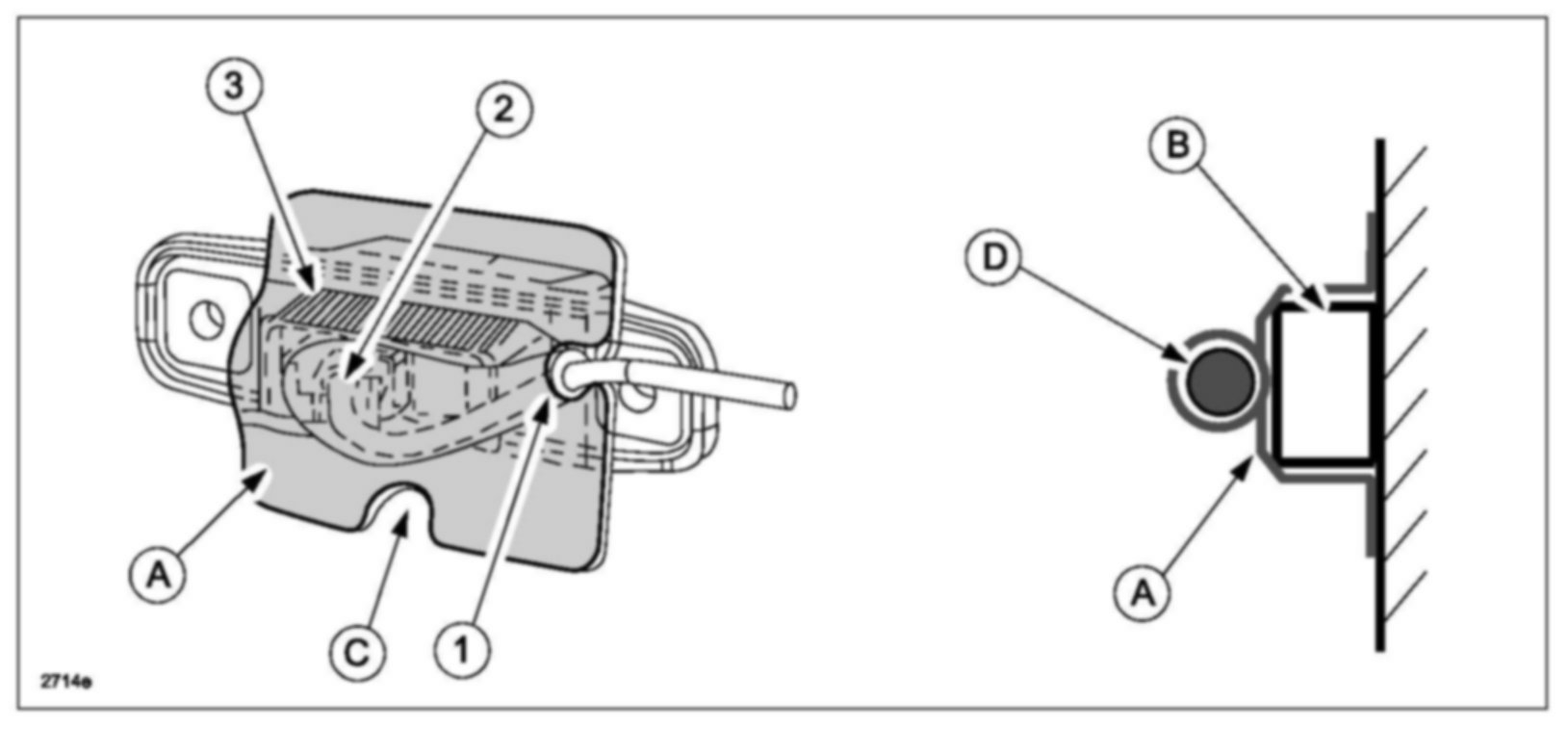

8. Attach the water-proof sheet (A) in the following order (1, 2 and 3) shown above. Fully cover the liftgate opener switch (B) with the cut-out (C) facing downward.

(1) Attach the water-proof sheet all around the harness (D) by pinching and pressing until all gaps/clearances are gone. If there are any gaps/clearances, water may flow into the connector along the harness.

(2) Cover the connectors tightly with the water-proof sheet.

(3) Attach the sheet at the upper and lower part of the switch.

9. Install the removed parts in the reverse order of removal.

10. Verify the repair.

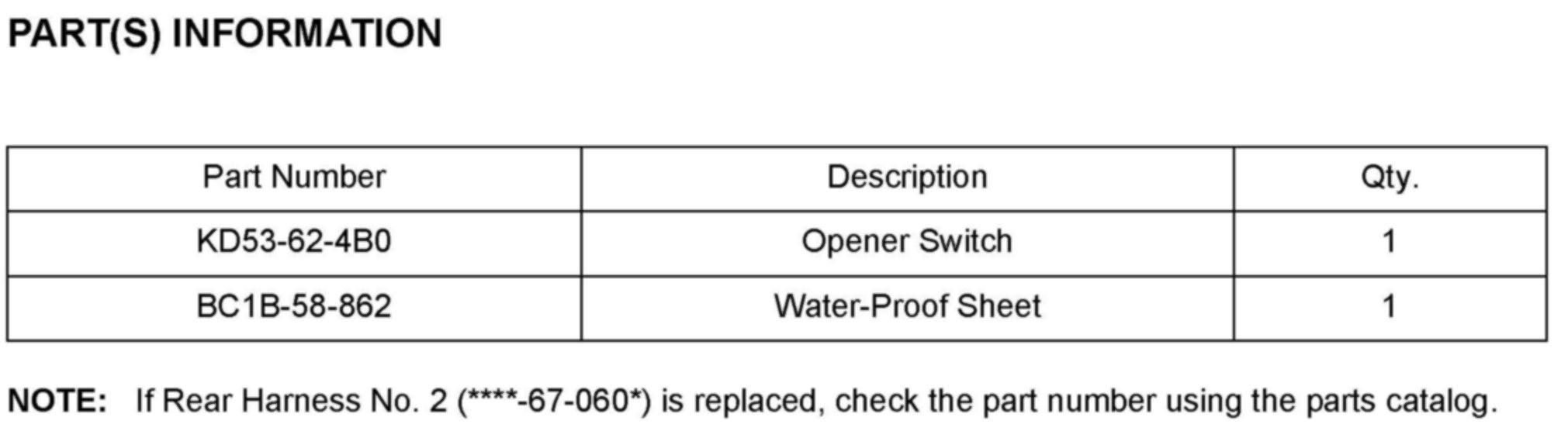

PART(S) INFORMATION

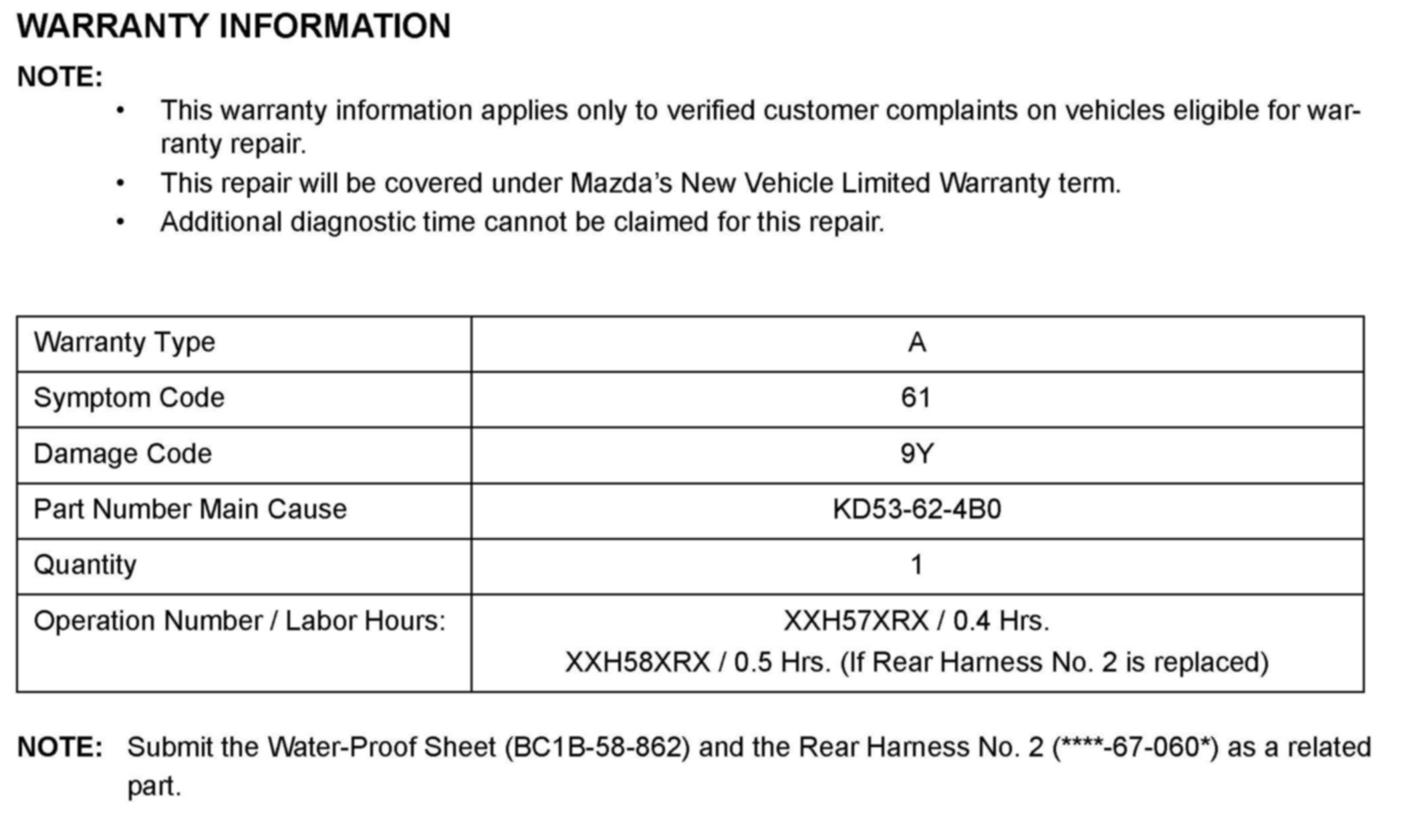

WARRANTY INFORMATION
