Electrical - MIL ON, DTC P2610 Stored In Memory

Bulletin No:
01-001/13

Last Issued:
01/07/2013

Subject:
MIL ON WITH DTC P2610

APPLICABLE MODEL(S)/VINS
2014 Mazda6
2013-2014 CX-5

DESCRIPTION

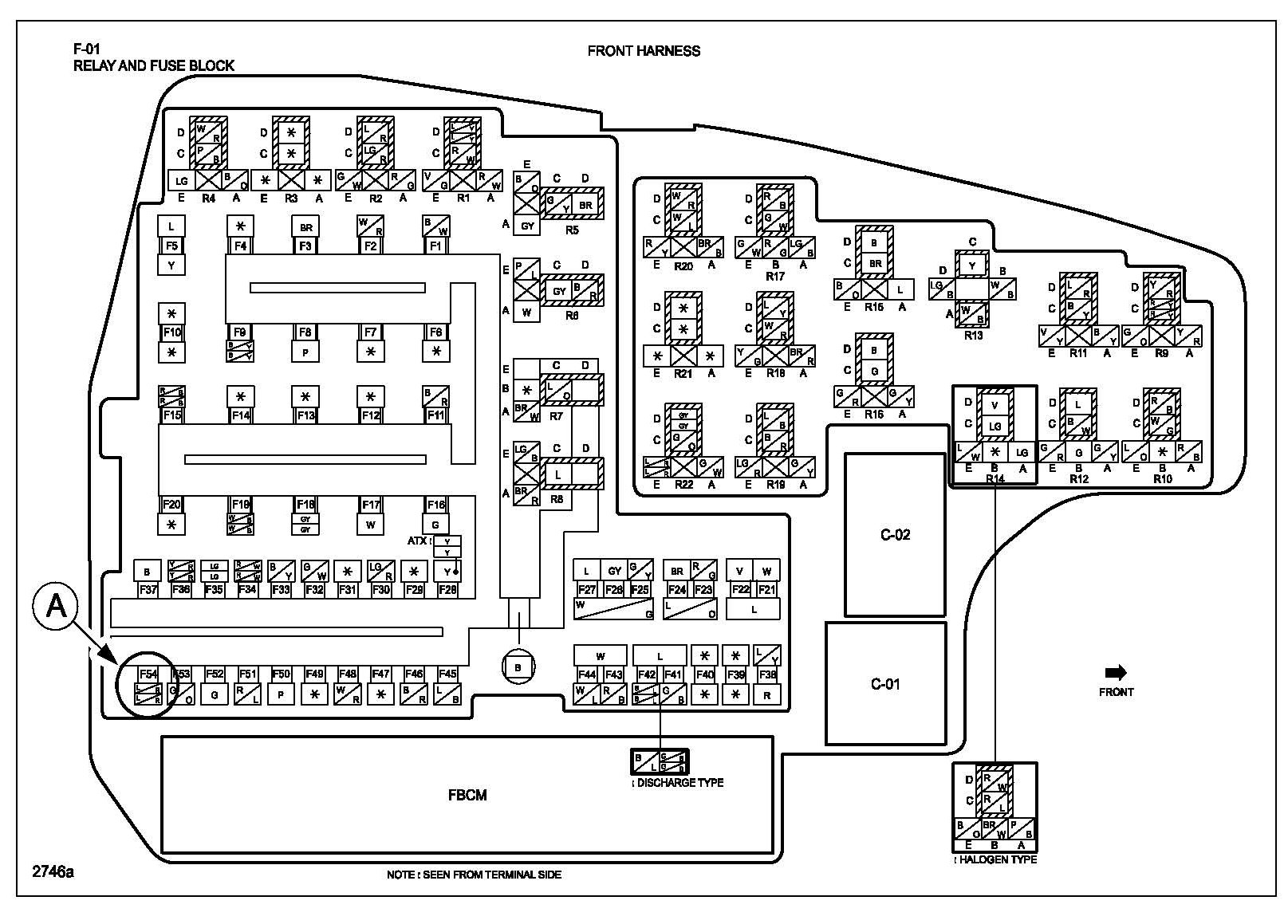

Some vehicles may experience MIL illumination with DTC P2610 (Instrument cluster internal engine off timer performance problem) stored in memory after engine start and room fuse 15A (A) removed.

Vehicles in dealer inventory with this concern should be repaired using the following repair procedure.

REPAIR PROCEDURE

1. Verify DTC P2610 is stored in PCM memory.

2. With the ignition off, install ROOM fuse 15A.

3. Clear DTC P2610 from PCM memory using IDS.

4. Verify no other DTCs are stored in memory. If so, troubleshoot them according to the MS3 online instructions or Workshop Manual.

WARRANTY INFORMATION





NOTE:

^ This repair will be covered only while the vehicle is in Dealer New Car status.

^ Additional diagnostic time cannot be claimed for this repair.
