Fuse: Locations




Fuse Locations

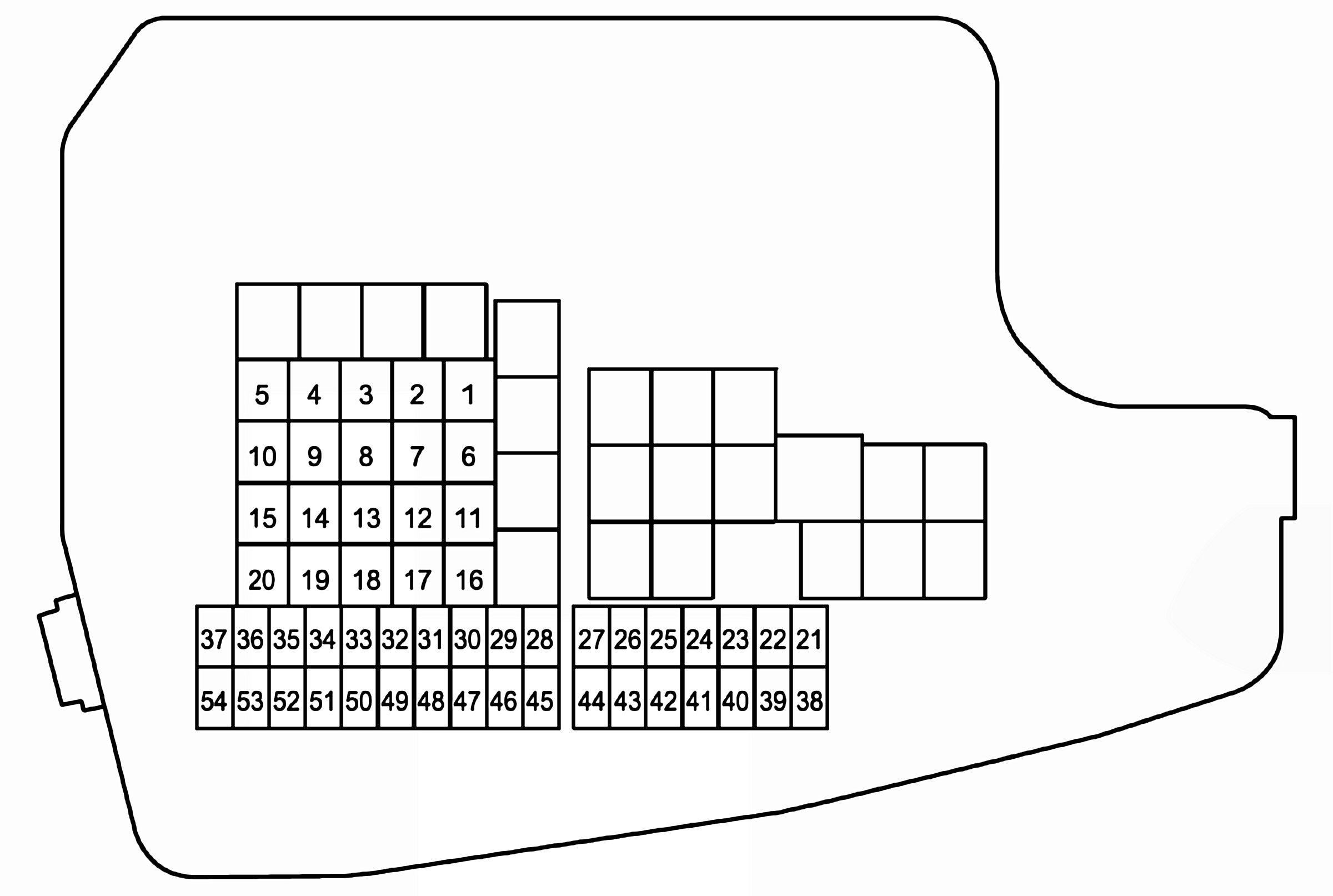

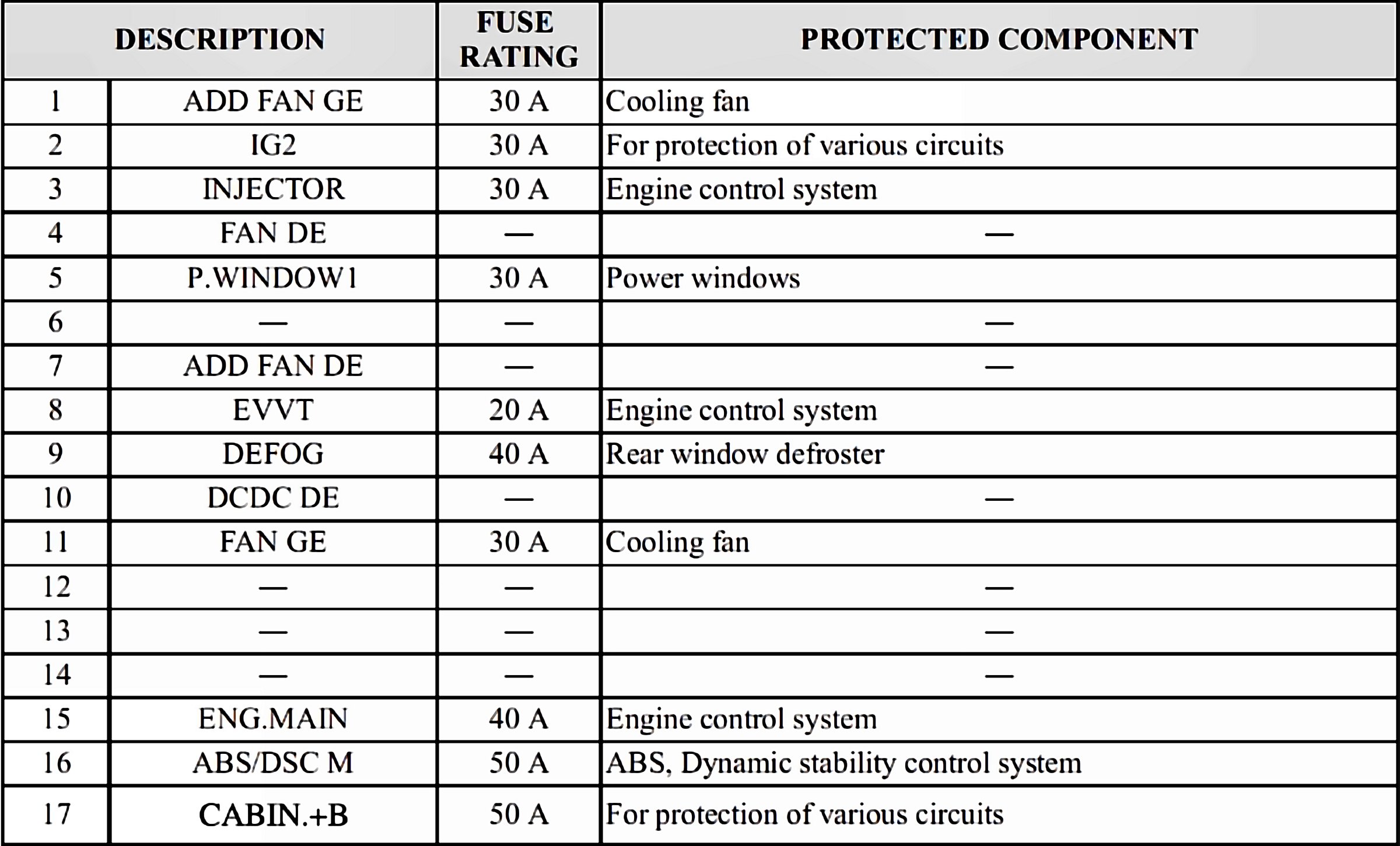

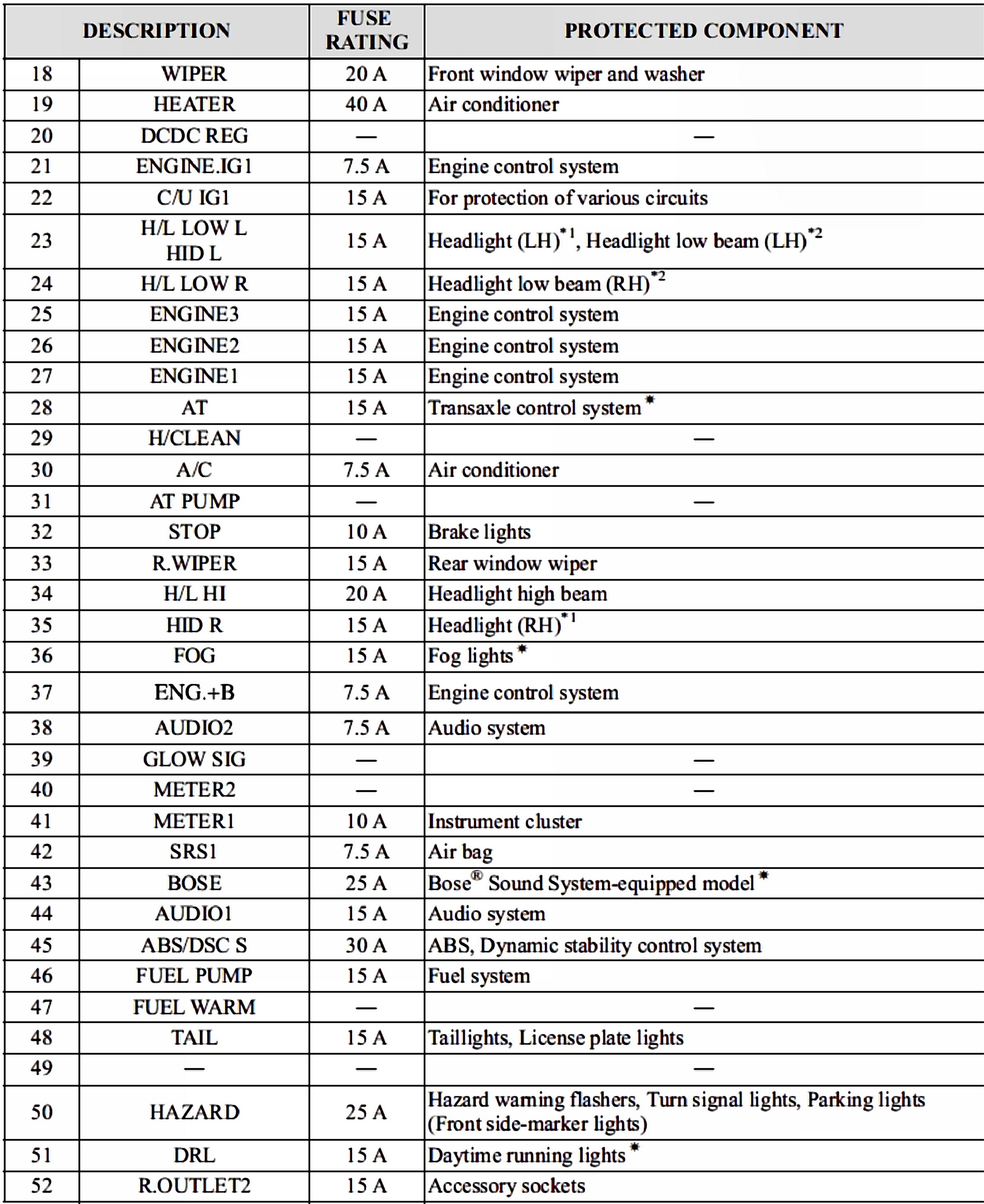

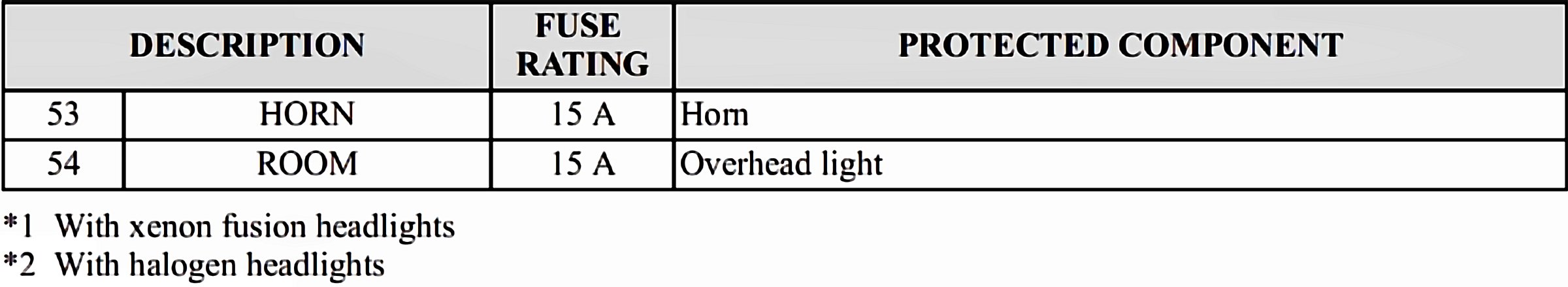

Fuse Block Engine Compartment:

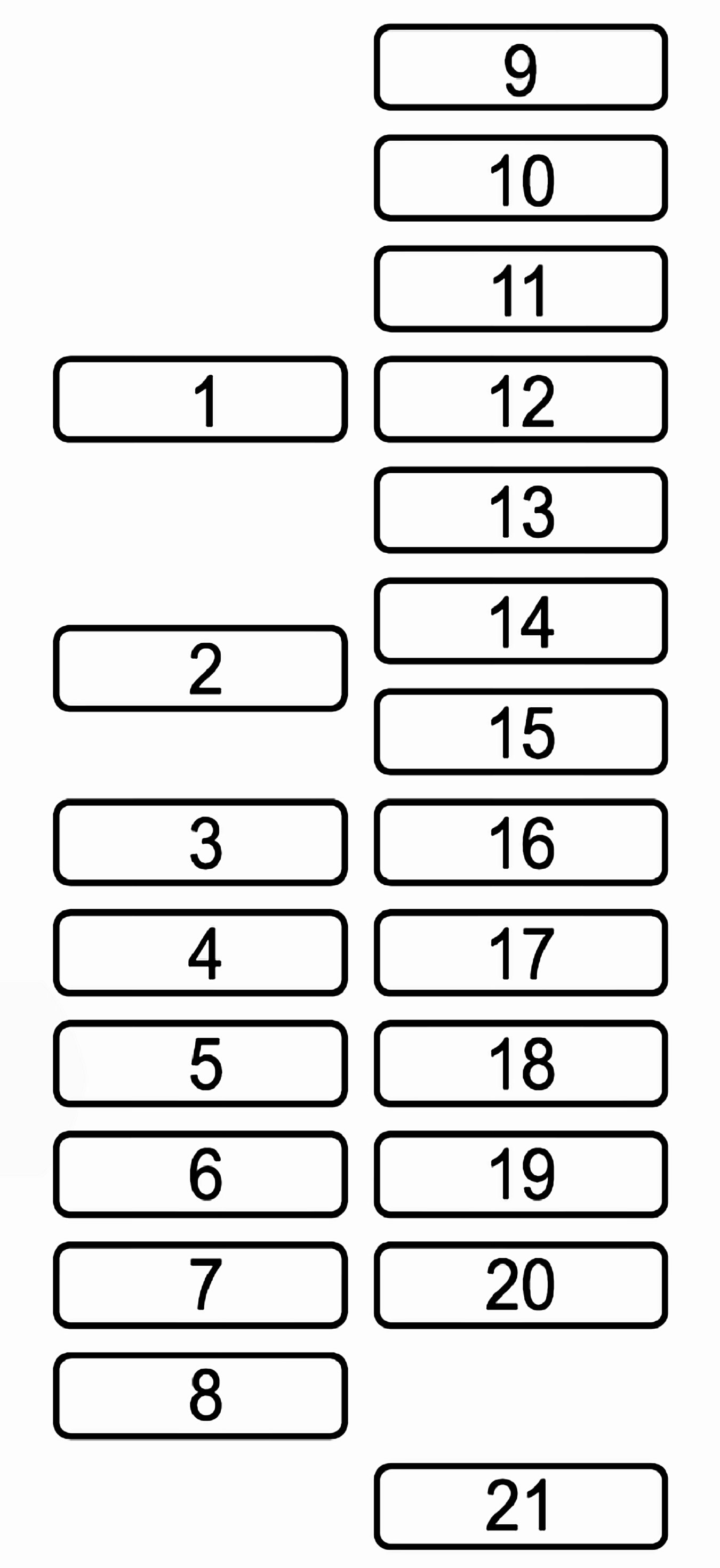

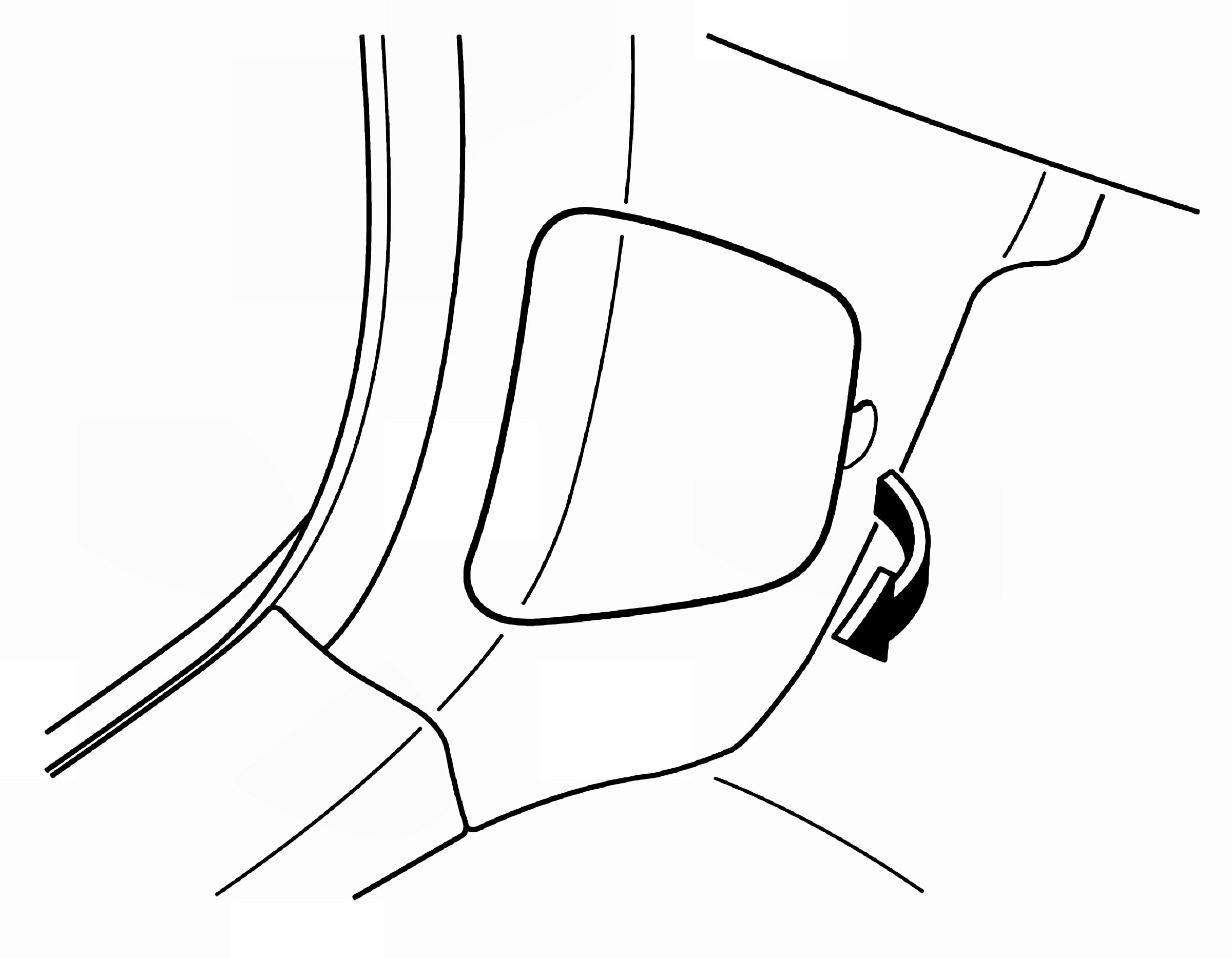

Fuse Block Left Side Vehicle Interior:
