Blower Motor: Testing and Inspection

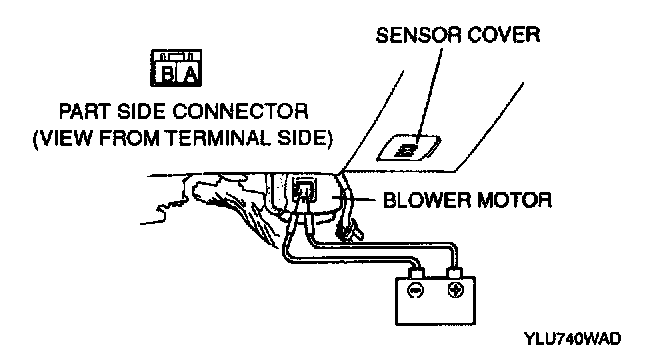

1. Disconnect the blower motor connector.




2. Connect battery positive voltage to terminal A and ground to terminal B of the blower motor connector (male). Verify that the blower motor operates.
- If not as specified, replace the blower motor.
