Vanity Lamp: Service and Repair
1.

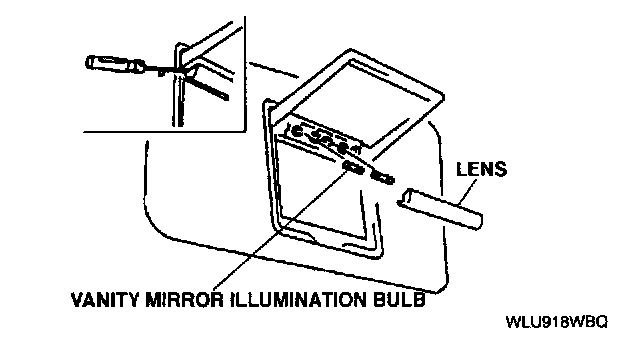

Insert a tape-wrapped, flathead screwdriver as shown in the figure.
2.
Twist the screwdriver to remove the lens.
3.
Remove the vanity mirror illumination bulb.
4.
Install in the reverse order of removal.
