Washer Fluid Level Indicator: Testing and Inspection

WASHER FLUID-LEVEL SENSOR INSPECTION

1. Remove the right side mud guard.
2. Disconnect the washer fluid-level sensor connector.

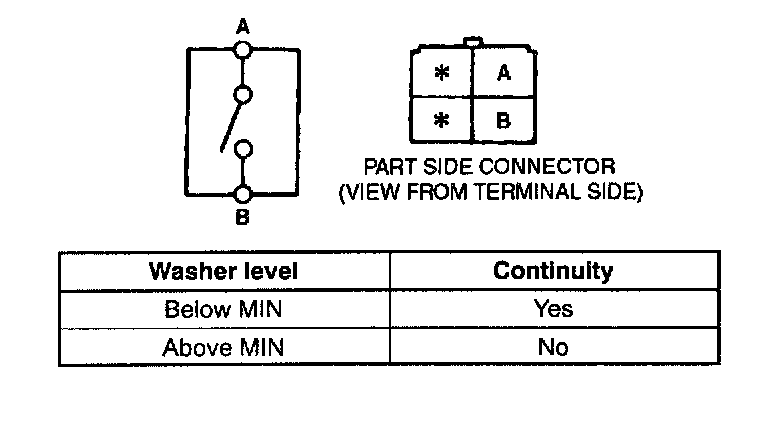

3. Inspect for continuity between terminal A and B of the washer fluid-level sensor.
- If not as specified, replace the washer fluid-level sensor.
