Windshield Washer Hose: Service and Repair

1. Remove the hood insulator.

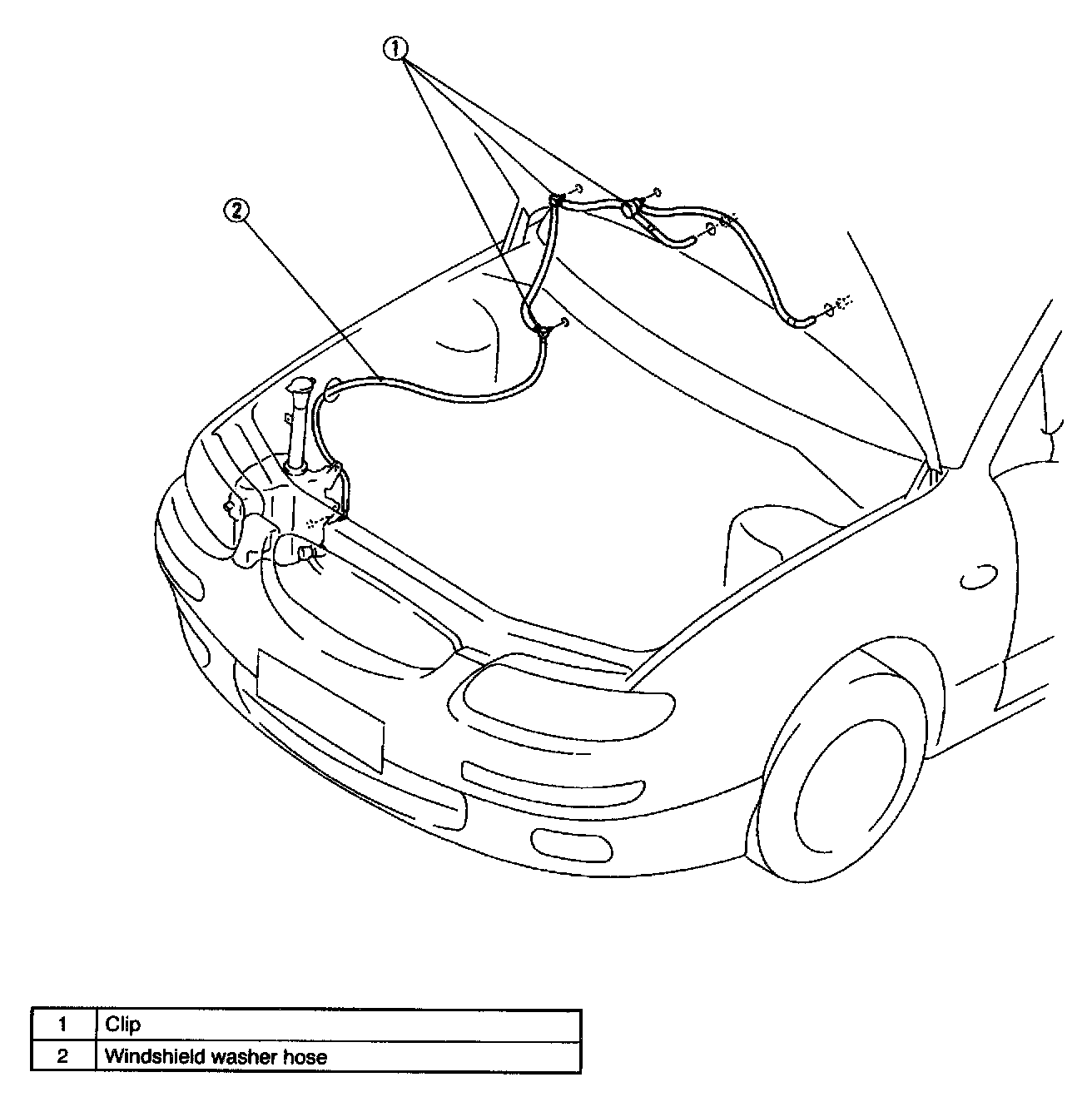

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
