Windshield Washer Motor: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the right side mud guard.
3. Extract the washer fluid.
4. Disconnect the connector.
5. Pull out the windshield washer hose.

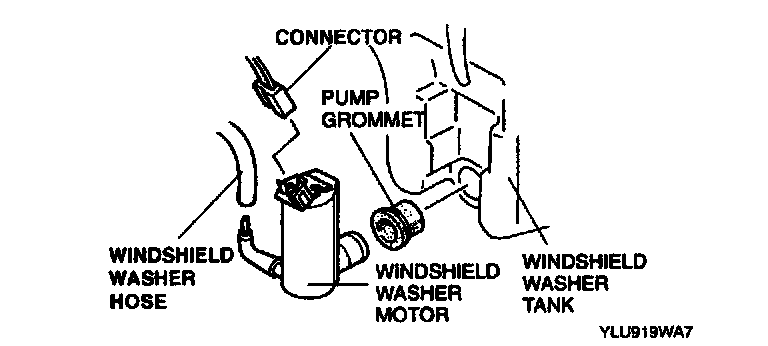

6. Remove the windshield washer motor as shown.
7. Remove the pump grommet.
8. Install in the reverse order of removal.
