Windshield Washer Spray Nozzle: Adjustments
WINDSHIELD WASHER NOZZLE ADJUSTMENT

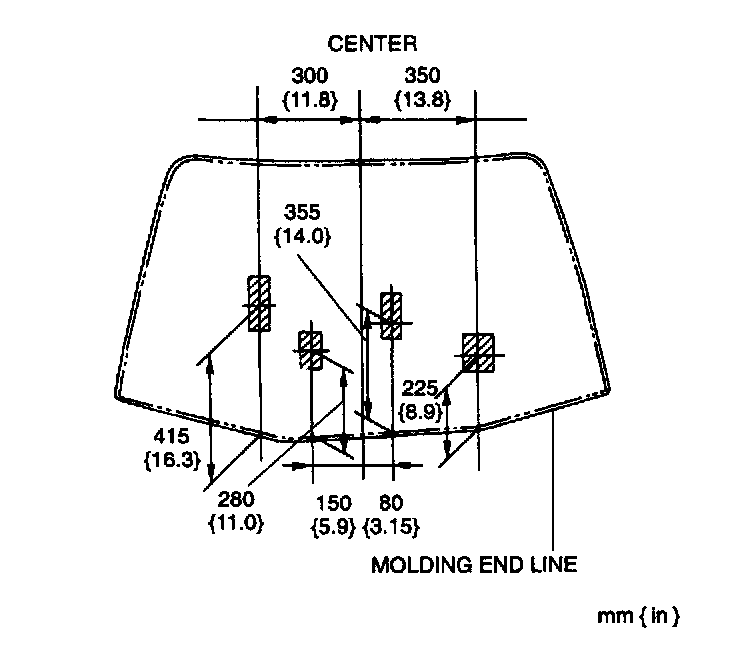

Insert a needle or equivalent too into the spray hole of the windshield washer nozzle and adjust the nozzle direction as shown.
