Windshield Washer Spray Nozzle: Service and Repair

1. Remove the hood insulator.
2. Disconnect the windshield washer hose.

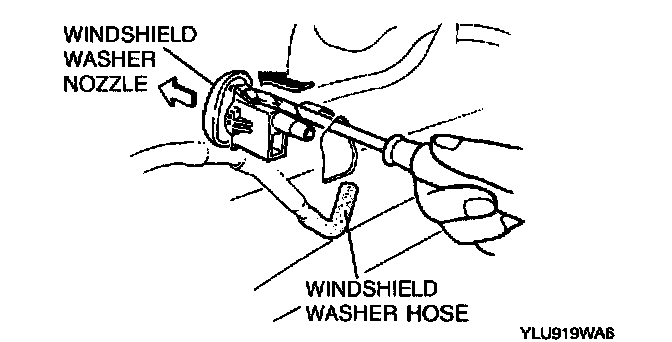

3. Remove the windshield washer nozzle as shown in the figure.
4. Install in the reverse order of removal.
5. Adjust the windshield washer nozzle.
