Access Cover: Service and Repair

PLUG HOLE PLATE REMOVAL/INSTALLATION

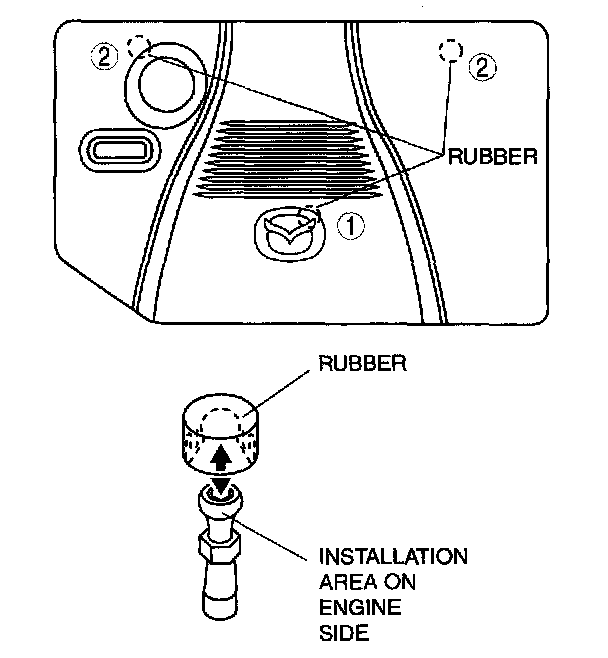

1. Remove the plug hole plate in the order indicated in the figure.

Note: Lift off and remove the plug hole plate from the installation areas as shown in the figure.

2. Install the plug hole plate in the reverse order of removal.
