Home >> Mazda >> 2005 >> 3 L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C02 - C06

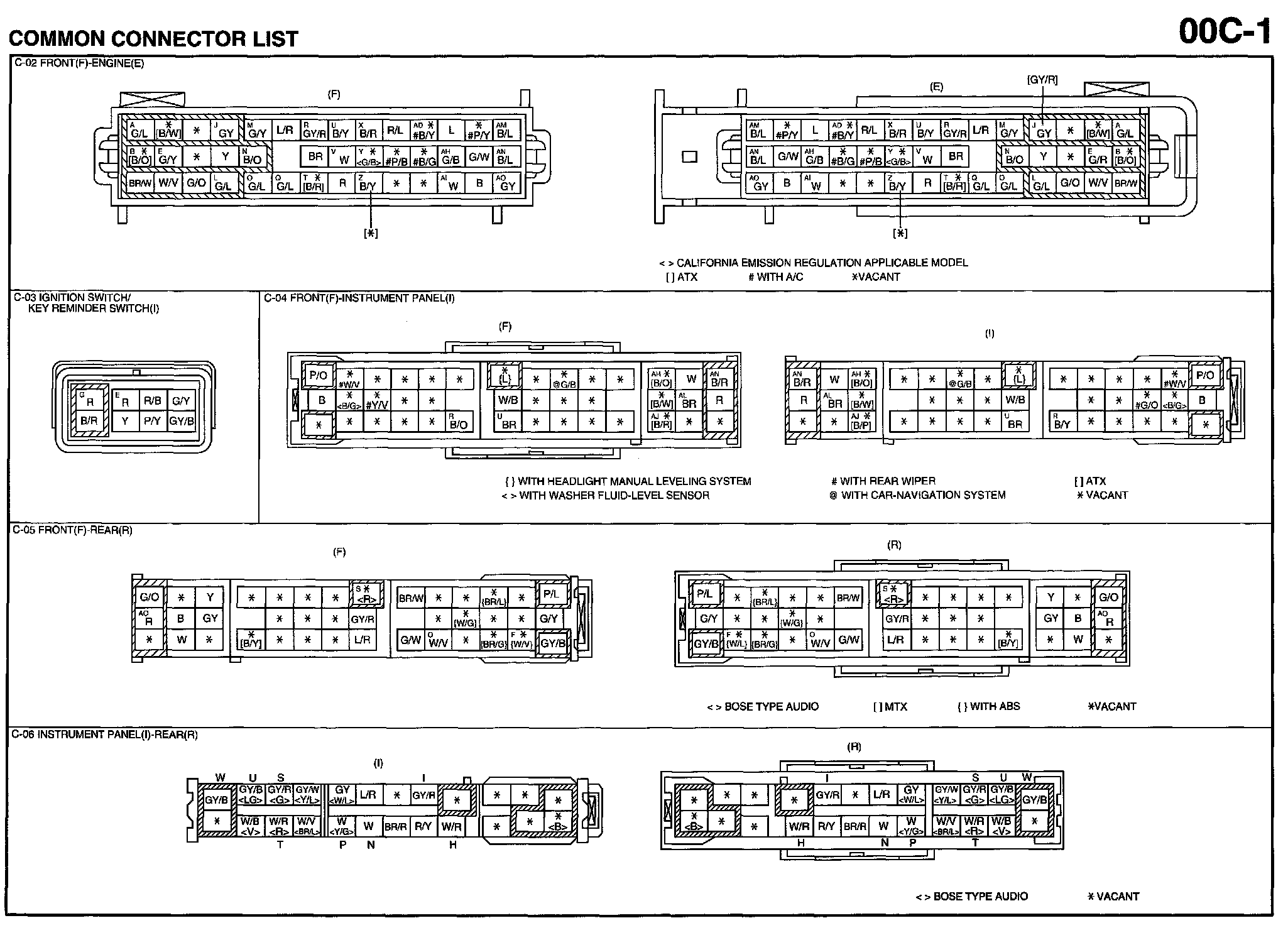

C02 - C06

C02 - C06:
