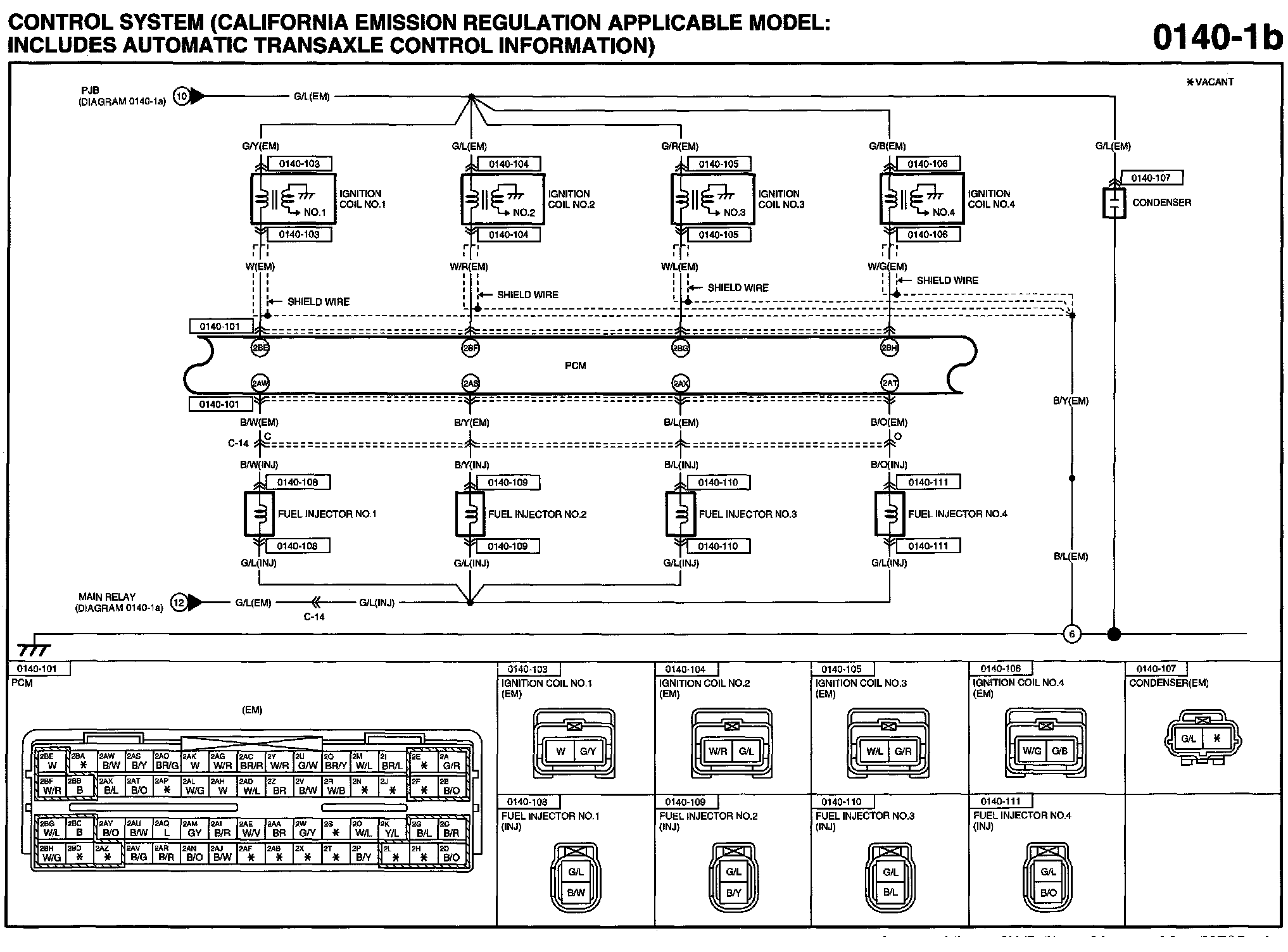

Diagram 0140-1b (Control System (California Emission Regulation Applicable Model))

Diagram 0140-1b:
