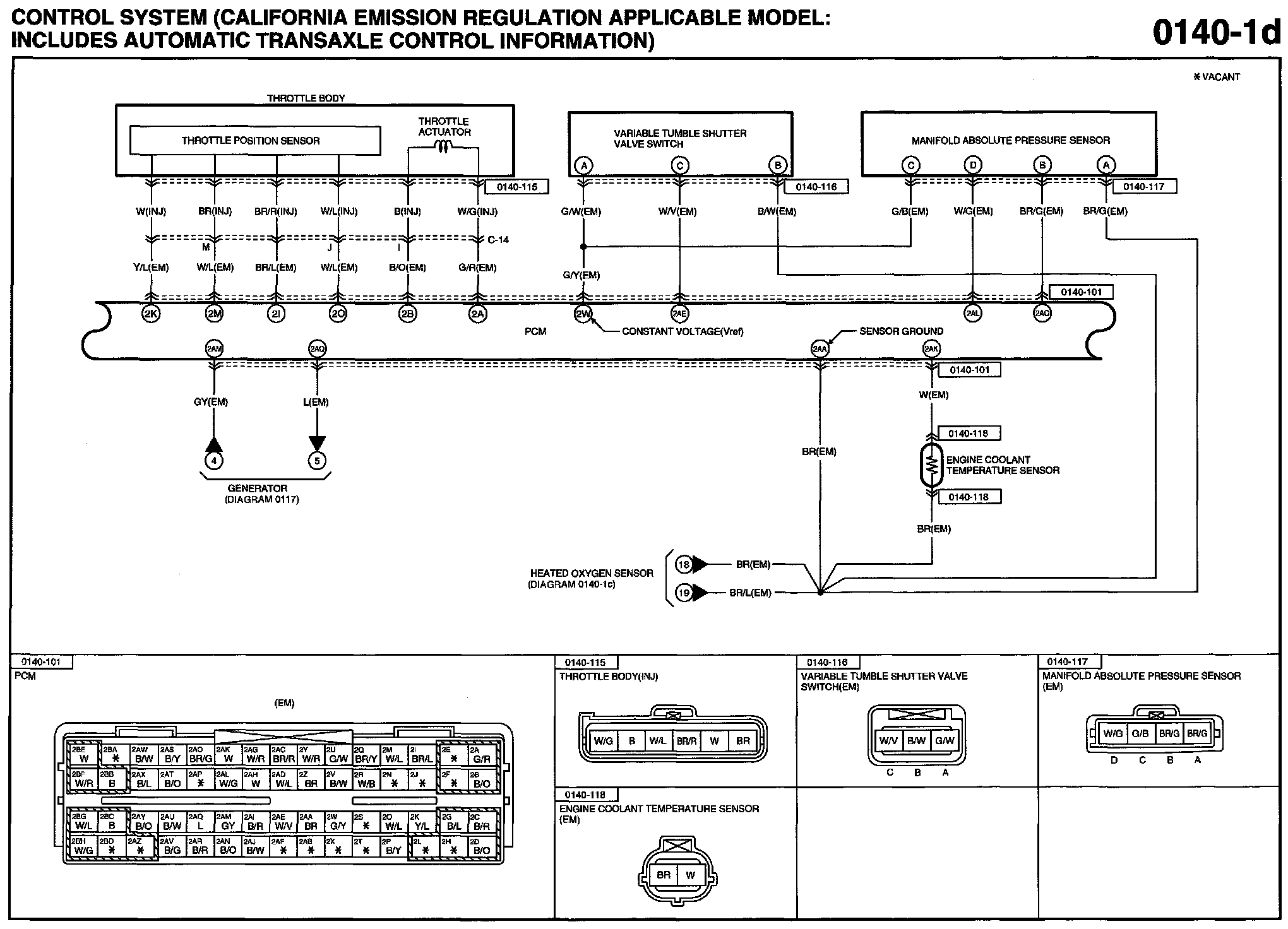

Diagram 0140-1d (Control System (California Emission Regulation Applicable Model))

Diagram 0140-1d:
