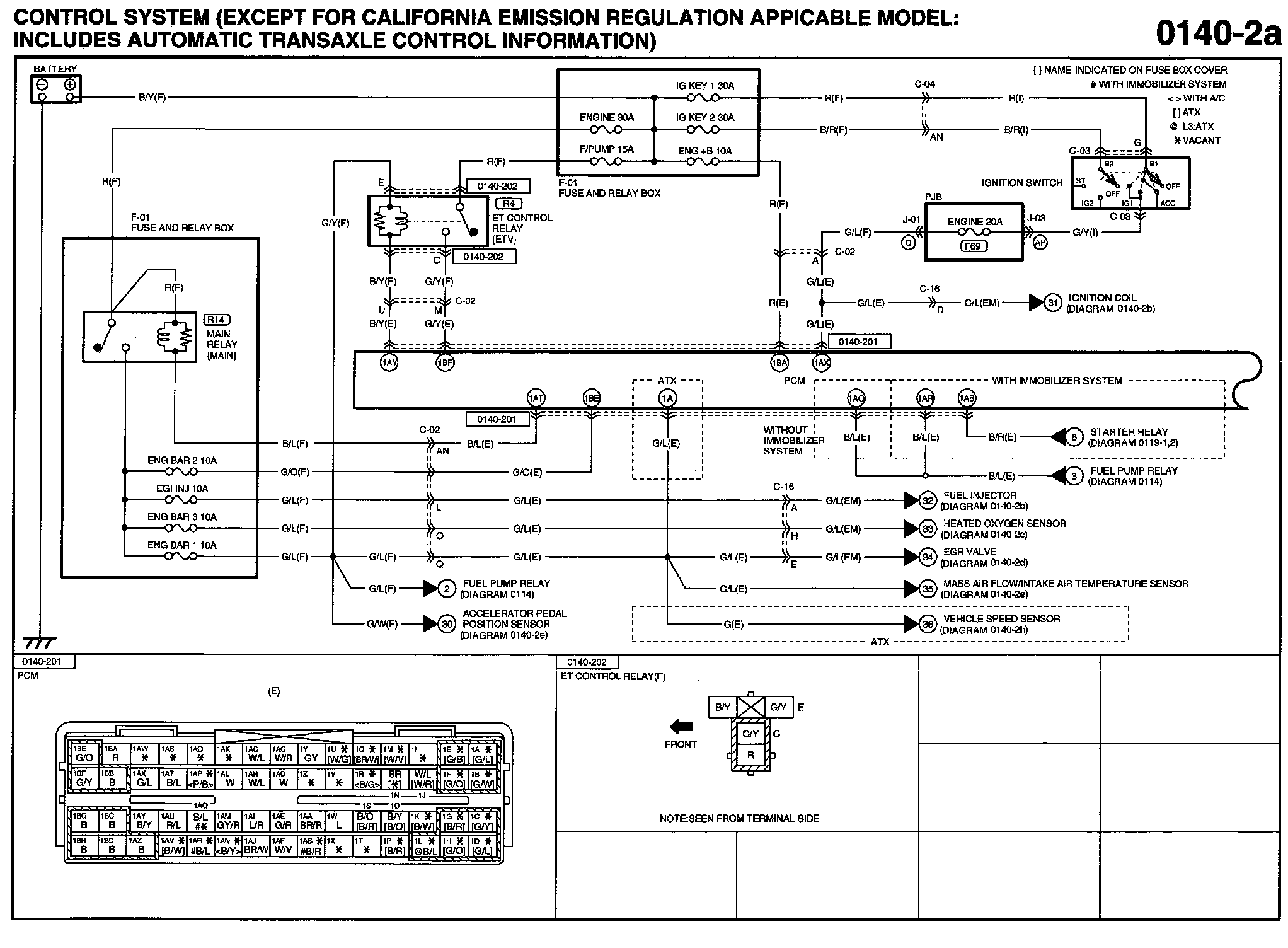

Diagram 0140-2a (Control System (Except For California Emission Regulation Applicable Model))

Diagram 0140-2a:
