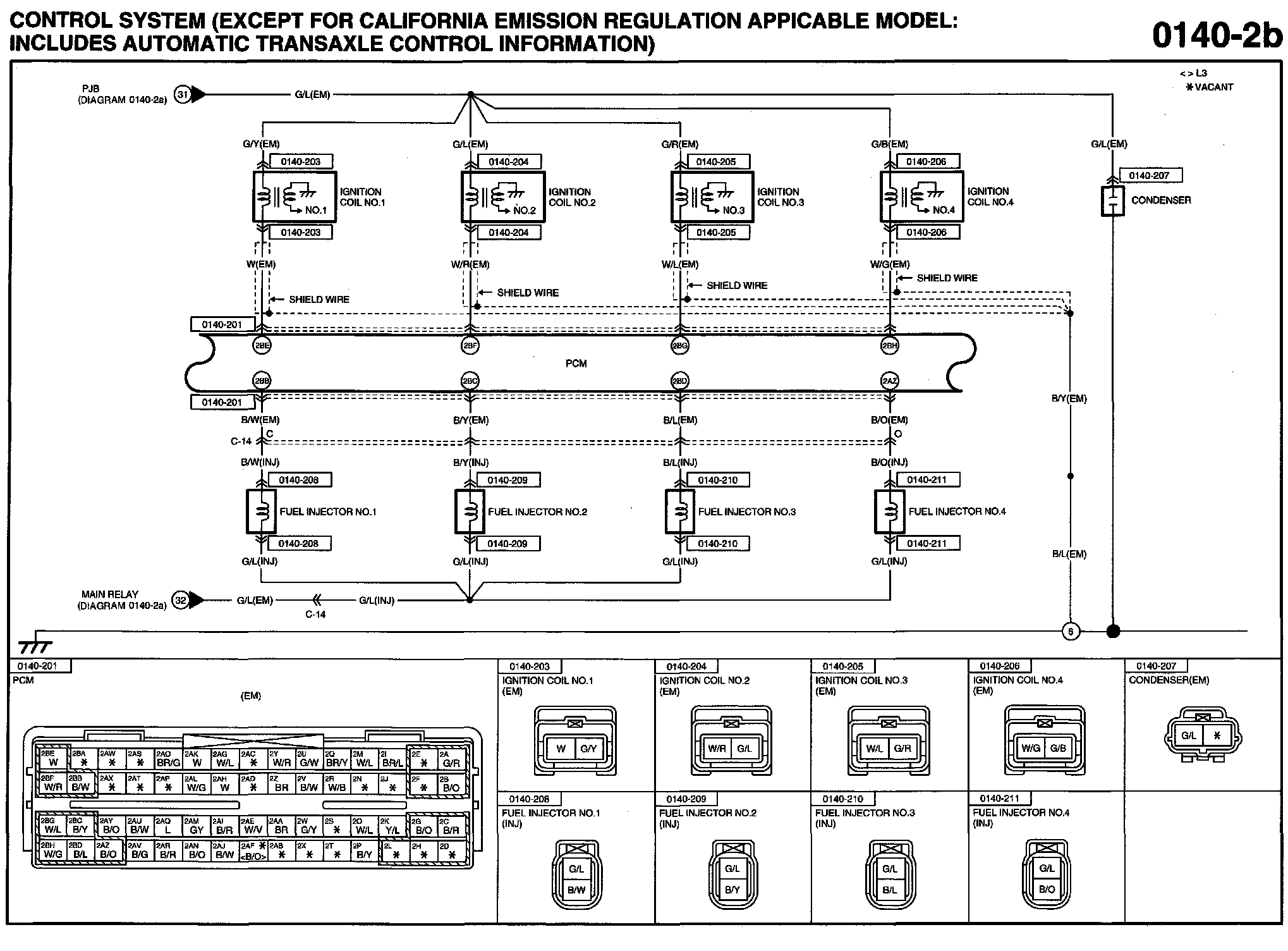

Diagram 0140-2b (Control System (Except For California Emission Regulation Applicable Model))
Diagram 0140-2b (Control System (Except For California Emission Regulation Applicable Model))
Diagram 0140-2b:
