Cabin Air Filter / Purifier: Service and Repair
AIR FILTER COVER REMOVAL/INSTALLATION1. Disconnect the negative battery cable.
2. Remove the PASSENGER JUNCTION BOX (PJB) and PJB bracket. Component Locations
3. Remove the side wall.
4. Disconnect the evaporator temperature sensor connector.

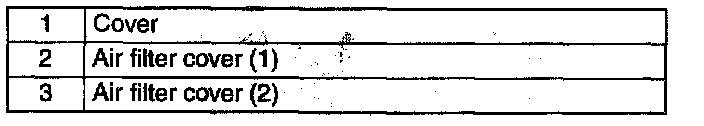

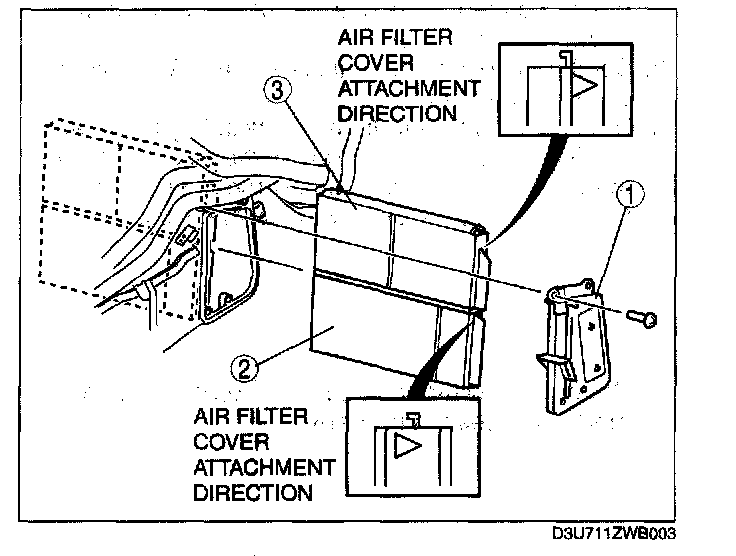

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
