Oil Pump Preinspection

Oil Pump Preinspection

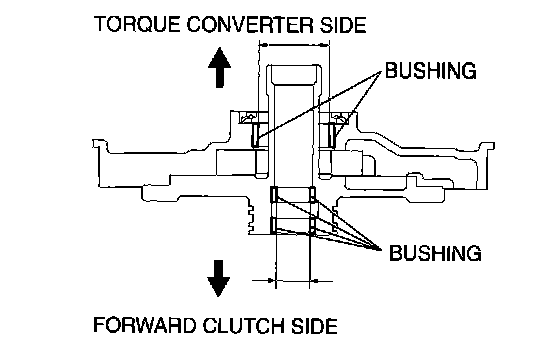

1. Measure the bushing of the oil pump.
Bushing inner diameter
Torque converter side
Standard: 40.015 - 40.040 mm (1.57539 - 1.57637 inch)
Maximum: 40.060 mm (1.57716 inch)
Forward clutch side
Standard: 19.000 - 19.021 mm (0.74803 - 0.74885 inch)
Maximum: 19.041 mm (0.74964 inch)
2. If not as specified, replace the oil pump housing and oil pump cover.
