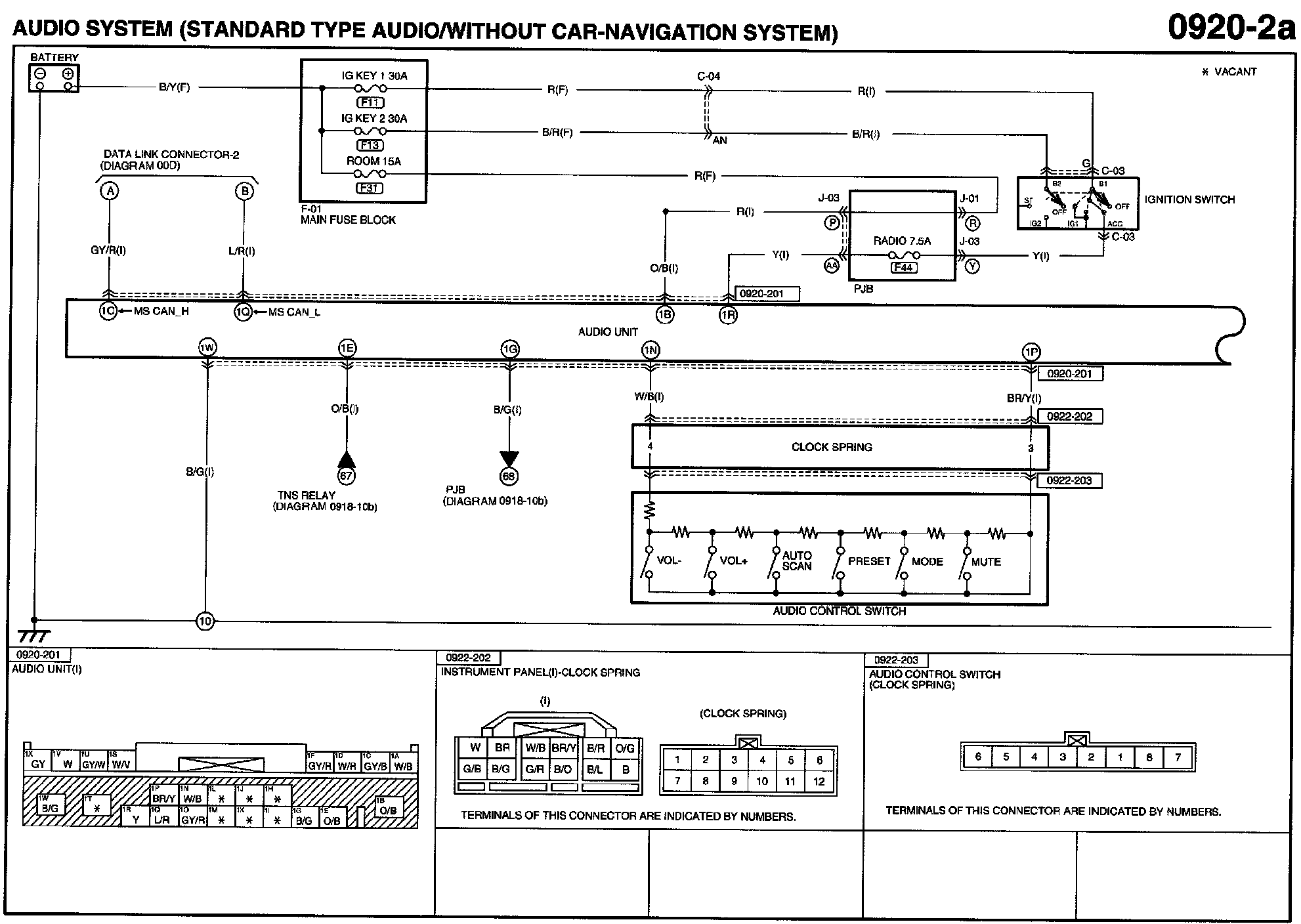

Diagram 0920-2a (Audio System (Standard Type Audio/Without Car-Navigation System)
Diagram 0920-2a (Audio System (Standard Type Audio/Without Car-Navigation System)
Diagram 0920-2a:
