Home >> Mazda >> 2006 >> 3 L4-2.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Locations

Engine Lubrication: Locations

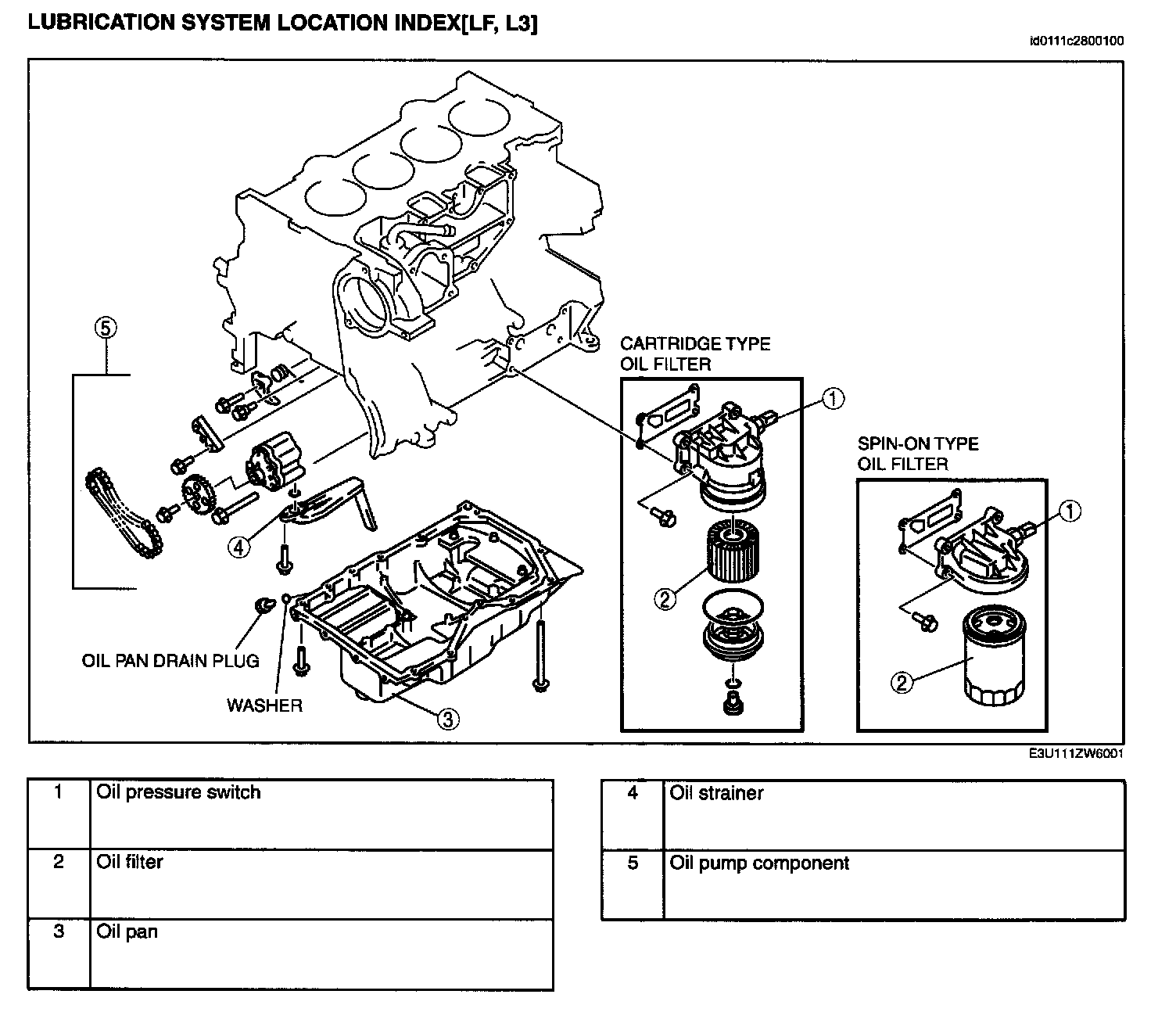

Lubrication System Location Index (LF, L3):
