Symptom Related Diagnostic Procedures

Symptom Troubleshooting(Instrument Cluster):

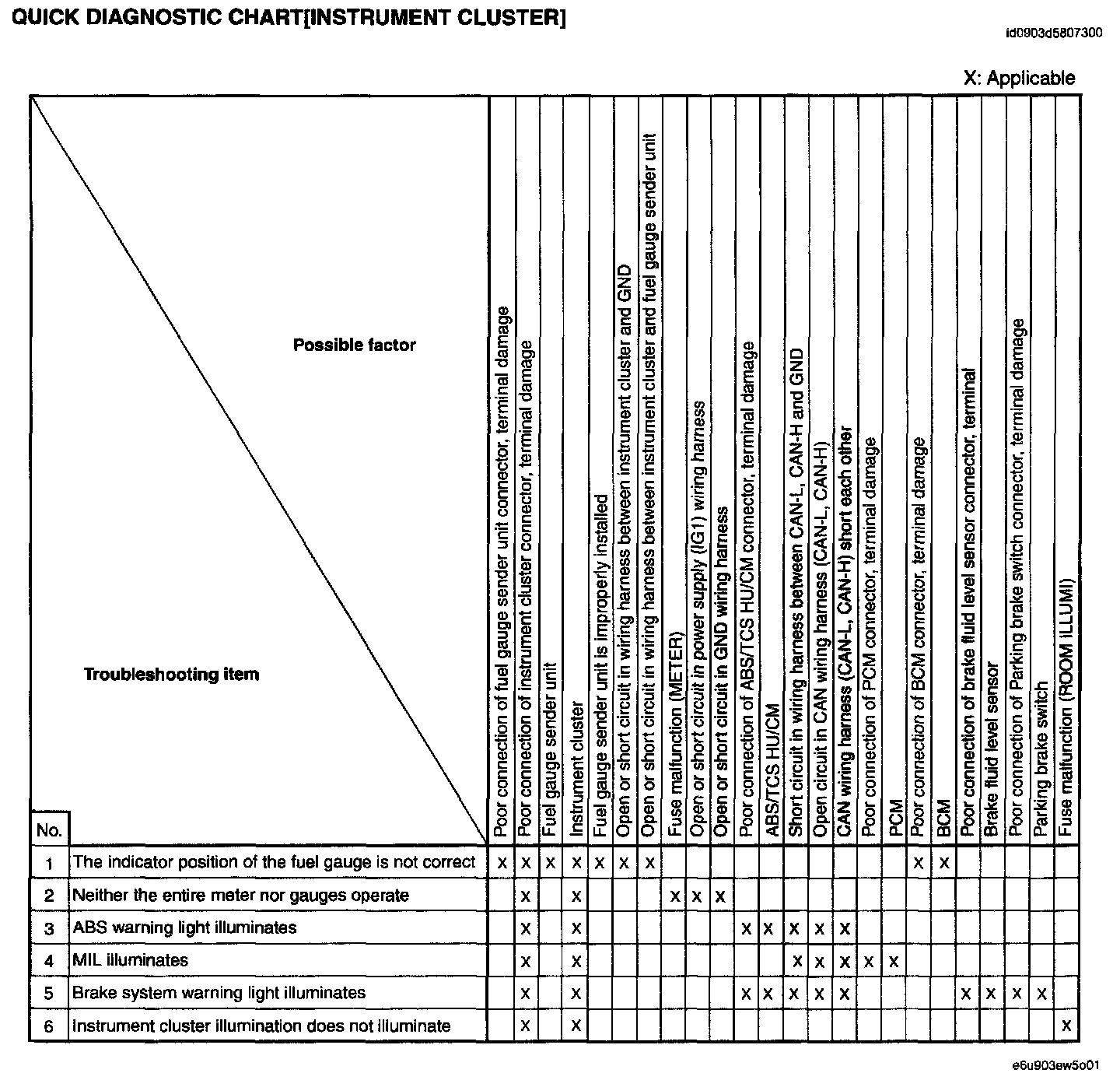

Quick Diagnostic Chart(Instrument Cluster):
