System Specifications

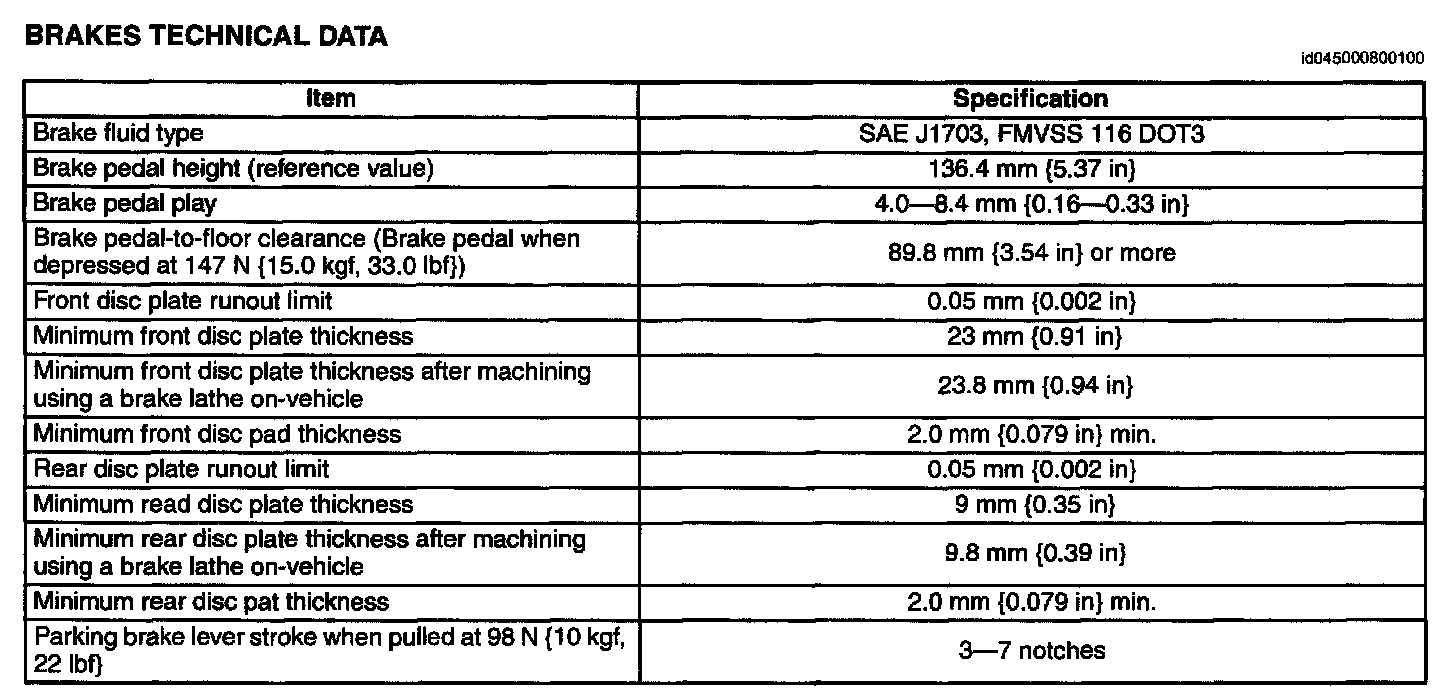

Brakes Technical Data:

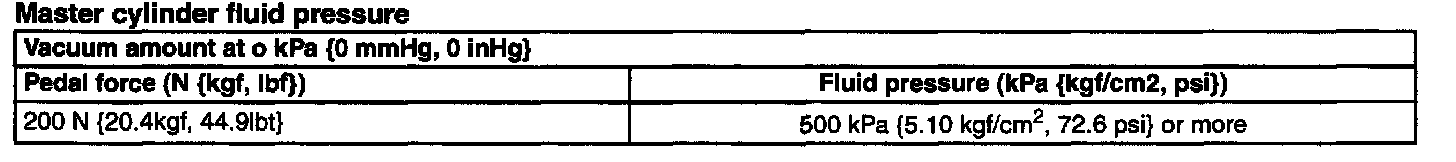

Master Cylinder Fluid Pressure:

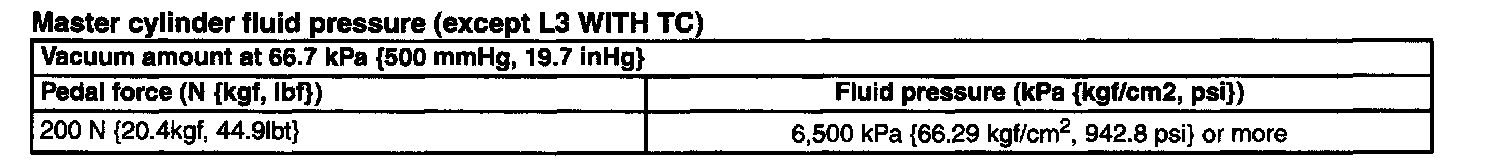

Master Cylinder Fluid Pressure (except L3 With TC):

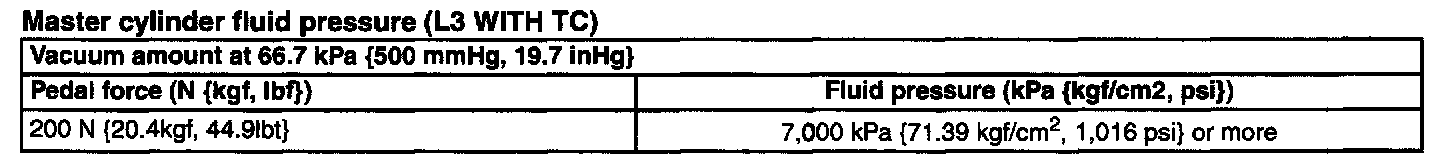

Master Cylinder Fluid Pressure (L3 With TC):

Proportioning Valve Fluid Pressure:
