Operation CHARM: Car repair manuals for everyone.

Home >> Mazda >> 2007 >> Mazdaspeed6 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> C-30 to C-35

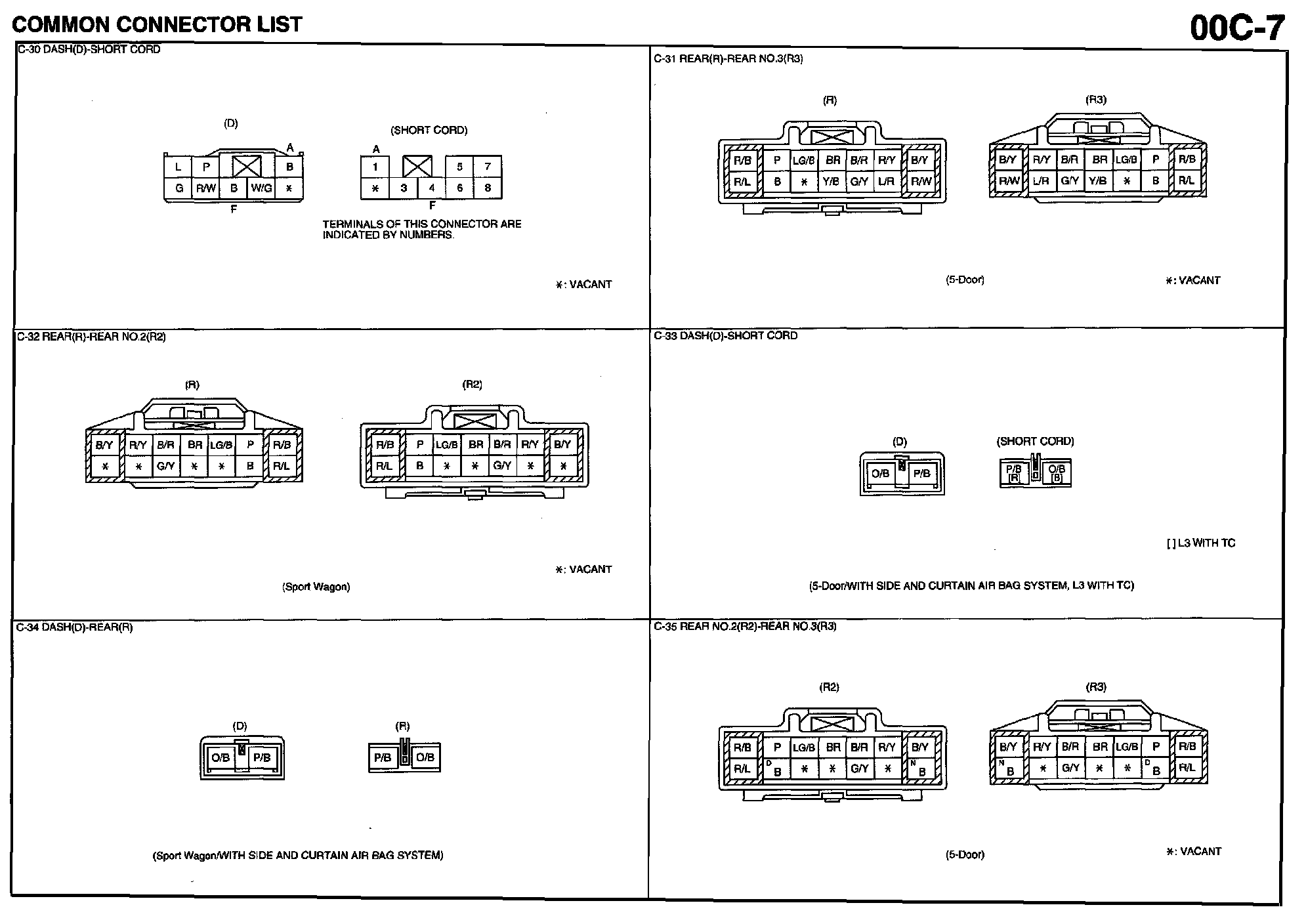

C-30 to C-35

C-30 to C-35:
