Clutch, M/T

CLUTCH LOCATION INDEX

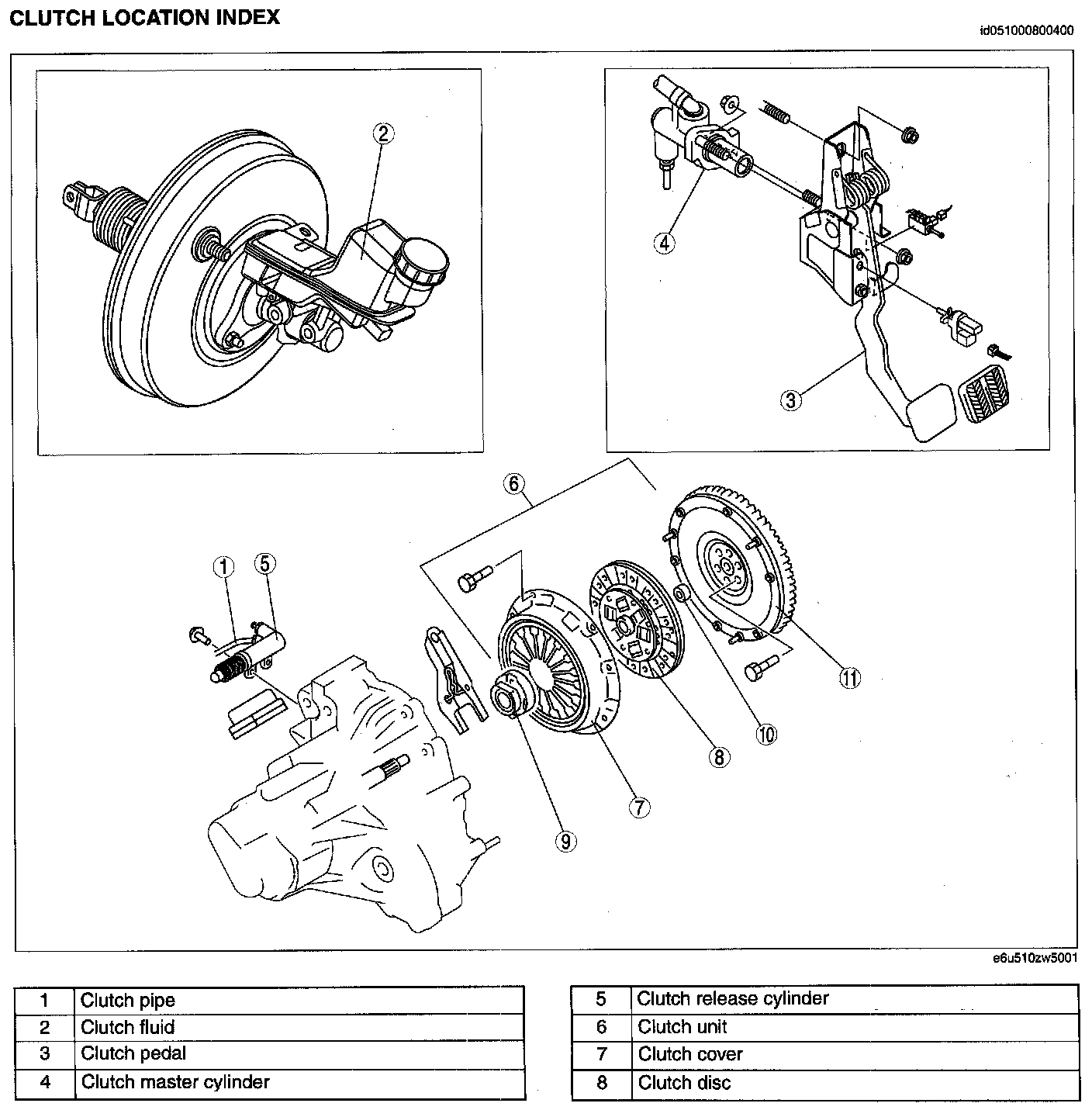

Clutch Location Index (Part 1):




Clutch Location Index (Part 2):
