Removal and Replacement

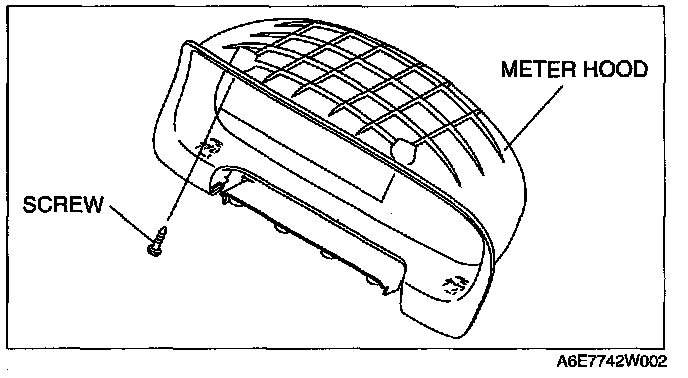

METER HOOD REMOVAL/INSTALLATION

1. Remove the screws.
2. Pull the meter hood outward, then detach the column cover.
3. Install in the reverse order of removal.
