[FS5A-EL]

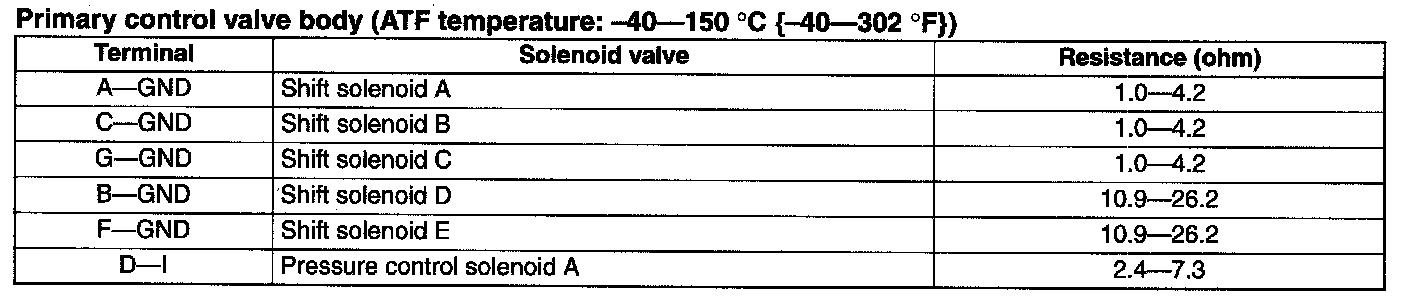

Primary control valve body (ATF temperature: -40-150 °C (-40-302 °F))

Primary Control Valve Body:




Secondary Control Valve Body:
