[FS5A-EL]

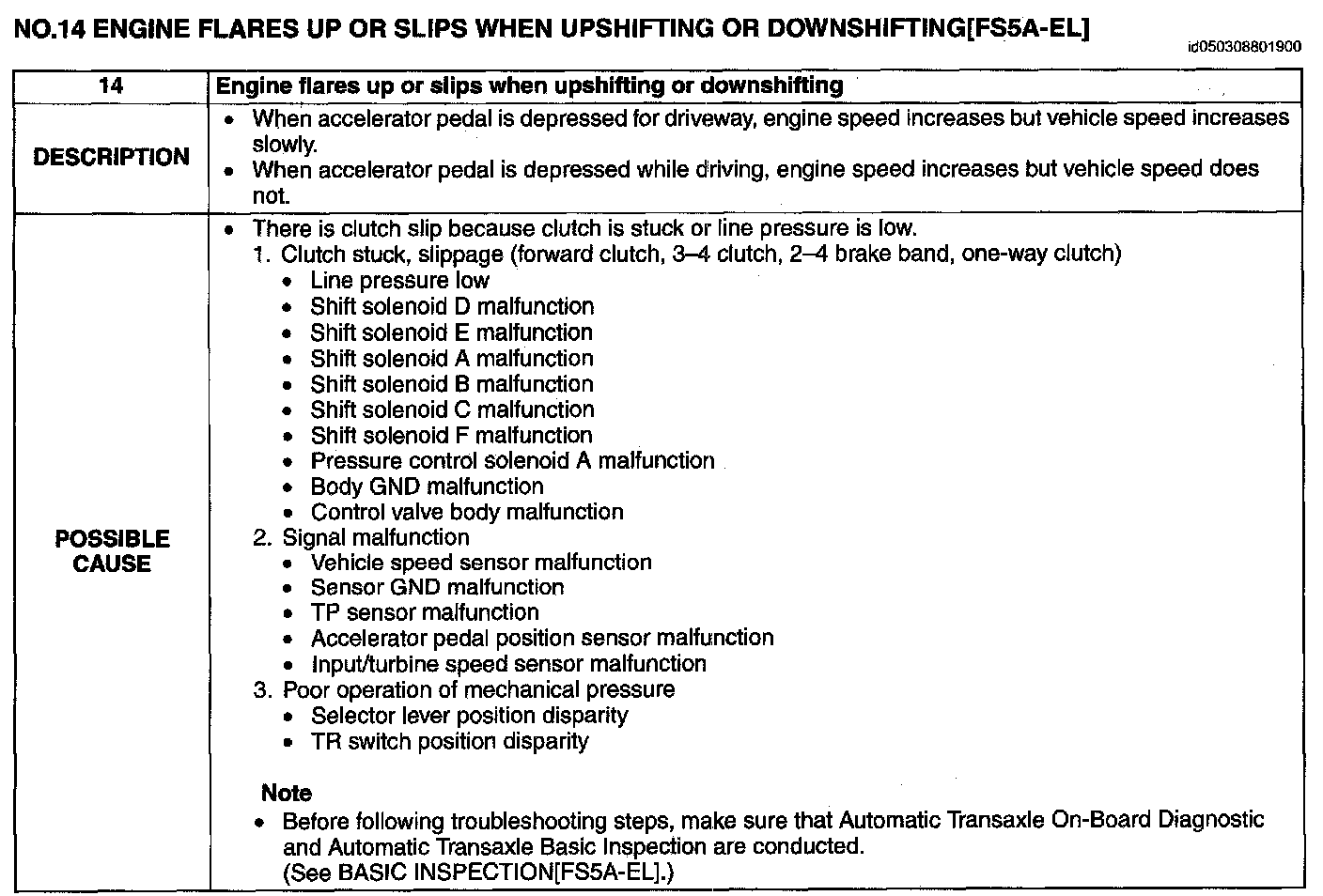

NO.14 ENGINE FLARES UP OR SLIPS WHEN UPSHIFTING OR DOWNSHIFTING [FS5A-EL]

NO.14 ENGINE FLARES UP OR SLIPS WHEN UPSHIFTING OR DOWNSHIFTING [FS5A-EL]:





Diagnostic Procedure

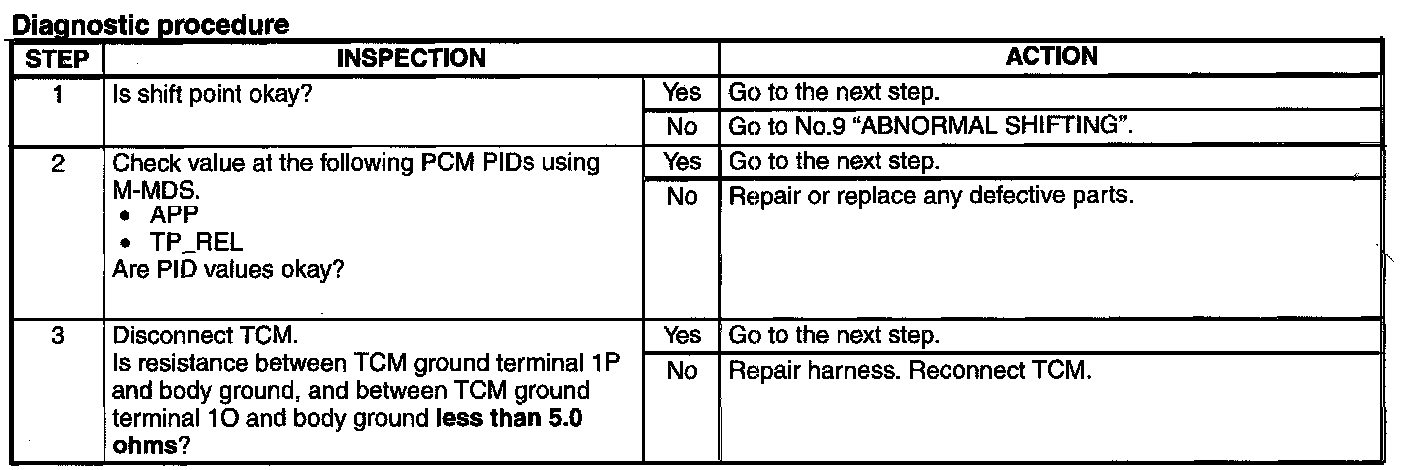

Step 1-Step 3:




Step 4-Step 5:
