Pinout Values and Diagnostic Parameters

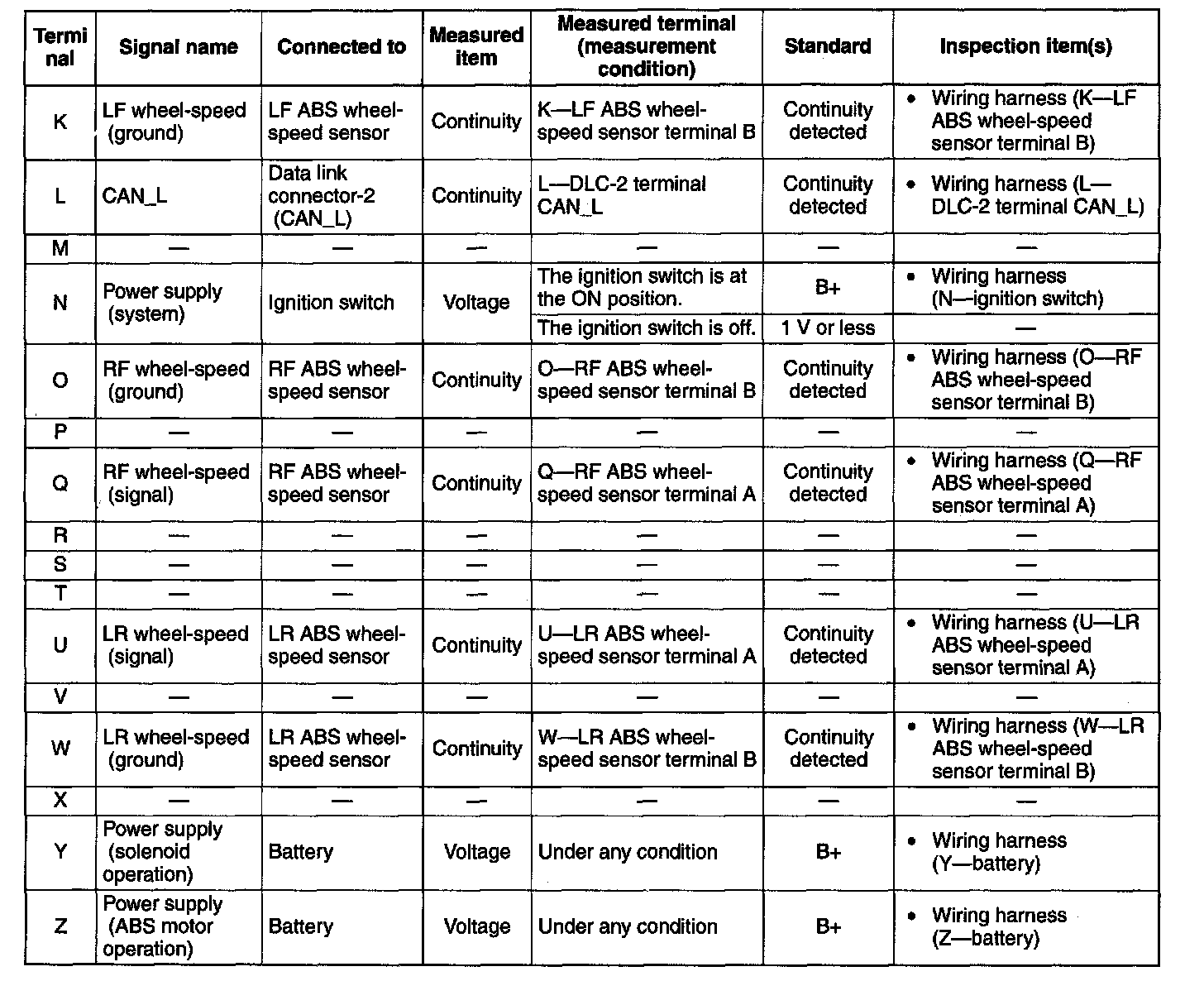

Terminal Voltage Table (Reference)




Terminal Voltage Table (Reference) (Part 2):
