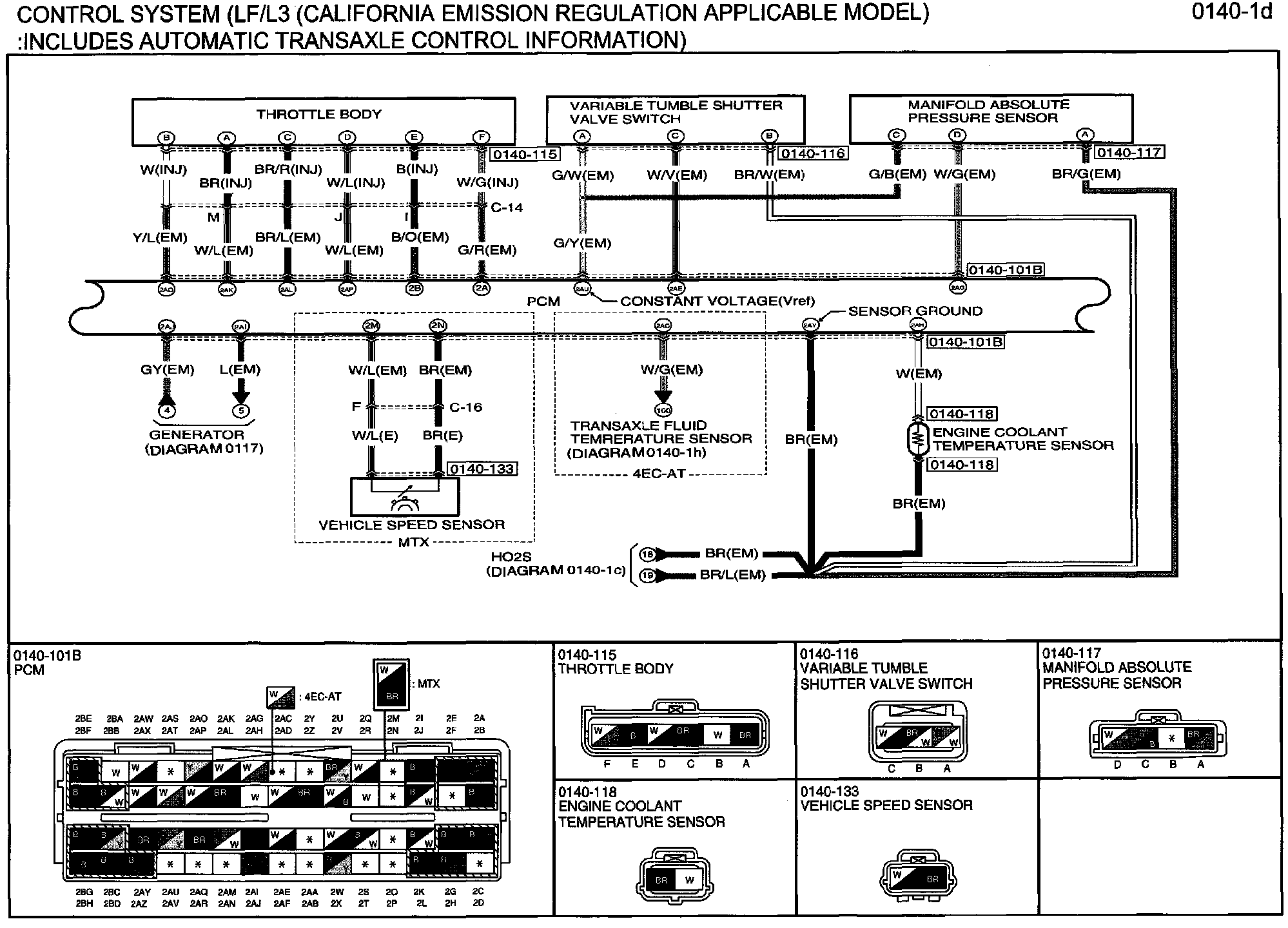

Diagram 0140-1d (Control System (Includes Automatic Transaxle Control Information))

Diagram 0140-1d:
