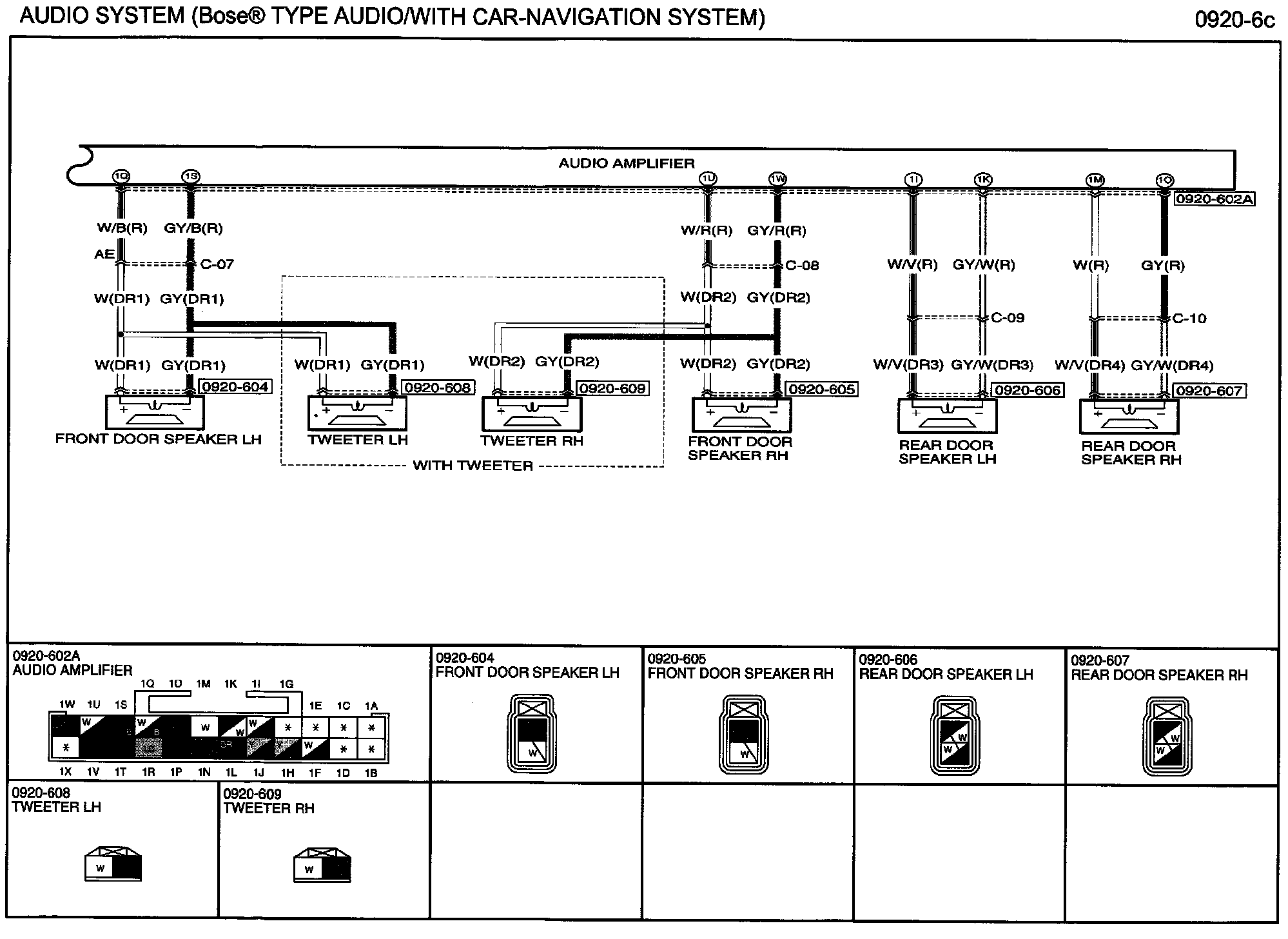

Diagram 0920-6c (Audio System (Bose(R) Type Audio/With Car-Navigation System))
Diagram 0920-6c (Audio System (Bose(R) Type Audio/With Car-Navigation System))
Diagram 0920-6c:
